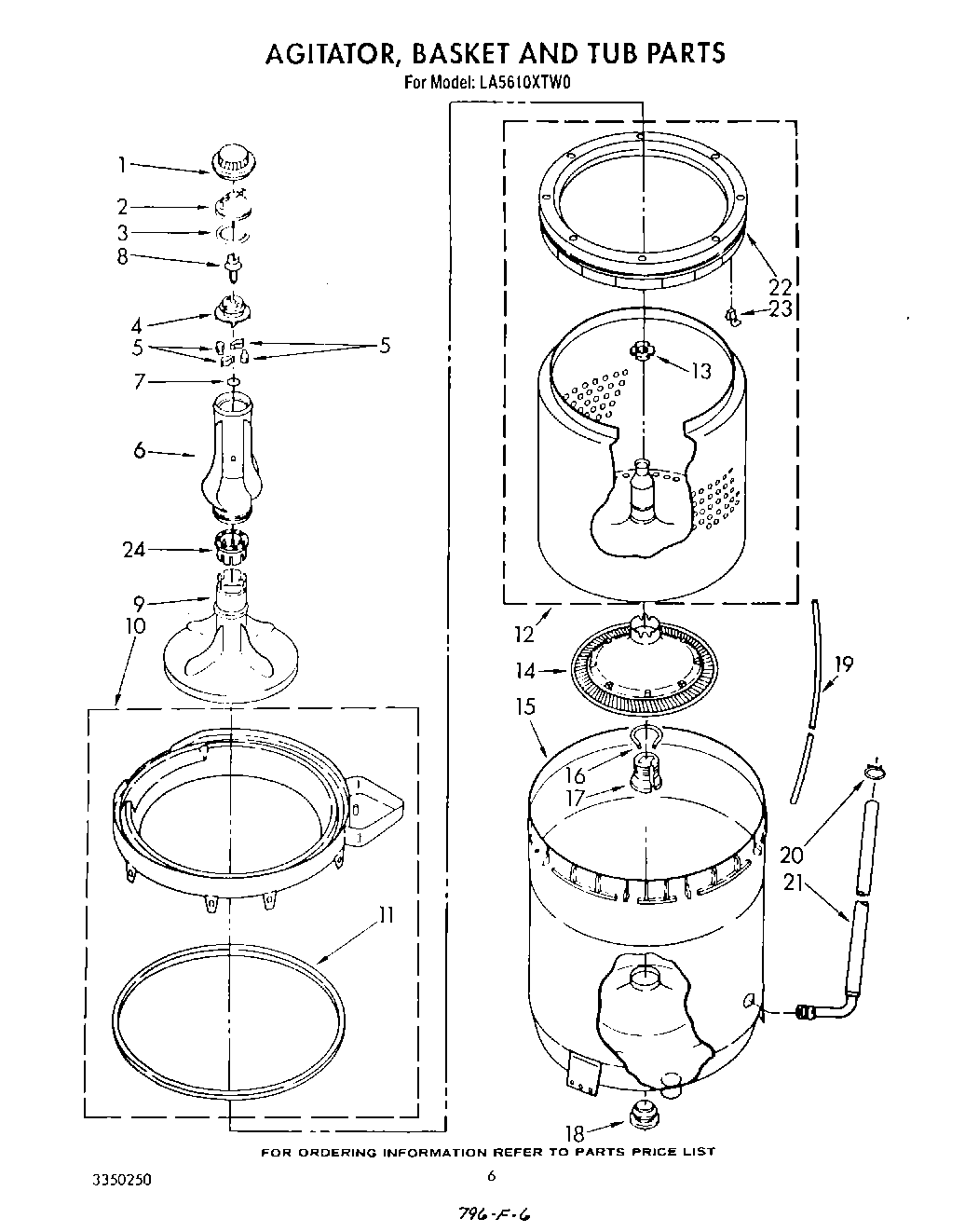

LA5610XTW0 04 – AGITATOR, BASKET, AND TUB

LA5610XTW0 04 – AGITATOR, BASKET, AND TUB

Written by

in

LA5610XTW0 04 – AGITATOR, BASKET, AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4285811 Whirlpool Washer Agitator Repair Kit
580040 Whirlpool Washer Agitator Dog Kit
6WP3349019 Whirlpool Upper Agitator
7Seal, Agitator
8WP358237 Whirlpool Agitator Bolt
9WP3350830 Whirlpool Agitator Assembly
10Tub Ring & Gasket
11WP3359586 Whirlpool Tub Seal
12Basket & Balance Ring
13WP21366 Whirlpool Spanner Nut
14285868 Whirlpool Washer Filter Plug Kit
15Tub
16Lock, Filter
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20WP596669 Whirlpool Hose Clamp
21Hose, Bleach
22WP8519815 Whirlpool Washer Balance Ring Clip
23WP3956205 Whirlpool Balance Ring
24285587 Whirlpool Thrust Washer
