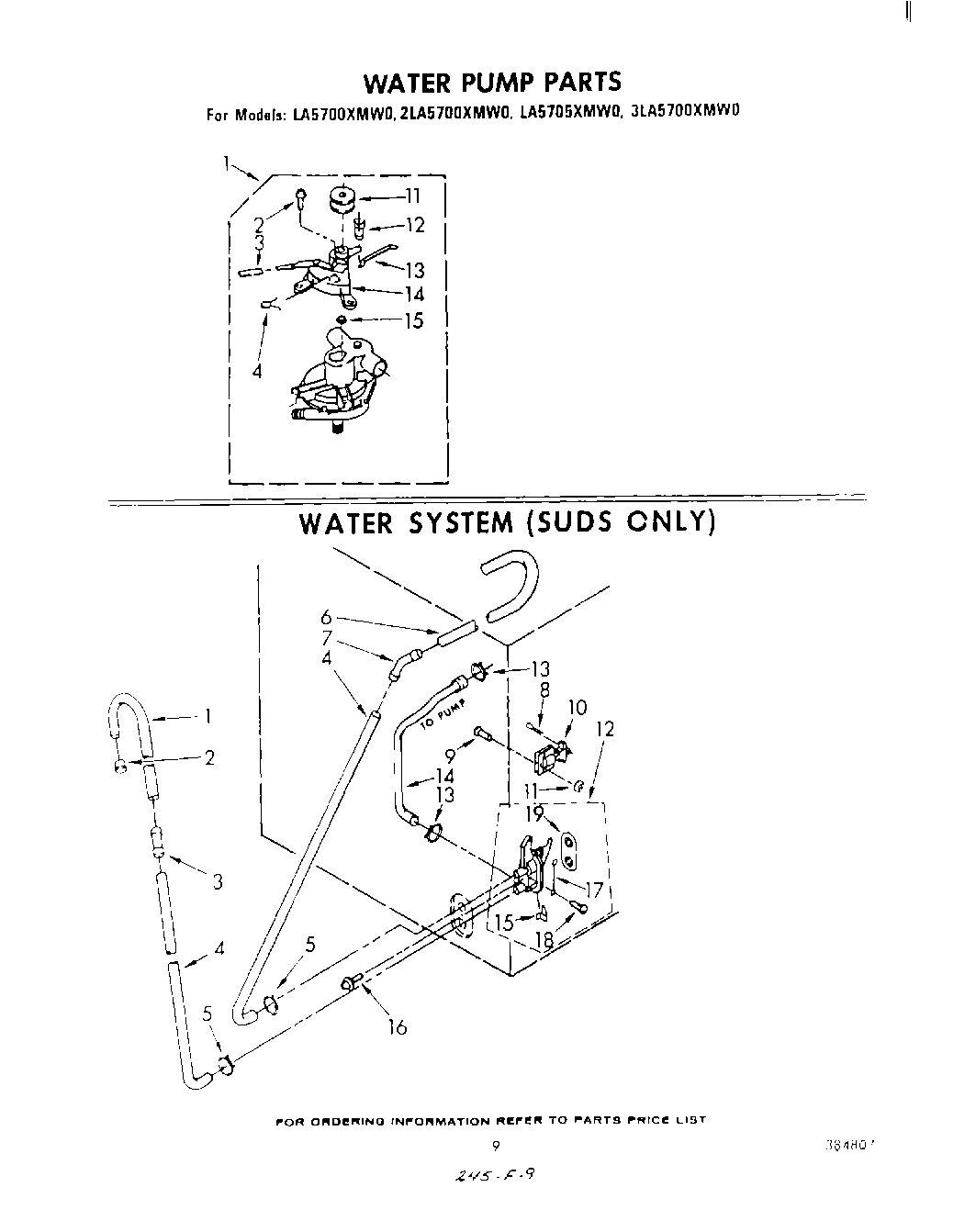

LA5700XMW0 06 – WATER PUMP , WATER SYSTEM (SUDS ONLY)

Products

PositionProduct
1Hose, Gooseneck
1Pump Assembly (Suds) (4 Port)
1Pump Assembly
2WP273556 Whirlpool Screw
2Strainer, Hose
3WP16272 Whirlpool Hose Coupling
3Sleeve
4Spring, Toggle
496746 Whirlpool Drain Hose Assembly
5WP356138 Whirlpool Hose Clamp
6WP96743 Whirlpool Hose
7Connector, Hose
8Pin, Cotter (1/8 x 3/4)
9Rivet
10Solenoid
11WP90296 Whirlpool Clip
11Pulley
12Two-Way Valve
12Lever, Valve
13Rod, Connecting
13WP285655 Whirlpool Hose Clamp
14Hose, Pump To Valve
14Bearing Block Assembly
15Clip, Retainer
15Wick, Oil
16Screw & Washer
17Strap, Ground
18WP90767 Whirlpool Screw
19Diaphragm, Valve
