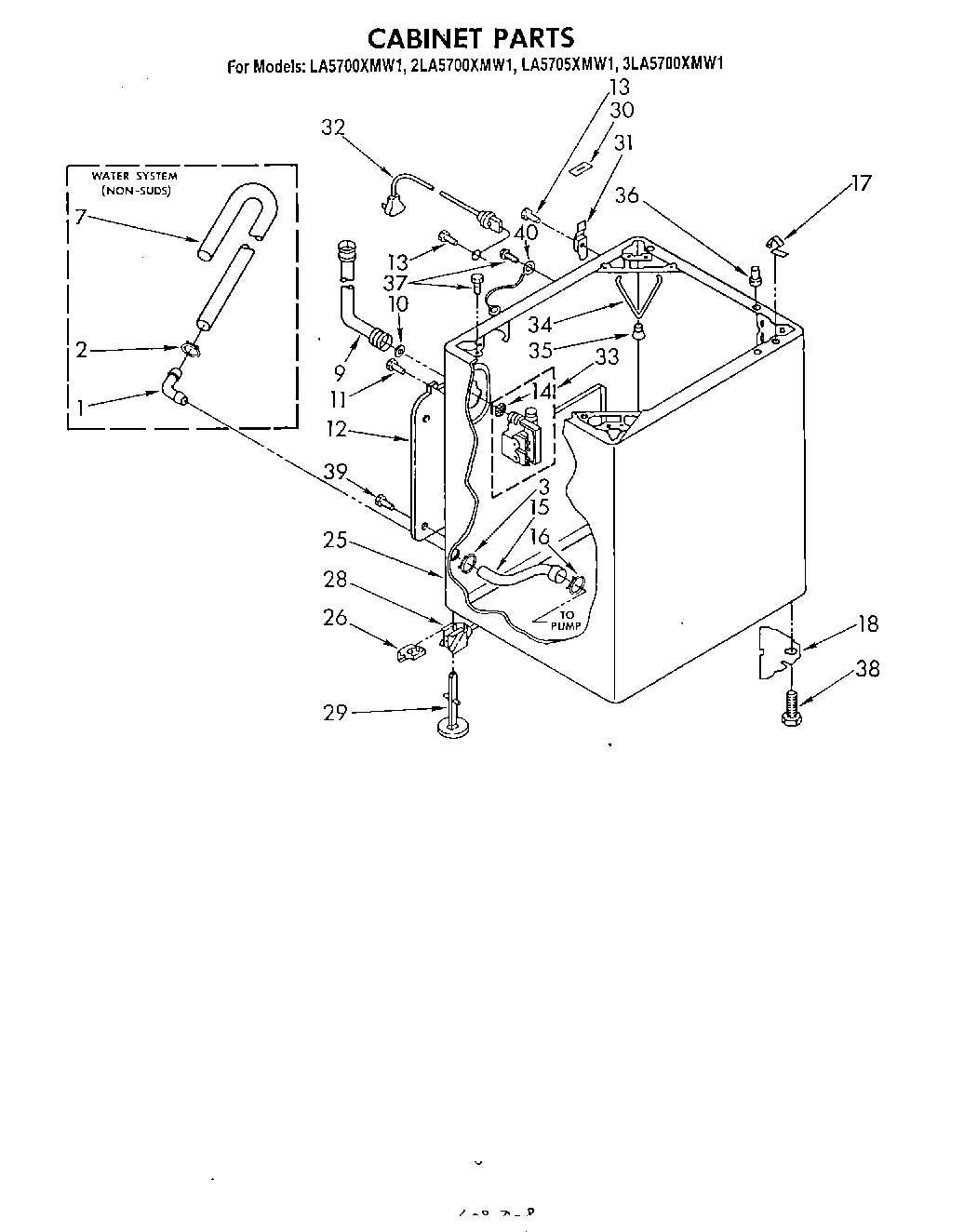

LA5700XMW1 05 – CABINET

Products

PositionProduct
285874 Whirlpool Valve Assembly
1Connector, Hose
2WP356138 Whirlpool Hose Clamp
7WP96743 Whirlpool Hose
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3390631 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
15Hose, Pump Discharge
16WP285655 Whirlpool Hose Clamp
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (Almond)
25Cabinet (Golden Harvest)
25Cabinet
25Cabinet (Toast)
25Cabinet (Platinum)
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
3018849 Whirlpool Pad
31Hinge, R.H.
31Hinge, L.H.
32Cord, Power (60 Hz.)
32Cord, Power (240 Volt) (Use W/Model 3LA5700XMW1)
33Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
33Valve, Mixing (Alt.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40WPL 364089
