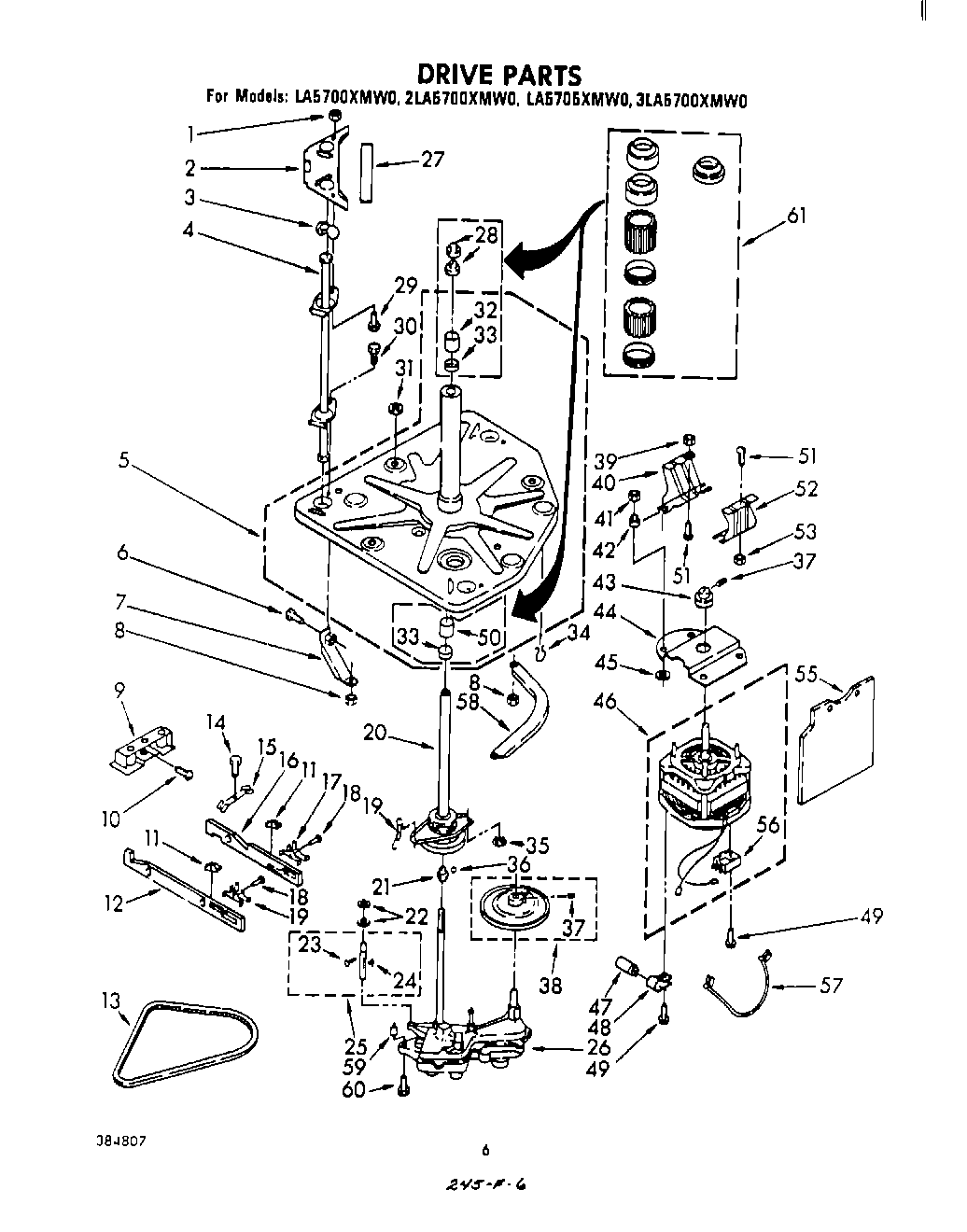

LA5705XMW0 04 – DRIVE

Products

Position	Product
	WPL 362190
1	90984 Whirlpool Nut
2	Cover, Gusset (L.F.)
2	COVER, GUSSET (R.R.)
2	Cover, Gusset (L.R.)
3	Ball, Suspension (6)
4	Rod, Suspension (3)
5	Baseplate & Centerpost
6	WP3400516 Whirlpool Screw
7	Brace, Baseplate
8	Nut, 5/16-24
9	Magnet
9	Magnet (240 Volts) (Use W/3CFA2000W6)
10	Screw, Taper End
11	Guide, Cam Bar
12	Cam, Bar Spin
13	WP95405 Whirlpool Belt
14	Screw, 1/4-28 x 1/2
15	Spring, Brake
16	Cam, Agitator & Pump
17	Plunger
18	Rivet
19	Spring, Brake Yoke
20	Basket Drive & Brake (Refer To Page 9 For Further Breakdown)
21	Support, Spin Tube
22	WP120393 Whirlpool Washer Assembly
23	Pin, Gear Fork Shaft
24	Roller, Gear Fork Shaft
25	Shaft, Basket Clutch
26	Gearcase (Complete)
27	Pad, Gusset Cover (4)
28	WP8577376 Whirlpool Seal
29	Bolt, 5/16 x 1 (3)
29	Bolt, 5/16 x 5/8 (2)
29	Bolt, Snubber (1)
30	Bolt, 5/16-24
31	Gasket, Tub (7)
32	WP8546455 Whirlpool Bearing
33	W11095997 Whirlpool Seal
34	16515 Whirlpool Clip
35	Retainer, Brake Yoke
36	Ball
37	Setscrew, 5/16-18 x 1/2
38	Pulley, Main Drive
39	WP358160 Whirlpool Nut
40	Bracket, Motor Mounting
41	Nut (4)
42	Grommet, Motor Bracket (4)
43	WPL 93219
43	Pulley, Motor (60 Hz.)
44	Shield, Motor (Upper)
45	WPL 92217
46	Motor (General Elect
46	WPL 357282
46	WPL 660198
46	Motor (Emerson) (Alternate) 60 Hz.
47	CAPACITOR
48	357030 Whirlpool Clamp
49	WP3390631 Whirlpool Screw
50	WPL 354195
51	WPL 98537
52	WPL 93549
53	WPL 95721
55	WPL 357571
56	WPL 359642
56	WPL 362738
57	WPL 370950
58	WPL 351500
58	WPL 351499
59	WPL 16062
60	WPL 90877
61	WPL 285134
