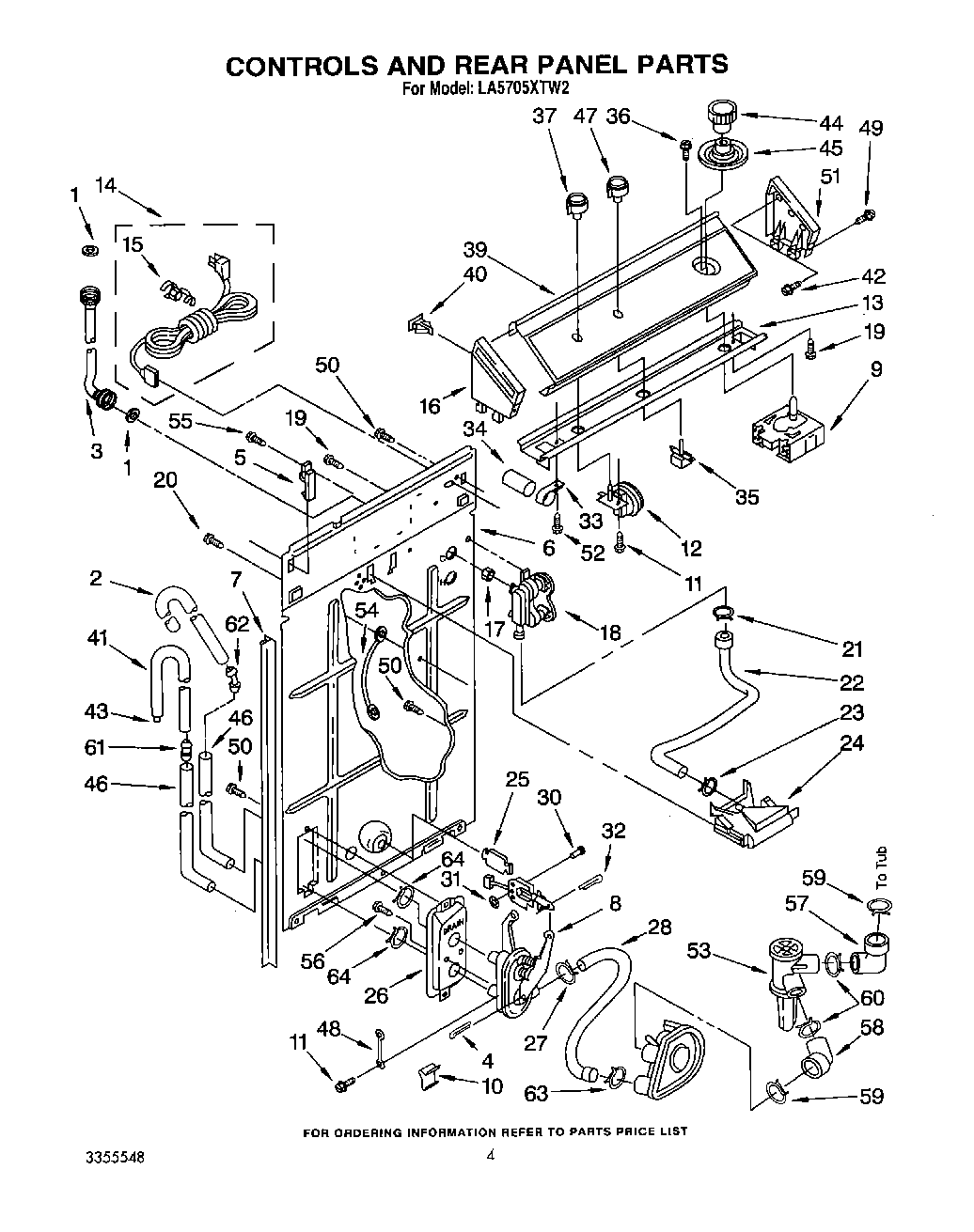

LA5705XTF2 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP96743 Whirlpool Hose
3	Hose, Water Inlet (2) (Alt.)
3	WP89503 Whirlpool Washer Fill Hose
4	Pin
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	Valve, 2-Way (Diaphragm 358317)
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Clip, Retainer
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	Connector, Drain Hose
27	WP285655 Whirlpool Hose Clamp
28	Hose, Pump To Drain Connector
29	Solenoid, Suds Valve
30	Rivet
31	WP90296 Whirlpool Clip
32	Pin, Cotter (1/8 x 3/4)
33	357030 Whirlpool Clamp
34	CAPACITOR
35	Switch, Water Temperature (Alt.)
35	Switch, Water Temperature
35	Switch, Water Temperature (Alt.)
36	WP356418 Whirlpool Screw
39	Panel, Console
40	WP689559 Whirlpool Nut
41	Hose, Gooseneck
42	WPL 355326
43	Strainer, Hose
44	WPL 3347726
45	WPL 64140
46	96746 Whirlpool Drain Hose Assembly
47	WPL 386636
48	Strap, Ground
49	WPL 64211
50	WP3390631 Whirlpool Screw
51	WPL 63795
52	SCREW
53	Protector, Valve
54	WPL 364089
55	WP308685 Whirlpool Microwave Screw
56	Screw (2)
57	Connector, To Tub
58	Connector, To Pump
59	WP371502 Whirlpool Clamp
60	WP616099 Whirlpool Clamp
61	WP16272 Whirlpool Hose Coupling
62	Connector, Hose
64	WP356138 Whirlpool Hose Clamp
