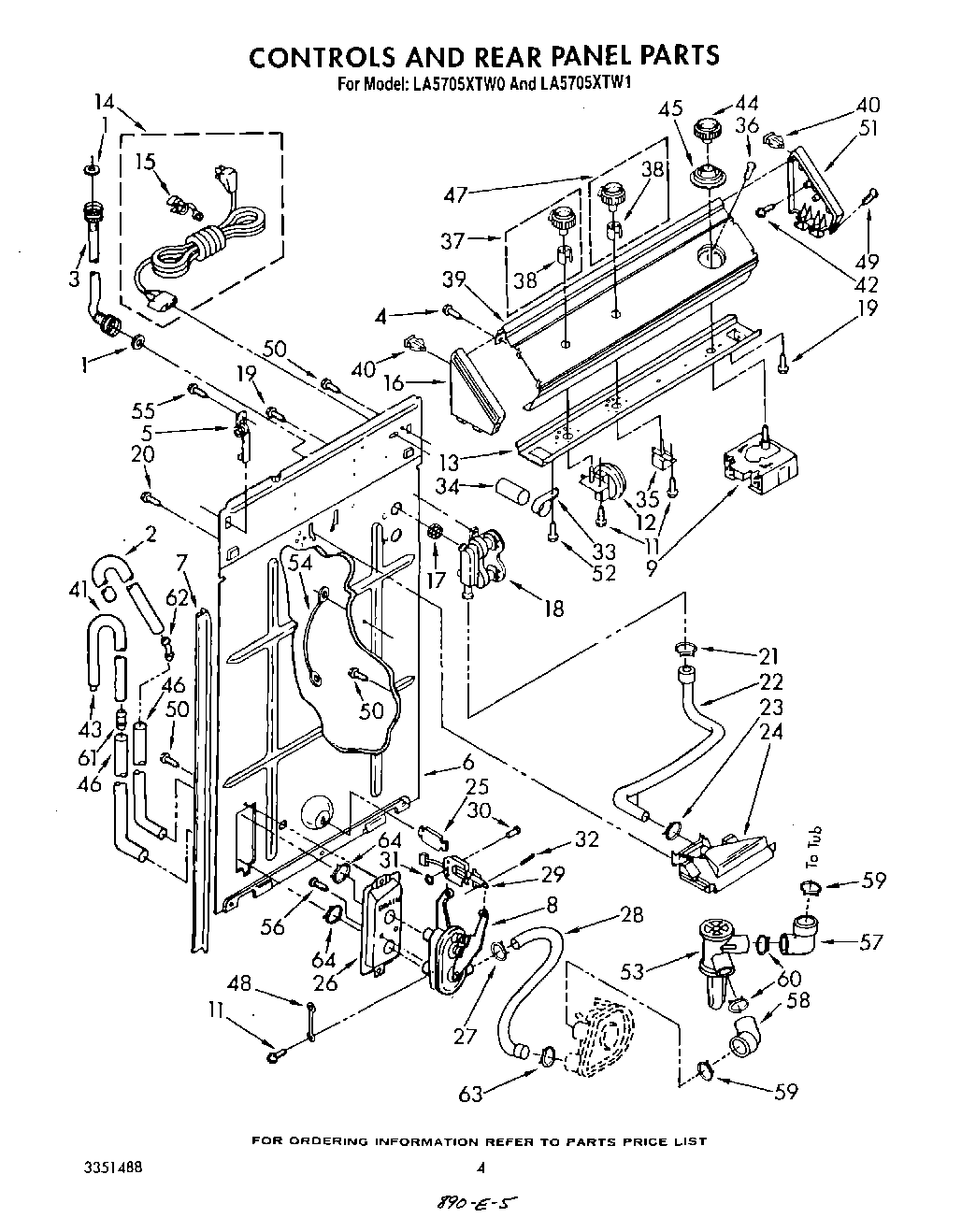

LA5705XTG1 03 – CONTROLS AND REARadmin2025-04-26T12:37:46+00:00LA5705XTG1 03 – CONTROLS AND REAR
Products
| Position | Product |
|---|
| 1 | WP16123 Whirlpool Washer |
| 2 | WP96743 Whirlpool Hose |
| 3 | WP89503 Whirlpool Washer Fill Hose |
| 3 | Hose, Water Inlet (2) (Alt.) |
| 5 | Hinge, Console (2) |
| 6 | Panel, Rear |
| 7 | WP62747 Whirlpool Pad |
| 8 | Valve, 2-Way (Diaphragm 358317) |
| 9 | Timer, Control (60 Hz.) (Motor Not A Service Part) |
| 10 | Motor, Timer |
| 11 | WP90767 Whirlpool Screw |
| 12 | Switch, Water Level |
| 13 | Bracket, Control |
| 14 | Cord, Power |
| 15 | Strain Relief, Power Cord |
| 16 | Cap, End (L.H.) |
| 17 | WP96160 Whirlpool Washer Inlet Valve Screen |
| 18 | 285805 Whirlpool Washer Water Inlet Valve |
| 19 | WP3351614 Whirlpool Screw |
| 21 | WP596669 Whirlpool Hose Clamp |
| 22 | HOSE |
| 24 | WP3347034 Whirlpool Vacuum Break |
| 25 | WP8519200 Whirlpool Support Assembly |
| 26 | Connector, Drain Hose |
| 27 | WP285655 Whirlpool Hose Clamp |
| 28 | Hose, Pump To Drain Connector |
| 29 | Solenoid, Suds Valve |
| 33 | 357030 Whirlpool Clamp |
| 34 | CAPACITOR |
| 35 | Switch, Water Temperature (Alt.) |
| 35 | Switch, Water Temperature |
| 35 | Switch, Water Temperature (Alt.) |
| 36 | WP356418 Whirlpool Screw |
| 38 | WP688805 Whirlpool Spring Clip |
| 39 | Panel, Console |
| 40 | WP689559 Whirlpool Nut |
| 41 | Hose, Gooseneck |
| 42 | WPL 355326 |
| 43 | Strainer, Hose |
| 44 | WPL 3347726 |
| 45 | WPL 64140 |
| 46 | 96746 Whirlpool Drain Hose Assembly |
| 47 | WPL 386636 |
| 49 | WPL 64211 |
| 50 | WP3390631 Whirlpool Screw |
| 51 | WPL 63795 |
| 52 | SCREW |
| 53 | Protector, Valve |
| 54 | WPL 364089 |
| 55 | WP308685 Whirlpool Microwave Screw |
| 56 | Screw (2) |
| 57 | Connector, To Tub |
| 58 | Connector, To Pump |
| 59 | WP371502 Whirlpool Clamp |
| 60 | WP616099 Whirlpool Clamp |
| 61 | WP16272 Whirlpool Hose Coupling |
| 62 | Connector, Hose |
| 64 | WP356138 Whirlpool Hose Clamp |
