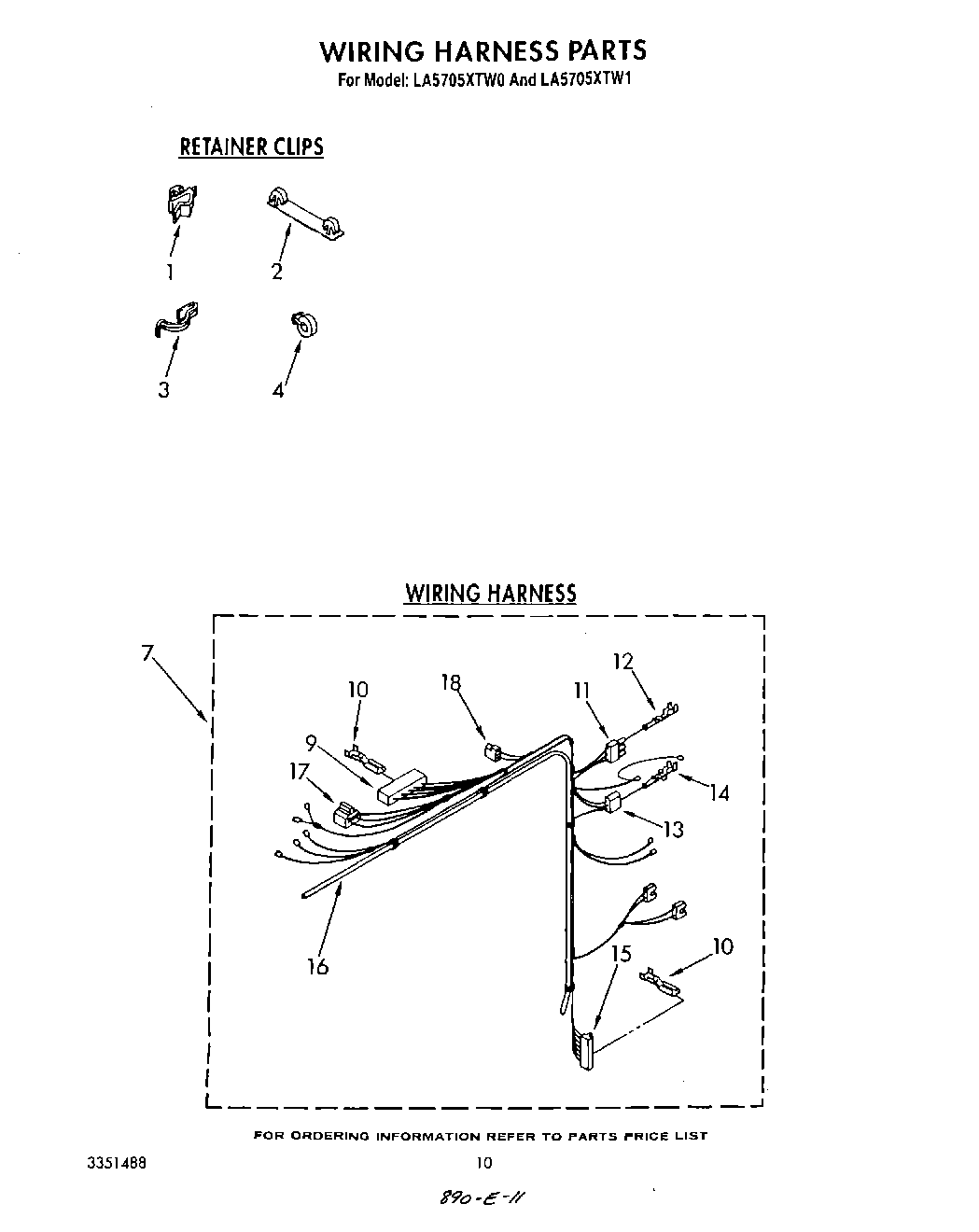

LA5705XTW1 08 – WIRING HARNESSadmin2025-04-26T12:37:16+00:00LA5705XTW1 08 – WIRING HARNESS ProductsPositionProduct1Clip, Harness2WP389379 Whirlpool Retainer38528351 Whirlpool Clip48559320 Whirlpool Clip7Wiring Harness & Pressure Switch Hose9W10876590 Whirlpool Connector10Terminal, Female11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle12WP94614 Whirlpool Terminal13353424 Whirlpool Connector14WP596797 Whirlpool Terminal15WP62505 Whirlpool Connector16WP353244 Whirlpool Hose17Block, Disconnect18Receptacle, Latching (2-Way) (Uses Terminal 94614)
