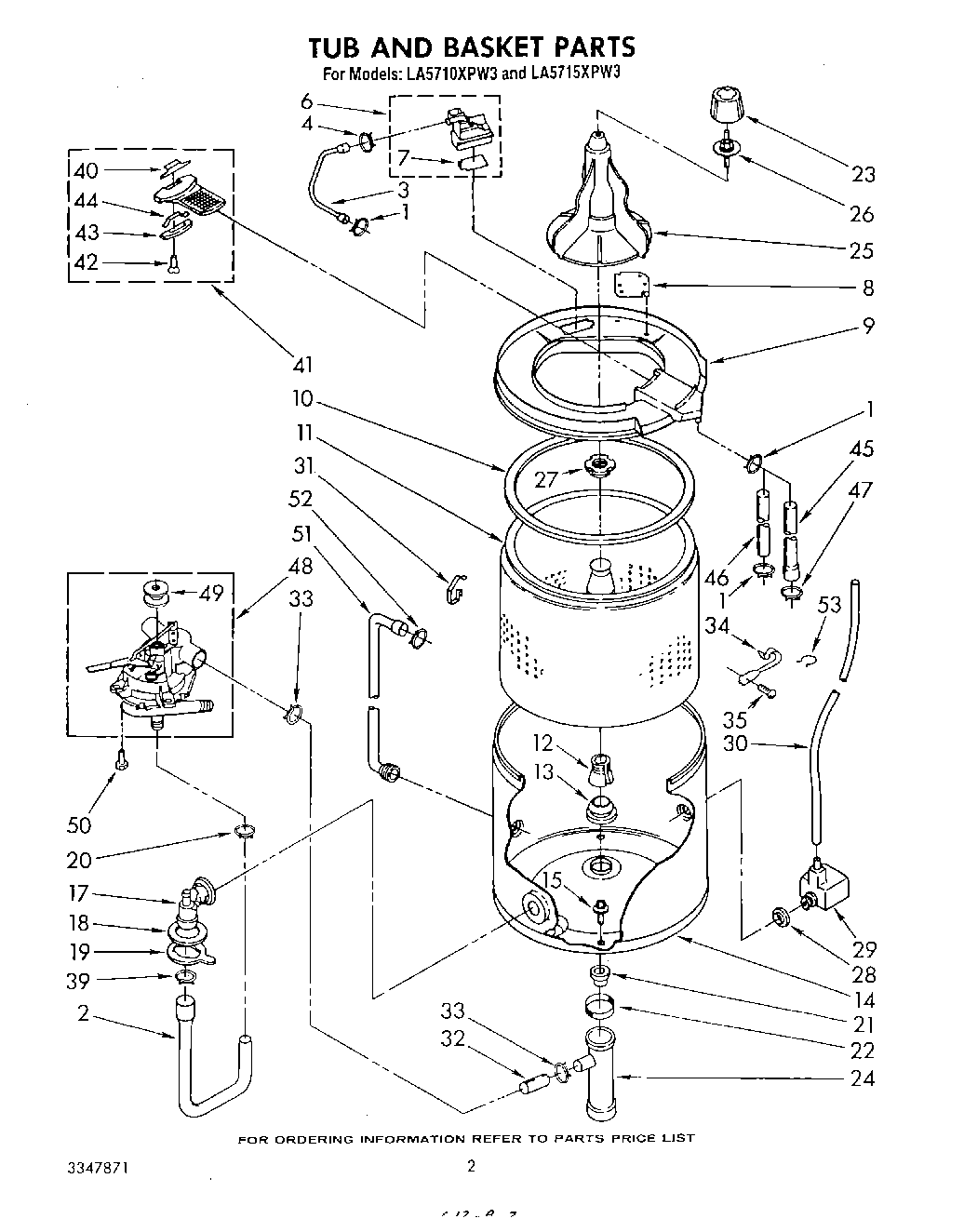

LA5710XPW3 02 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
2	Hose, Recirculating
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
8	Plate, Snubber
9	Ring & Filter, Tub (Includes Illus. 8 & 41)
10	Seal, Tub Ring
11	Basket
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
14	Tub
15	Screw & Washer, Tub (4)
17	Funnel, Drain
18	Gasket
19	Lockwasher
21	Hose, Tub Outlet
22	Clip, Hose
23	Cap, Agitator
24	Manifold
25	Agitator
26	Stud, Agitator Shaft
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Clip, Tub Ring (4)
32	Hose
34	Bracket, Hose
35	W11573574 Whirlpool Screw
39	WP356138 Whirlpool Hose Clamp
40	Latch
41	Filter
42	Screw (2)
43	Retainer
44	Spring
45	Hose, Pump To Filter (Suds)
46	Hose, Pump To Filter
47	WP285655 Whirlpool Hose Clamp
48	Pump Assembly (Suds) (4 Port)
48	Pump Assembly
49	Pulley
50	386011 Whirlpool Screw
51	Hose, Dispenser
53	Clip, Harness (3)
