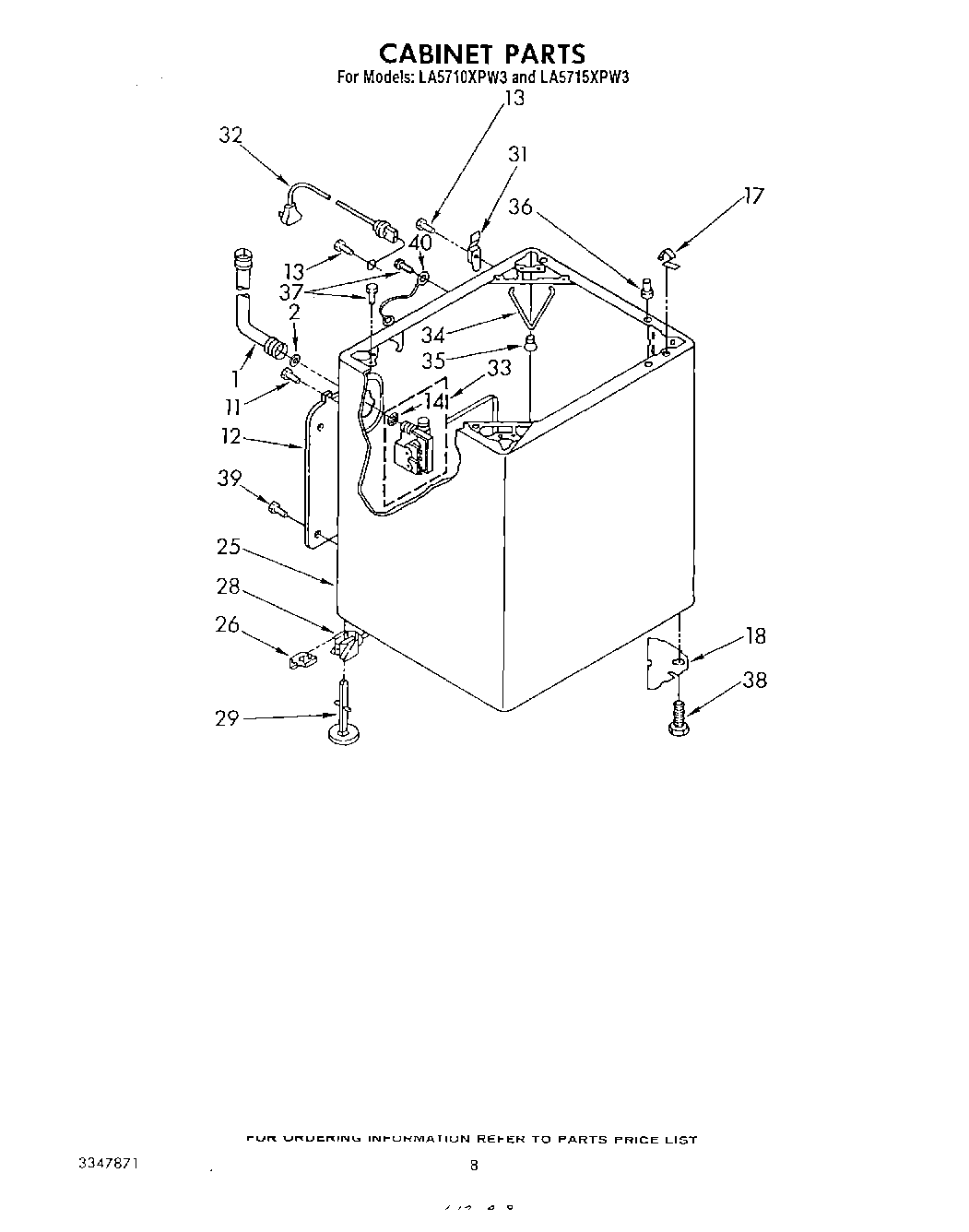

LA5715XPW3 05 – CABINET

Products

PositionProduct
1WP89503 Whirlpool Washer Fill Hose
2WP16123 Whirlpool Washer
11WP3390631 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (Golden Harvest)
25Cabinet (Almond)
25Cabinet (Toast)
25Cabinet (Platinum)
25Cabinet
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
31Hinge, R.H.
31Hinge, L.H.
32Cord, Power (60 Hz.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
33Valve, Mixing (Alt.)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40WPL 364089
