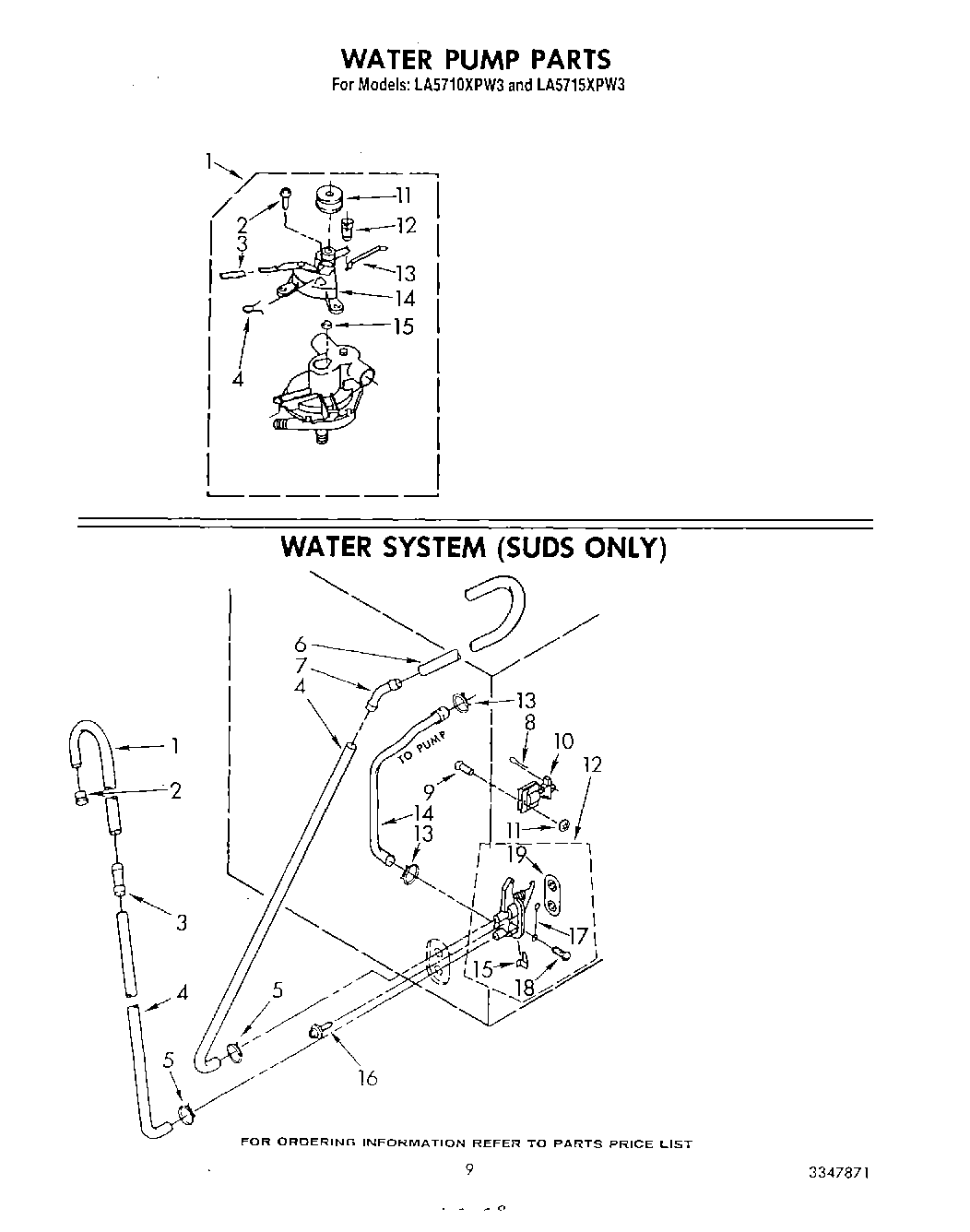

LA5715XPW3 06 – WATER PUMP , WATER SYSTEM (SUDS)

Products

Position	Product
1	Pump Assembly
1	Hose, Gooseneck
1	Pump Assembly (Suds) (4 Port)
2	WP273556 Whirlpool Screw
2	Strainer, Hose
3	WP16272 Whirlpool Hose Coupling
3	Sleeve
4	Spring, Toggle
4	96746 Whirlpool Drain Hose Assembly
5	WP356138 Whirlpool Hose Clamp
6	WP96743 Whirlpool Hose
7	Connector, Hose
8	Pin, Cotter (1/8 x 3/4)
9	Rivet
10	Solenoid
11	WP90296 Whirlpool Clip
11	Pulley
12	Two-Way Valve
12	Lever, Valve
13	Rod, Connecting
13	WP285655 Whirlpool Hose Clamp
14	Hose, Pump To Valve
14	Bearing Block Assembly
15	Clip, Retainer
15	Wick, Oil
16	Screw & Washer
17	Strap, Ground
18	WP90767 Whirlpool Screw
19	Diaphragm, Valve
