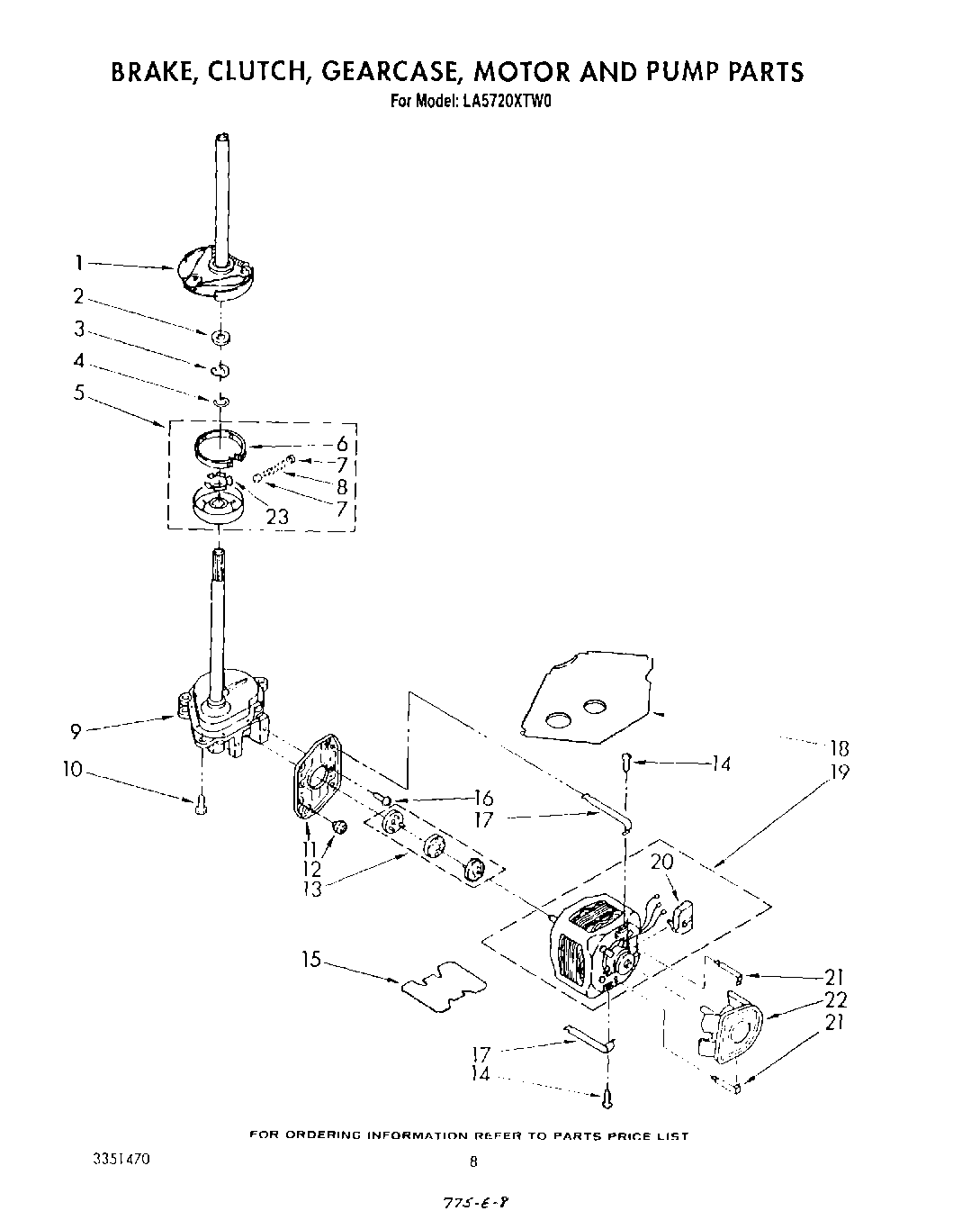

LA5720XTM0 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
7	WP62646 Whirlpool Cap
8	285790 Whirlpool Washer Clutch Band and Lining Kit
9	3360629 Whirlpool Washer Gearcase Transmission
10	Screw, Gearcase To Base (3) (5/16-24 x 3/4)
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285753A Whirlpool Washer Direct Drive Motor Coupling
14	W11573574 Whirlpool Screw
15	WP3946532 Whirlpool Shield
16	WP3400516 Whirlpool Screw
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	WP661600 Whirlpool Drive Motor
20	Switch, Main Drive Motor
21	WP8546127 Whirlpool Retainer Clip
22	WP3363394 Whirlpool Washer Drain Pump
23	WP3355454 Whirlpool Clip Assembly
