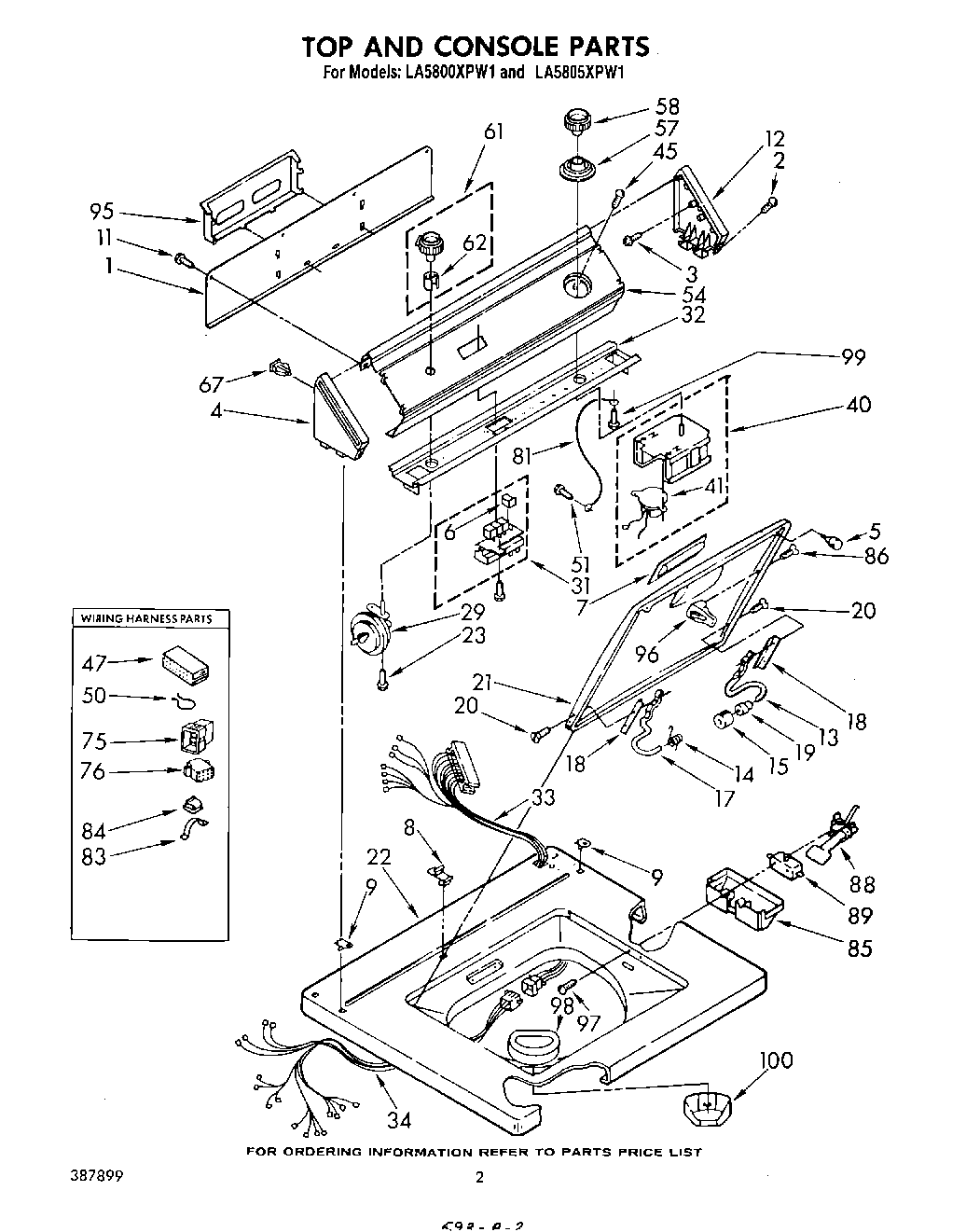

LA5800XPW1 02 – TOP AND CONSOLE

Products

Position	Product
	WPL 386884
1	Panel, Rear
2	WPL 64211
3	WPL 355326
4	Cap, End (L.H.)
5	WP9724509 Whirlpool Bumper
6	Pushbutton (4)
7	Handle, Lid (Almond)
7	Handle, Lid (White)
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (Toast)
7	Handle, Lid (Platinum)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
12	WPL 63795
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Golden Harvest)
21	Lid (Platinum)
21	Lid (Almond)
21	Lid (Toast)
21	Lid (White)
22	Top (Platinum)
22	Top (White)
22	Top (Almond)
22	Top (Toast)
22	Top (Golden Harvest)
23	WP90767 Whirlpool Screw
29	Switch, Water Level
31	Switch, Water Temperature
32	Bracket, Control
33	Harness, Console
33	Harness, Console (Suds)
34	Harness, Cabinet
34	Harness, Cabinet (Suds)
40	Timer, 60 Hz.
40	Timer, 60 Hz. Mallory (Alt.)
40	Timer, 60 Hz. C.C.A. (Alt.)
41	Motor, Timer
41	Motor, Timer
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
50	Clip, Harness (2)
54	Panel,
54	Panel, Console (Non-Suds)
57	Dial, Timer
58	Knob, Timer
61	Knob Assembly, Water Level
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
81	3184020 Whirlpool Oven Wire
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
95	Rack, Literature
96	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
98	WPL 352821
99	SCREW
100	WPL 352827
