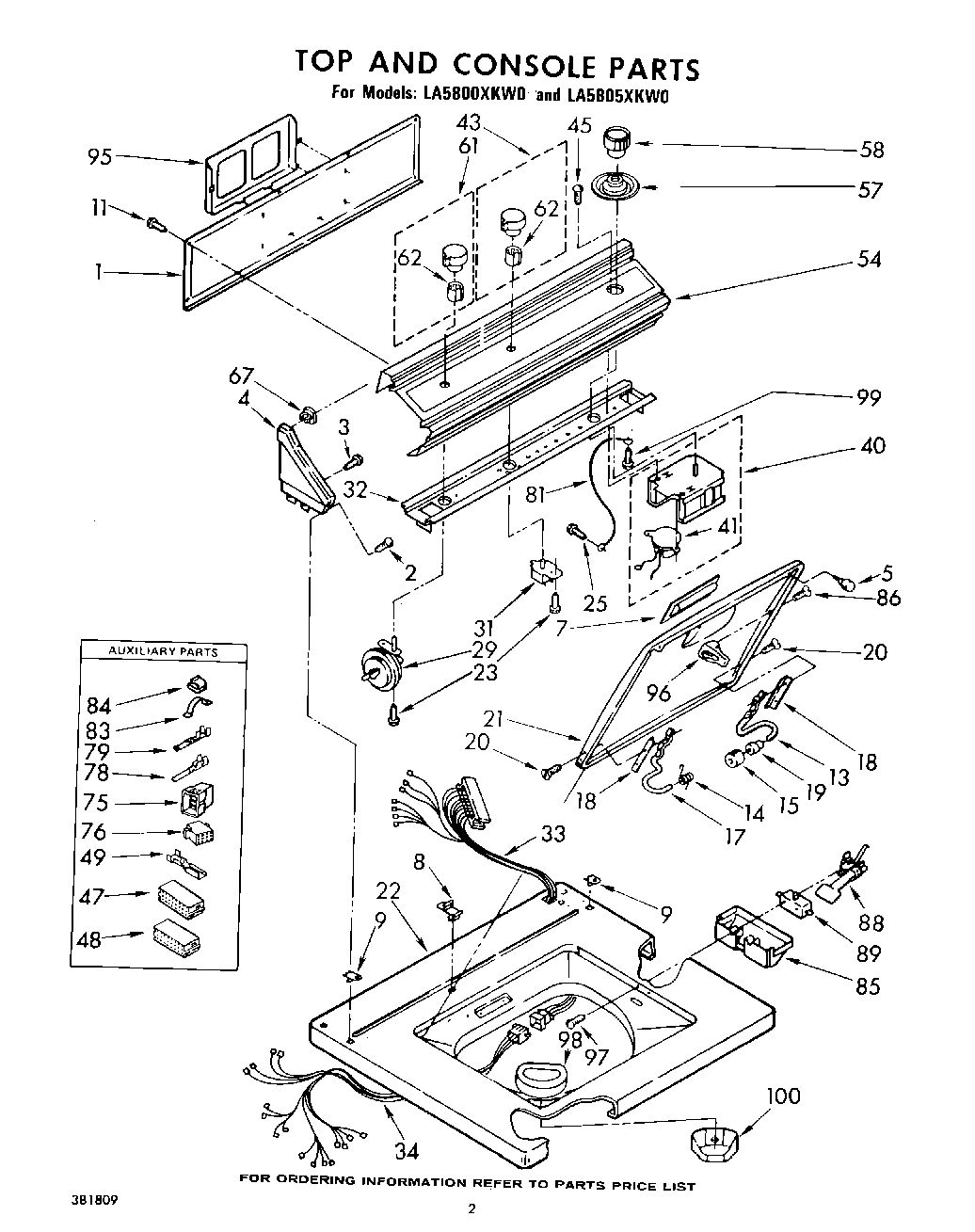

LA5805XKW0 02 – TOP AND CONSOLE

LA5805XKW0 02 – TOP AND CONSOLE

Written by

in

LA5805XKW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
4	End Cap Assembly, L.H. (New Avocado)
4	End Cap Assembly, L.H. (New Avocado)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (White)
7	Handle, Lid (Almond)
7	Handle, Lid (New Avocado)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
21	Lid (Golden Harvest)
21	Lid (New Avocado)
21	Lid (Almond)
22	Top (White)
22	Top (New Avocado)
22	Top (Golden Harvest)
22	Top (Almond)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
32	Bracket, Control
33	WPL 359327
33	+Harness, Console (Suds)
34	Harness, Cabinet
34	WPL 88916
40	Timer, 60 Hz. (C.C.A. Suds)
40	Timer, 60 Hz. (Mallory Non-Suds)
40	Timer, 60 Hz. (C.C.A. Non-Suds)
41	Use W/C.C.A. Timer
41	Motor, Timer 60 Hz.
43	Knob Assembly, Water Temperature
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 382412
54	WPL 382411
57	Dial, Timer
58	WPL 359773
61	Knob Assembly, Water Level
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	3184020 Whirlpool Oven Wire
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
95	Rack, Literature
96	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
98	WPL 352821
99	SCREW
100	WPL 352827
