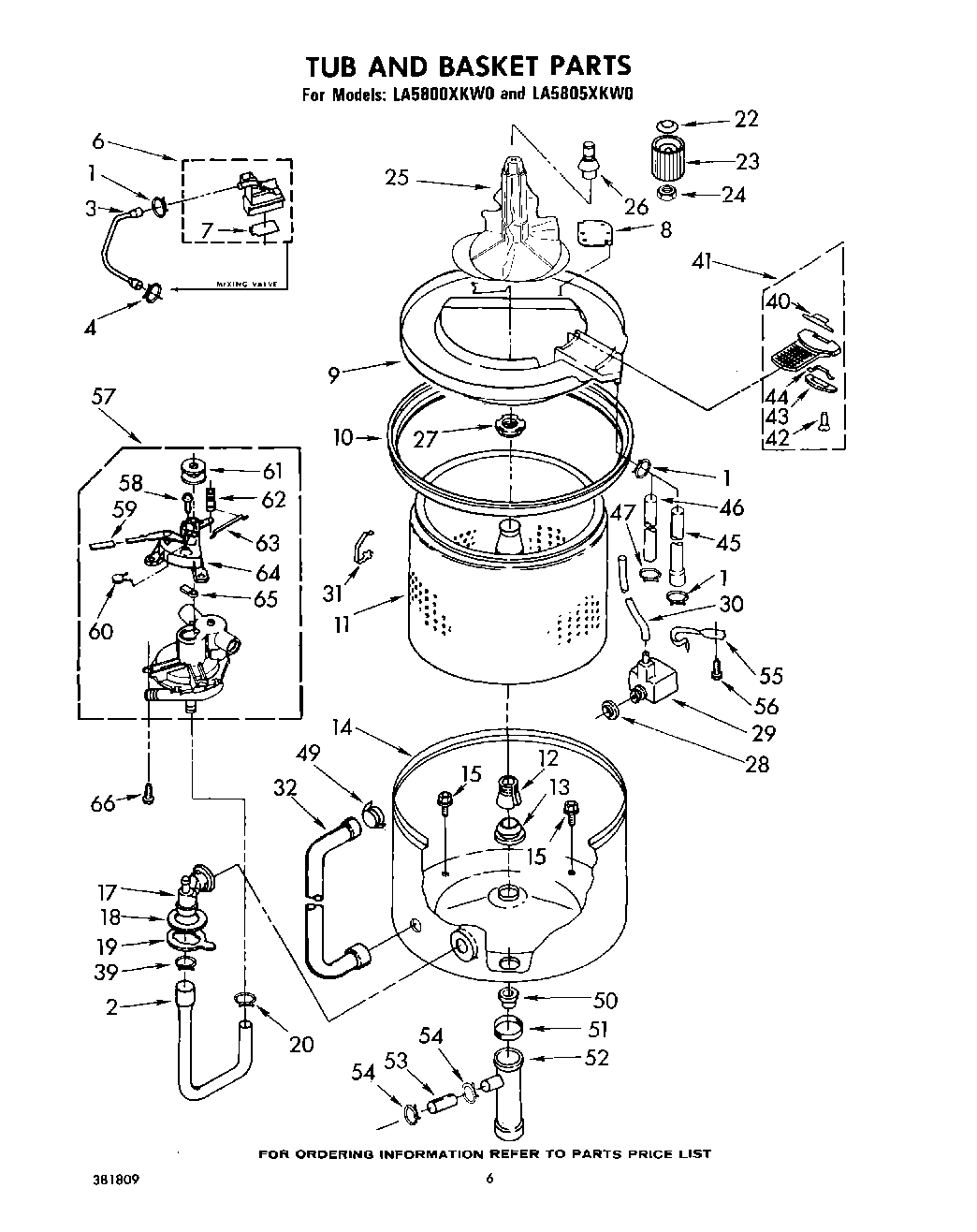

LA5805XKW0 04 – TUB AND BASKET

Products

Position	Product
1	WP596669 Whirlpool Hose Clamp
2	Hose, Recirculating
3	Hose, Water Inlet
6	Inlet, Water
7	Flapper
8	Plate, Snubber
9	Ring & Filter, Tub (Includes Illus. 8 & 41)
10	Seal, Tub Ring
11	Basket
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	Tub
14	Tub
15	Screw & Washer, Tub (4)
17	Funnel, Drain
18	Gasket
19	Lockwasher
22	Insert, Agitator Cap
23	Cap, Agitator
24	Locknut
25	Agitator & Insert Assembly
26	Stud & Washer
27	WP21366 Whirlpool Spanner Nut
28	Seal
29	Air Dome Assembly
30	WP353244 Whirlpool Hose
31	Clip, Tub Ring (2)
32	Hose, Bleach Dispenser
33	Dispenser, Rinse
39	WP356138 Whirlpool Hose Clamp
40	Latch
41	Filter
42	Screw (2)
43	Retainer
44	Spring
45	Hose, Pump To Filter
46	Hose, Pump To Filter (Suds)
47	WP285655 Whirlpool Hose Clamp
50	Hose, Tub Outlet
51	Clip, Hose
52	Manifold
53	Hose
55	Bracket, Hose
56	W11573574 Whirlpool Screw
57	Pump Assembly (Suds) (4 Port)
57	Pump Assembly
58	WP273556 Whirlpool Screw
59	Sleeve
60	Spring, Toggle
61	Pulley
62	Lever, Valve
63	Rod, Connecting
64	Bearing Block Assembly
65	Wick, Oil
66	386011 Whirlpool Screw
