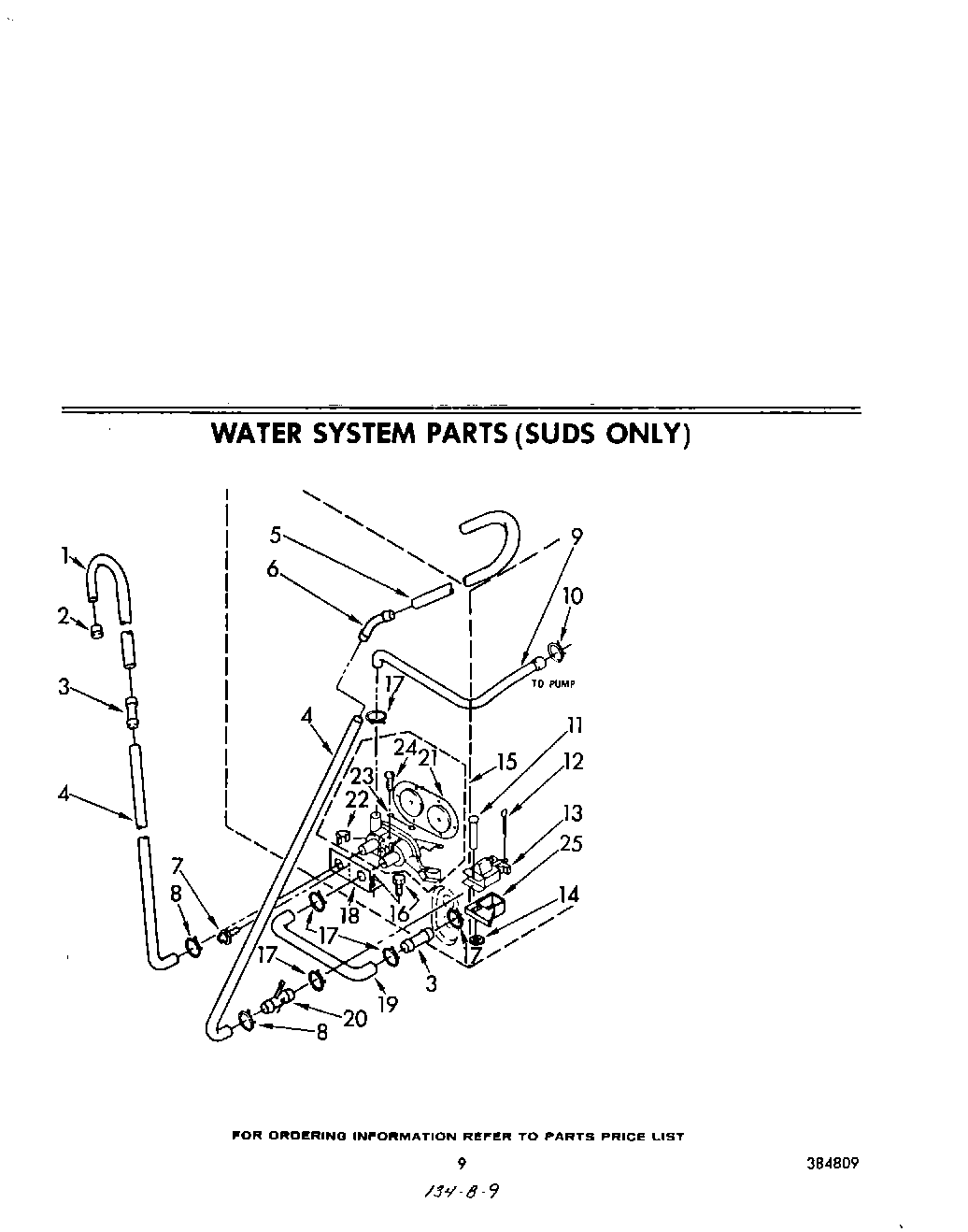

LA5805XMW0 07 – WATER SYSTEM (SUDS ONLY)

Products

Position	Product
1	Hose, Gooseneck
2	Strainer, Hose
3	WP16272 Whirlpool Hose Coupling
4	96746 Whirlpool Drain Hose Assembly
5	WP96743 Whirlpool Hose
6	Connector, Hose
7	Screw & Washer
8	WP356138 Whirlpool Hose Clamp
9	Hose, Pump To Two-Way Valve
10	WP616099 Whirlpool Clamp
11	Rivet
12	Pin, Cotter (1/8 x 3/4)
13	Solenoid
14	WP90296 Whirlpool Clip
15	Two-Way Valve
16	SCREW
17	WP285655 Whirlpool Hose Clamp
18	Bracket
19	Hose, Two-Way Valve To Connector
20	Connector, Hose
21	Diaphragm, Valve
22	Clip, Retainer
23	Strap, Ground
24	WP90767 Whirlpool Screw
25	Shield, Two-Way Valve
