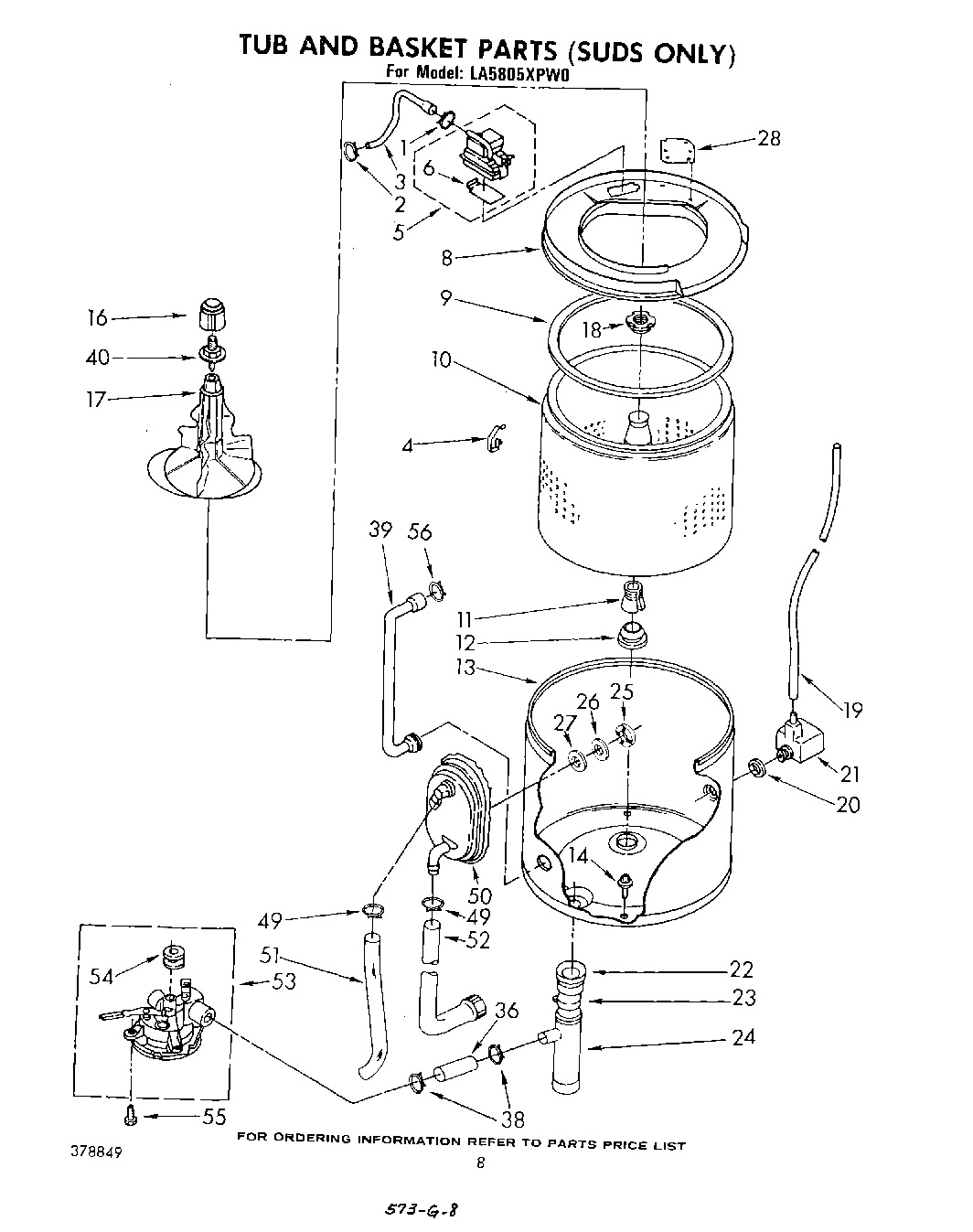

LA5805XPW0 06 – TUB AND BASKET (SUDS ONLY)

Products

Position	Product
3	Hose, Water Inlet
4	Clip, Tub Ring (4)
5	Inlet, Water
6	Flapper
8	Ring & Filter, Tub (Includes Illus. 22)
9	Seal, Tub Ring
10	Basket
11	WP389140 Whirlpool Drive Block or Bell
12	W10814296 Whirlpool Washer Center Post Seal Gasket
13	Tub
14	Screw & Washer, Tub (4)
16	Cap, Agitator
17	Agitator
18	WP21366 Whirlpool Spanner Nut
19	WP353244 Whirlpool Hose
20	Seal
21	Air Dome Assembly
22	Hose, Tub Outlet
23	Clip, Hose
24	Manifold
25	Nut, Spanner
26	Washer, Fiber
27	Washer, Rubber
28	Plate, Snubber
36	Hose
38	WP285655 Whirlpool Hose Clamp
39	Hose, Bleach Dispenser
40	Stud, Agitator Shaft
49	Clamp, Hose (Alternate)
50	Filter
51	Hose, Filter Drain
52	Hose, Filter Drain
53	350365 Whirlpool Dryer Washer Water Pump, 2-Port
54	Pulley
55	386011 Whirlpool Screw
56	WP596669 Whirlpool Hose Clamp
