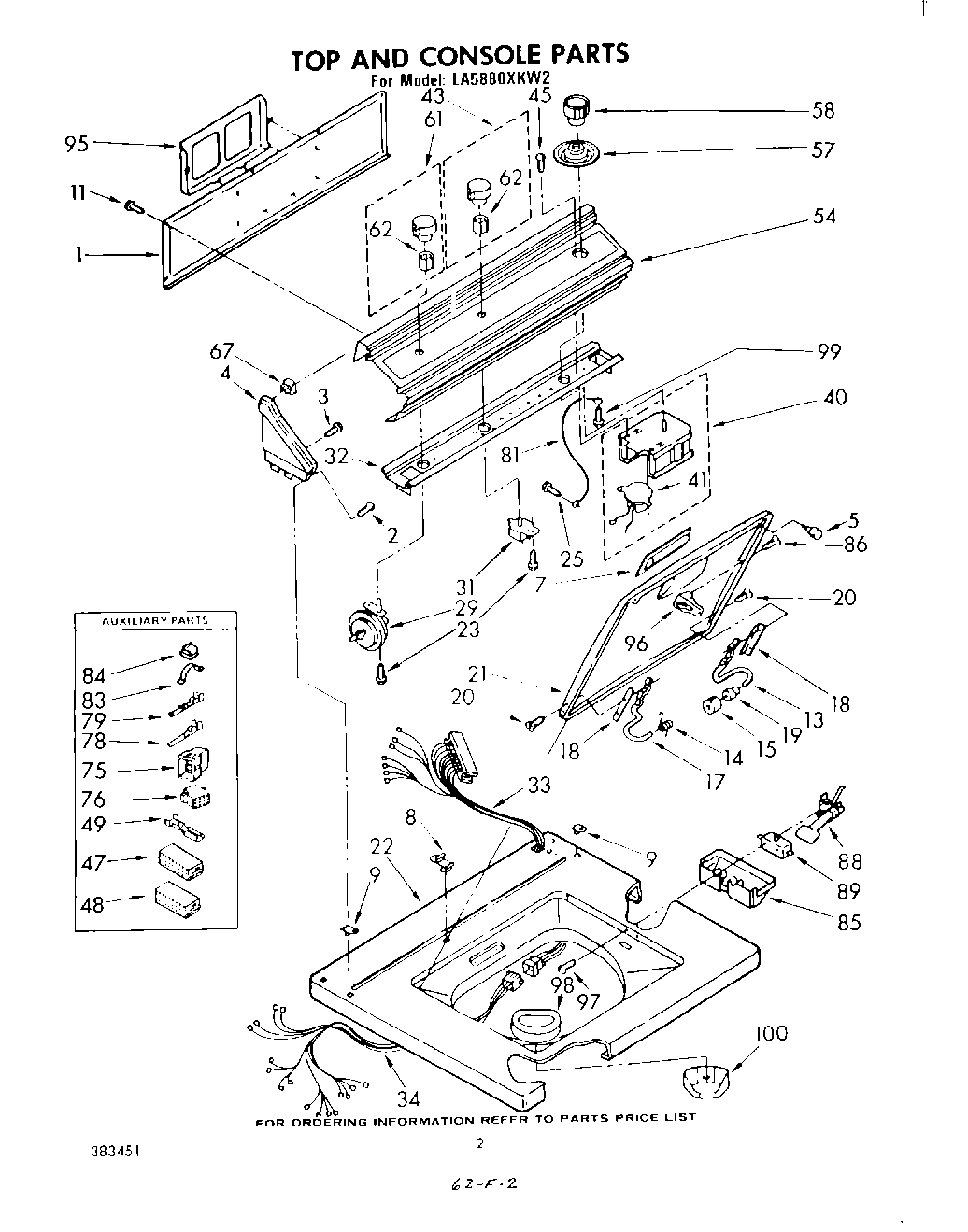

LA5880XKW2 02 – TOP AND CONSOLE

LA5880XKW2 02 – TOP AND CONSOLE

Written by

in

LA5880XKW2 02 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4End Cap Assembly, L.H. (New Avocado)
4Cap, End (L.H.) (Almond)
4End Cap Assembly, L.H. (New Avocado)
5WP9724509 Whirlpool Bumper
7Handle, Lid (Golden Harvest)
7Handle, Lid (Almond)
7Handle, Lid (White)
7Handle, Lid (New Avocado)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (New Avocado)
21Lid (Almond)
21Lid (Golden Harvest)
21Lid (White)
22Top (New Avocado)
22Top (Golden Harvest)
22Top (Almond)
22Top (White)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
33WPL 359327
34Harness, Cabinet
40Timer, 60 Hz. (C.C.A. Non-Suds)
40Timer, 60 Hz. (Mallory Non-Suds)
41Motor, Timer 60 Hz.
41Use W/C.C.A. Timer
43Knob Assembly, Water Temperature
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
48Timer, Block Disconnect (White)
49Terminal, Female
54WPL 383390
57Dial, Timer
58WPL 359773
61Knob Assembly, Water Level
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
95Rack, Literature
96Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
98WPL 352821
99SCREW
100WPL 352827
