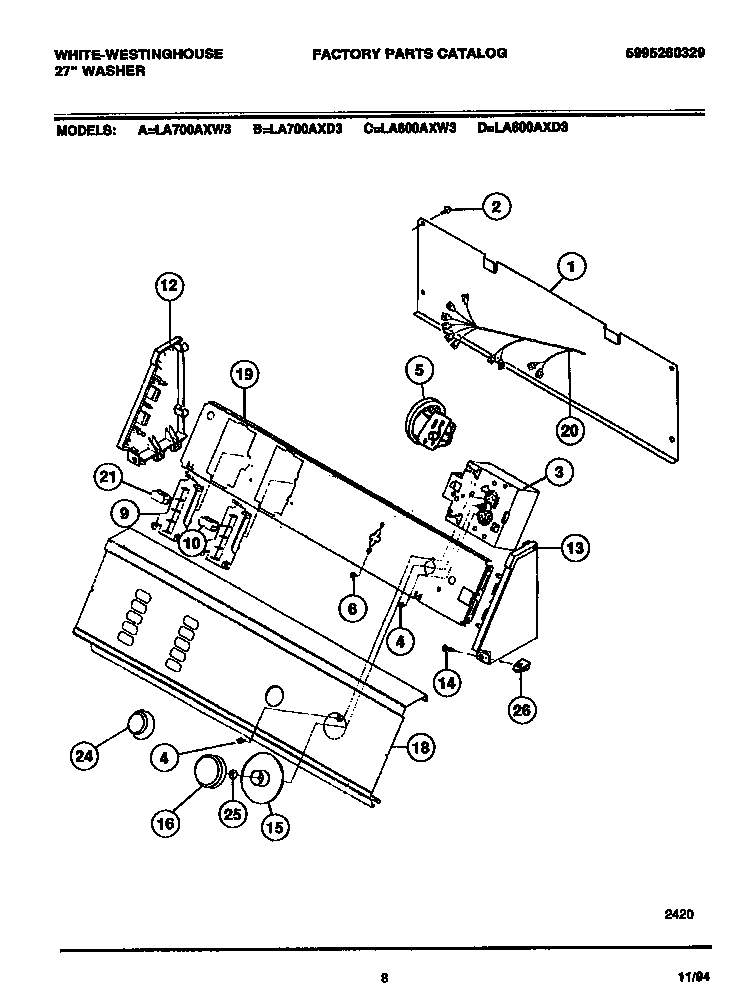

LA600AXD3 05 – CONSOLE & CONTROLS

Products

Position	Product
*34442	SCREW
*34441	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271767
4	SCREW (2)
5	WCI 131047700
6	5303015671 Frigidaire Bracket Termination Screw
9	WCI 131047600
10	WCI 131118100
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118500
16	KNOB-TIMER
18	WCI 131343700
19	WCI 131157802
20	WCI 131165900
21	PUSHBUTTON (4)
24	WCI 131118600
25	Spacer,washer ,timer shaft
26	CLIP
