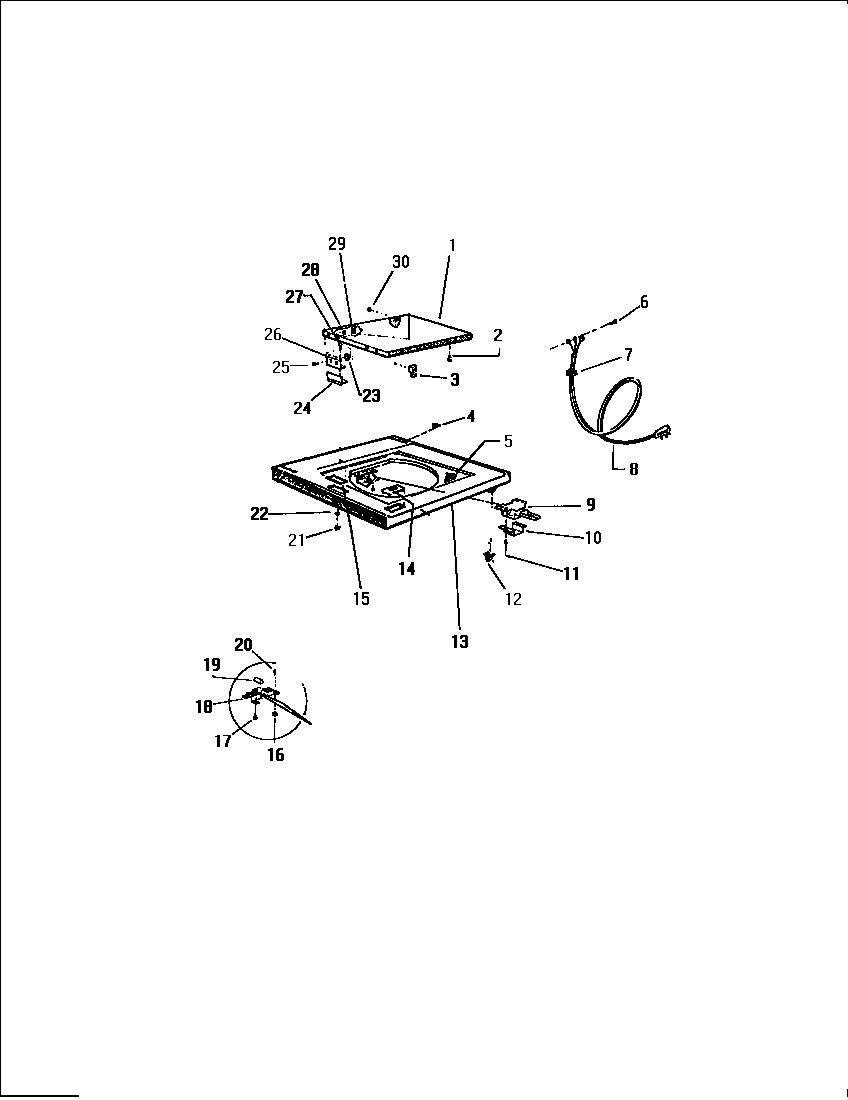

LA600EXW3 03 – TOP PANEL

LA600EXW3 03 – TOP PANEL

Written by

in

LA600EXW3 03 – TOP PANEL

Products

Position	Product
1	WCI Q632825
2	WCI Q13435
3	WCI Q143172
4	WCI Q503065
5	DISPENSER
7	WCI Q63137
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	PANEL TOP, WHITE
23	WCI Q409309
24	WCI Q93739
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
