LA600JXH3 03 – TOP PANEL

LA600JXH3 03 – TOP PANEL

Written by

in

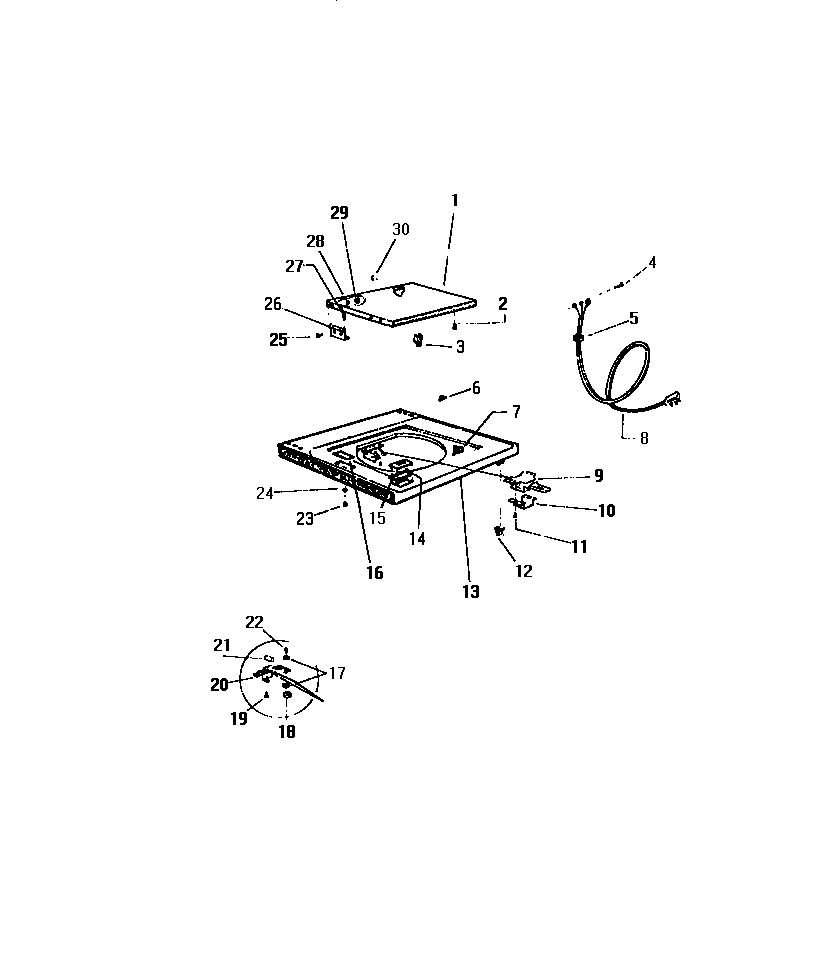

LA600JXH3 03 – TOP PANEL

Products

Position	Product
1	WCI Q623033
2	WCI Q13435
3	WCI Q143172
5	WCI Q63137
6	WCI Q503065
7	DISPENSER
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	PANEL TOP, WHEAT
14	WCI Q182993
15	WCI Q17972
16	WCI Q150472
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
