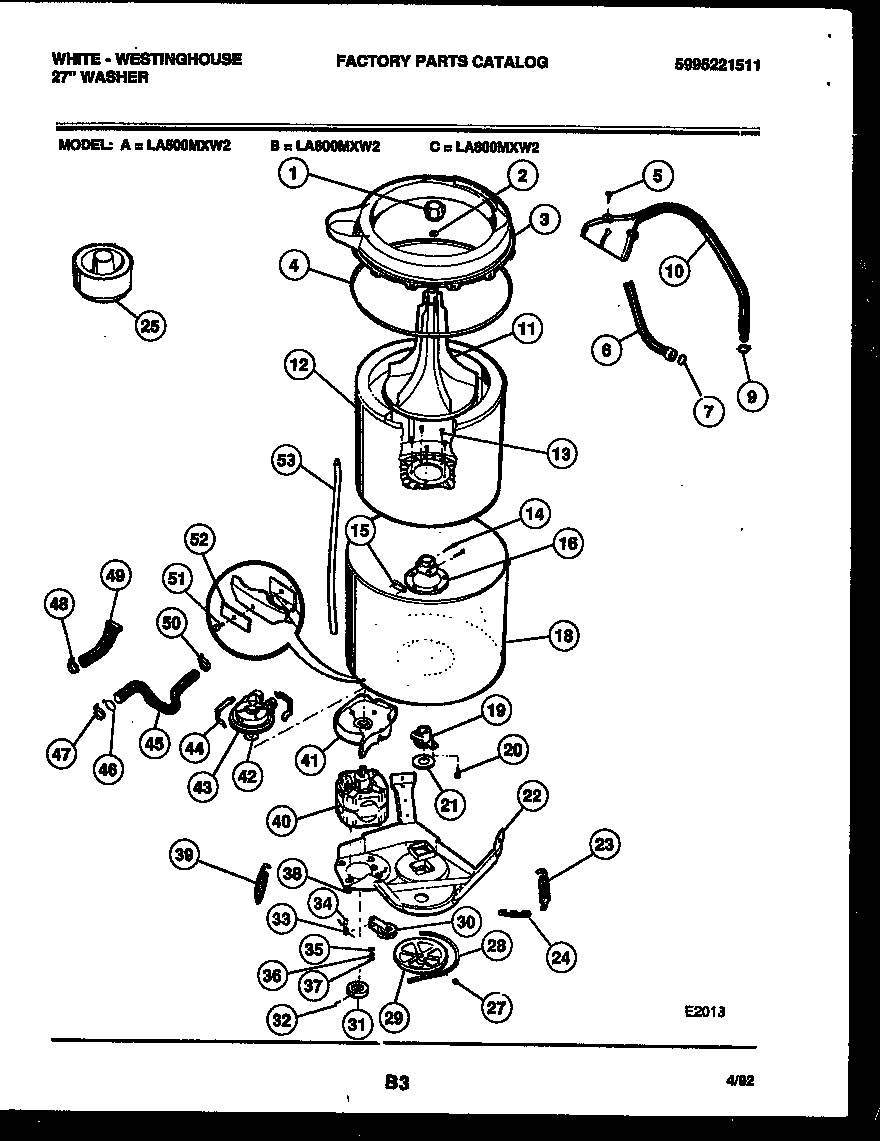

LA600MXD2 03 – TUB DETAIL

Products

Position	Product
1	WCI 5303211002
2	WCI 3204396
3	131398303 Frigidaire Tub Ring
4	131901400 Frigidaire Seal
5	WCI 5308015309
6	5303912532 Frigidaire Hose Inlet 60"
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
9	WCI 5303012110
10	NOZZLE & HOSE ASSY
11	WCI 5303211003
12	WCI 5303284814
13	137546400 Frigidaire Screw 5/165-18 X .625
14	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15	137107000 Frigidaire Plate
16	131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
18	SPLASH TUB & BEARING
19	3204405 Frigidaire Outer Tub Spin Bearing
20	3205150 Frigidaire Tub Bearing Screw
21	5308002401 Frigidaire Washer Primary
22	LEG & DOME
23	134886600 Frigidaire Spring Primary
24	SPRING-HORIZONTAL (3)
25	DISPENSER
27	5303270023 Frigidaire Screw Set
28	WASHER BELT
29	WCI 3204420
30	WCI 3204422
31	WCI 3204423
32	WCI 3204424
33	TORSION SPRING
34	WCI 3204426
35	3161433 Frigidaire Retainer
36	WASHER
37	SPRING WASHER
38	WCI 5308001875
39	134885900 Frigidaire Spring
40	WCI 3204449
41	WCI 3204450
42	WCI 3204451
43	WCI 3204452
44	WCI 3204453
45	WCI 3204454
46	CLIP-HOSE TO LEG
48	131306234 Frigidaire Clamp Pump
49	5303931759 Frigidaire Pump to Tub Hose
50	CLAMP
51	WCI 3204459
52	WCI 3204460
53	5304401845 Frigidaire Tube Pressure
