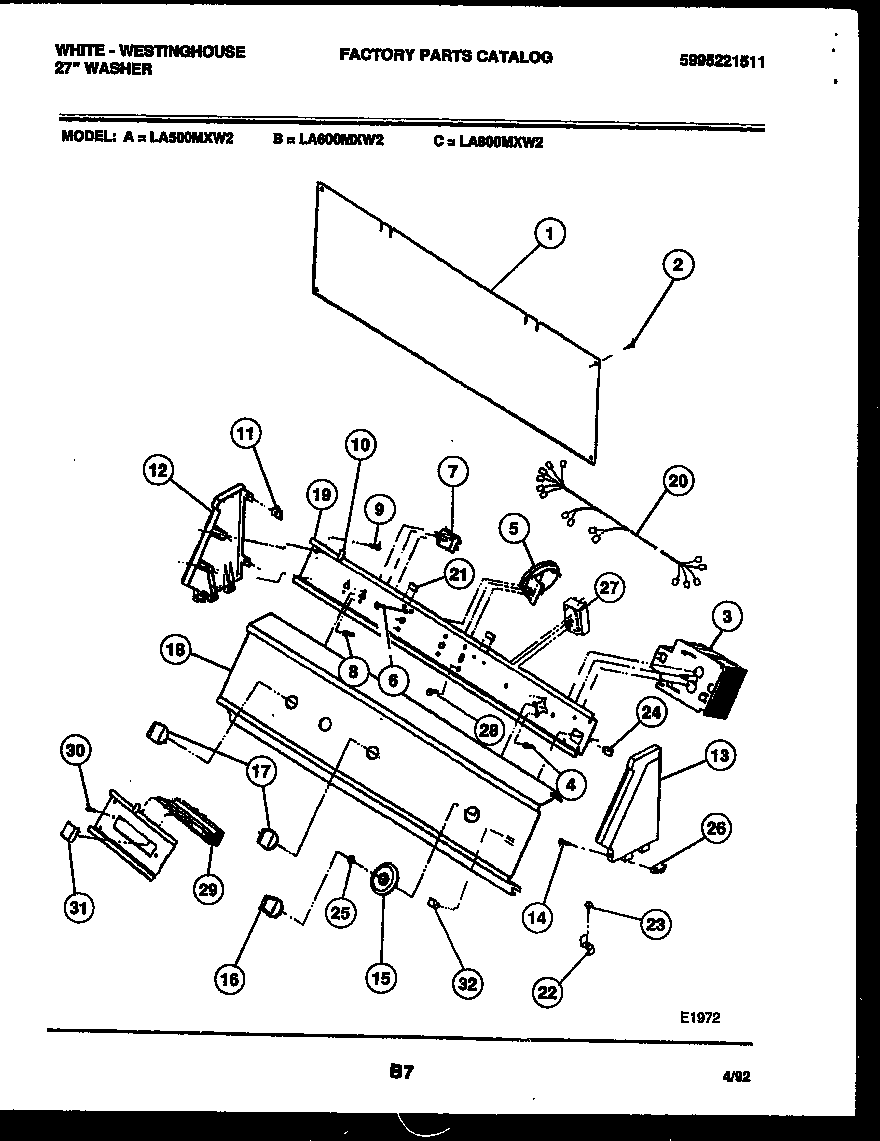

LA600MXW2 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	WCI 5303271771
4	SCREW (2)
5	WCI 5303210964
6	131168200 Frigidaire Dryer Screw
7	WCI 5303210132
8	WCI 3161259
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	WCI 3205842
13	WCI 3205840
14	SCREW (2)
15	WCI 5303210133
16	WCI 5303210134
17	WCI 5300633722
18	WCI 5303211229
19	WCI 5303210137
20	WCI 5303212531
20	WCI 5303210330
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI 5303285493
25	Spacer,washer ,timer shaft
26	CLIP
