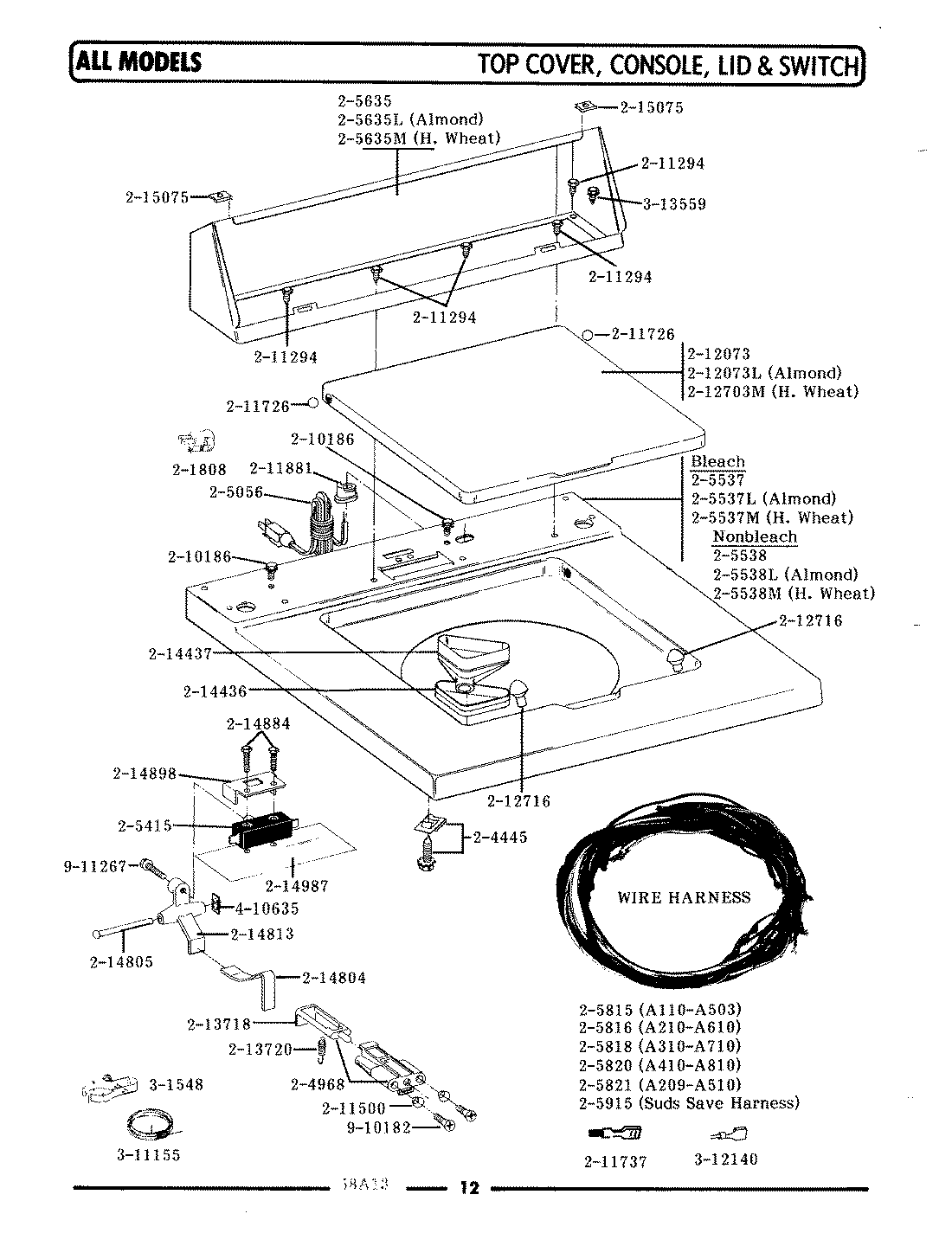

LA610 05 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
7	MAY 205537L
9	MAY 205635L
10	MAY 205816
12	MAY 210186
13	WP90767 Whirlpool Screw
14	MAY 211500
15	WP211726 Whirlpool Ball Assembly
16	MAY 211737
17	GROMMET
19	MAY 212073L
20	WP212716 Whirlpool Lid Bumper
21	MAY 213718
22	WP213720 Whirlpool Spring Assembly
23	MAY 214436
24	MAY 214437
25	MAY 214804
26	MAY 214805
27	MAY 214813
28	MAY 214884
29	MAY 214898
30	MAY 214987
31	MAY 215075
32	MAY 301548
33	WP311155 Whirlpool Wire Assembly
34	MAY Y312140
35	MAY Y313559
36	MAY 410635
37	MAY 910182
38	MAY 911267
