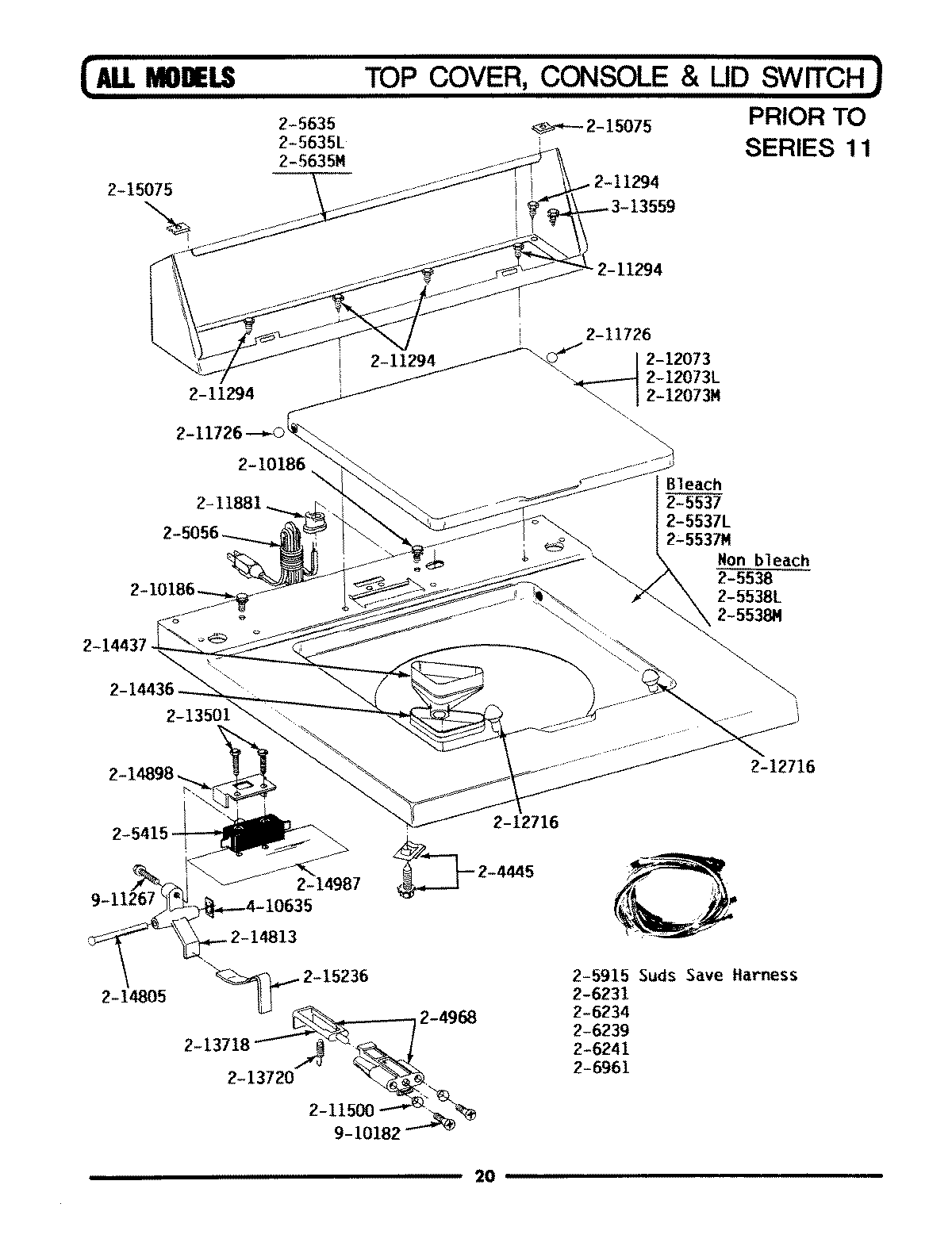

LA612 07 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
7	MAY 205537L
11	MAY 205635L
13	MAY 205997
16	MAY 206231
19	MAY 210186
20	WP90767 Whirlpool Screw
21	MAY 211500
22	WP211726 Whirlpool Ball Assembly
23	MAY 211737
24	GROMMET
26	MAY 212073L
27	WP212716 Whirlpool Lid Bumper
28	MAY 213501
29	MAY 213718
30	WP213720 Whirlpool Spring Assembly
31	MAY 214436
32	MAY 214805
33	MAY 214813
34	MAY 214898
35	MAY 214987
36	MAY 215075
37	MAY 215236
39	MAY 215578
41	MAY 215580
42	MAY 301548
43	WP311155 Whirlpool Wire Assembly
44	MAY Y312140
45	MAY Y313559
46	MAY 410635
47	MAY 910182
48	MAY 911267
