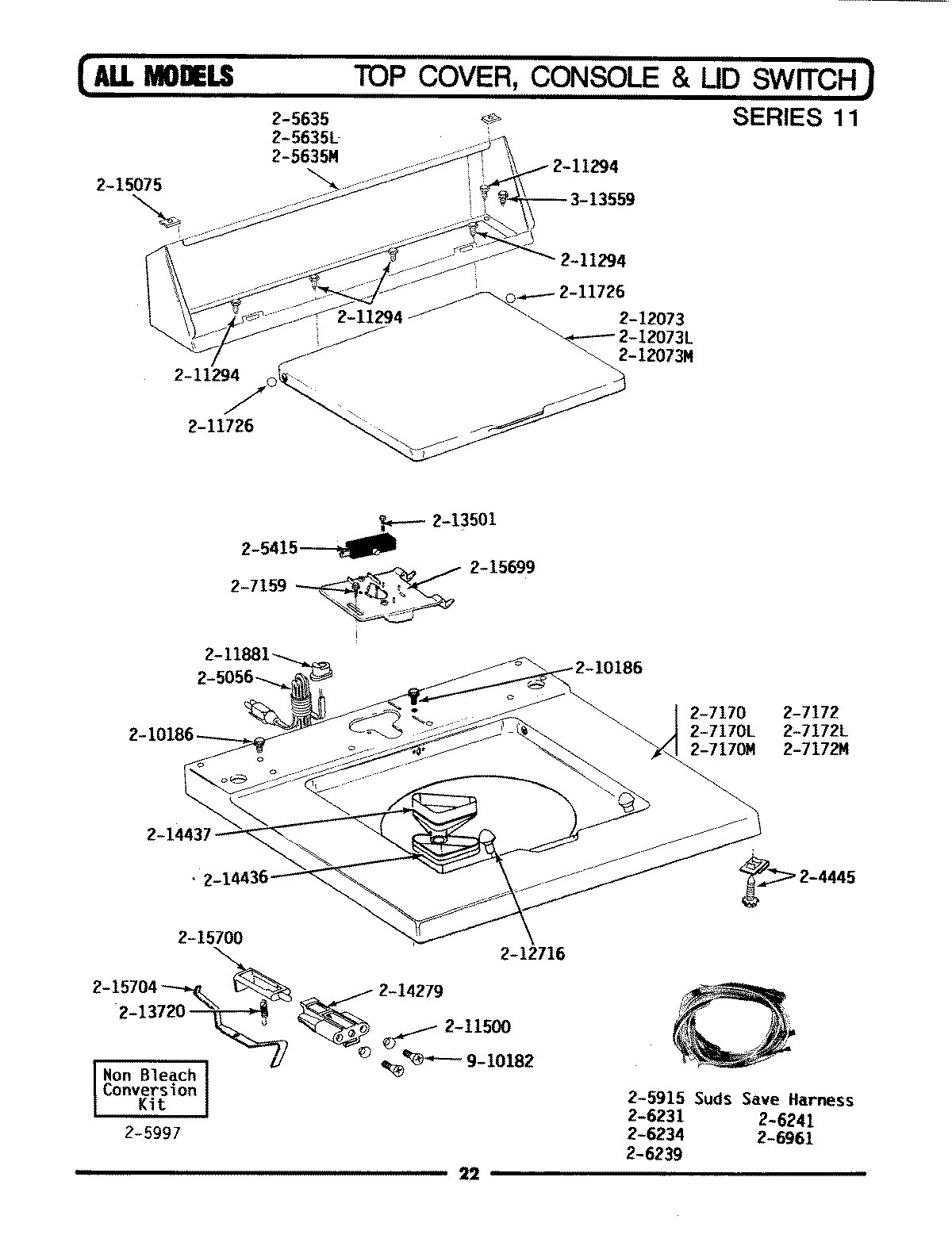

LA612 08 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
7	MAY 205635L
9	MAY 205997
10	MAY 206231
11	SCREW
13	MAY 207170L
16	MAY 207172L
17	MAY 210186
18	WP90767 Whirlpool Screw
19	MAY 211500
20	WP211726 Whirlpool Ball Assembly
23	MAY 211737
24	GROMMET
26	MAY 212073L
27	WP212716 Whirlpool Lid Bumper
28	MAY 213501
29	MAY 213718
30	WP213720 Whirlpool Spring Assembly
31	MAY 214279
32	MAY 214436
33	MAY 214805
34	MAY 214813
35	MAY 214898
36	MAY 214987
37	MAY 215075
38	MAY 215236
40	MAY 215578
42	MAY 215580
43	MAY Y215699
44	MAY 215700
45	MAY 215704
46	MAY 301548
47	WP311155 Whirlpool Wire Assembly
48	MAY Y313559
48	MAY Y312140
49	MAY 410635
50	MAY 910182
51	MAY 911267
