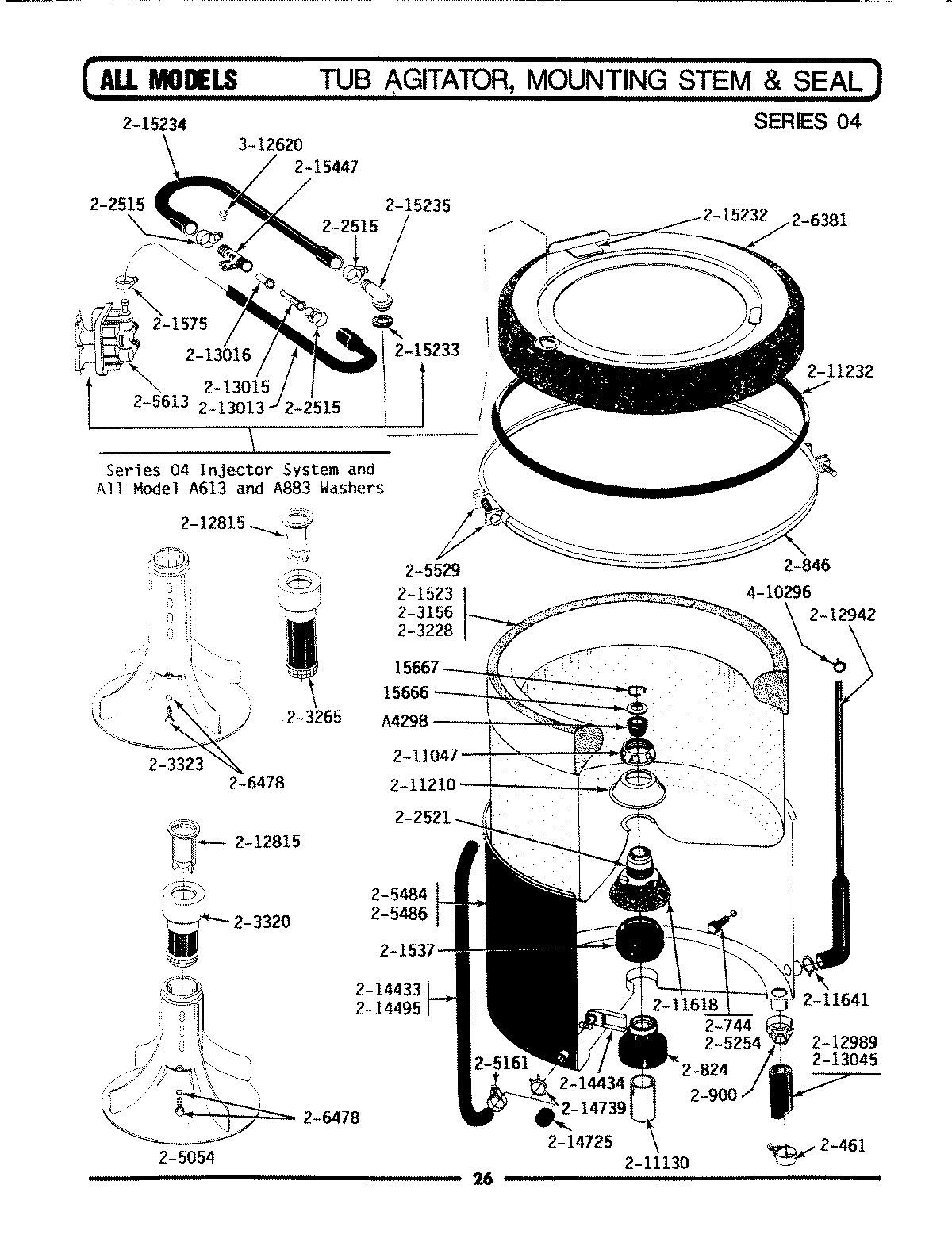

LA613 09 – TUB, AGITATOR, MTG. STEM & SEAL (SER 04)

Products

Position	Product
1	MAY A04298
2	WPY015666 Whirlpool Washer Retainer
3	MAY Y015667
4	MAY Y054867
5	W10175939 Whirlpool Bolt Assembly
6	6-2040130 Whirlpool Washer Tub Bearing Kit
8	MAY 200900
9	MAY 201537
10	WP596669 Whirlpool Hose Clamp
12	MAY 202521
16	MAY 203156
17	MAY 203265
19	MAY 204012
21	WP489503 Whirlpool Refrigerator Clamp
22	W10175938 Whirlpool Bolt
23	PART NOT USED
26	205613 Whirlpool Washer Water Inlet Valve
27	MAY 206381
28	MAY 206478
29	MAY 206683
30	WP6-2110472 Whirlpool Nut Clamp
31	MAY 211100
32	MAY 211130
33	MAY 211210
34	WP211232 Whirlpool Seal
35	MAY 211618
36	WP285655 Whirlpool Hose Clamp
37	MAY 212815
38	MAY 212942
39	WP213013 Whirlpool Injector Hose
40	WP213015 Whirlpool Nozzle Injector Tube
41	WP216201 Whirlpool Rubber Injector Valve
43	MAY 213057
44	WP214433 Whirlpool Inlet Tube
45	MAY 214434
46	MAY 214725
48	MAY 214875
49	MAY 215232
50	WP215233 Whirlpool Seal
51	WPY215234 Whirlpool Hose
52	MAY 215235
53	WP215447 Whirlpool Sleeve
54	MAY Y310632
55	MAY 312620
