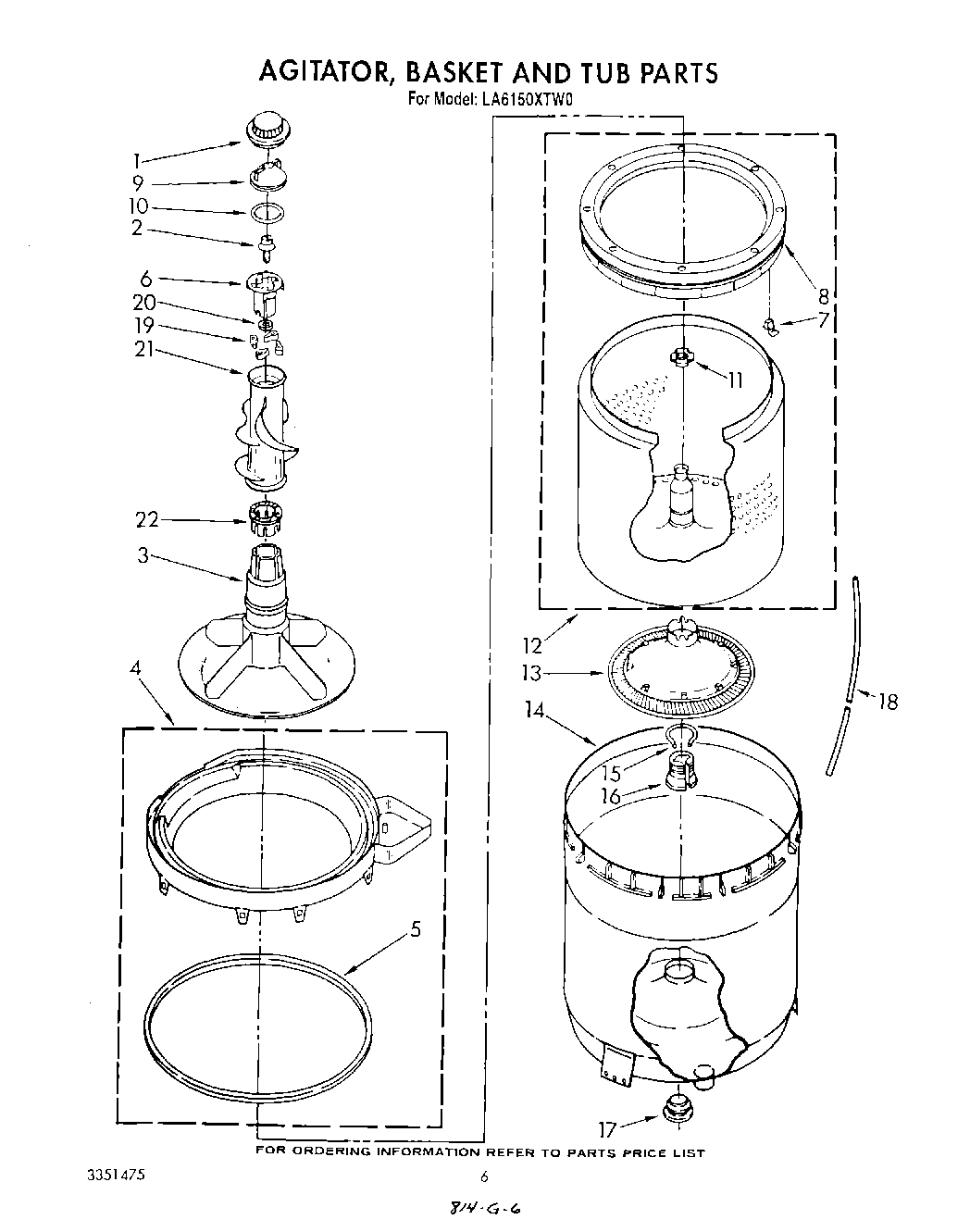

LA6150XTN0 04 – AGITATOR, BASKET AND TUB

LA6150XTN0 04 – AGITATOR, BASKET AND TUB

Written by

in

LA6150XTN0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3350830 Whirlpool Agitator Assembly
4Tub Ring & Gasket
5WP3359586 Whirlpool Tub Seal
6285811 Whirlpool Washer Agitator Repair Kit
8WP8519815 Whirlpool Washer Balance Ring Clip
9WPW10074580 Whirlpool Agitator Inner Cap and Seal
10WPW10072840 Whirlpool Seal Assembly
11WP21366 Whirlpool Spanner Nut
12Basket & Balance Ring
13285868 Whirlpool Washer Filter Plug Kit
14Tub
15Lock, Filter
16WP389140 Whirlpool Drive Block or Bell
17W10814296 Whirlpool Washer Center Post Seal Gasket
18WP353244 Whirlpool Hose
1980040 Whirlpool Washer Agitator Dog Kit
20Seal, Agitator
21WP3349019 Whirlpool Upper Agitator
22285587 Whirlpool Thrust Washer
