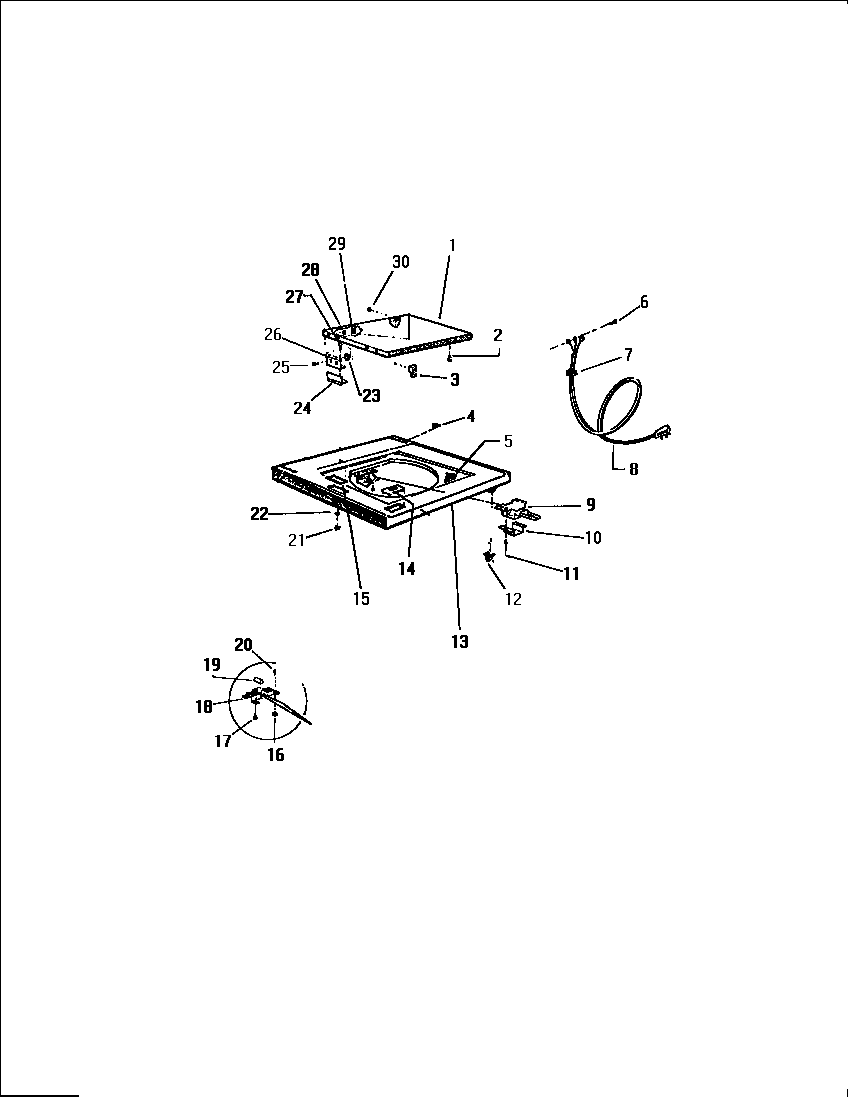

LA625EXF3 03 – TOP PANEL

LA625EXF3 03 – TOP PANEL

Written by

in

LA625EXF3 03 – TOP PANEL

Products

PositionProduct
1WCI Q632822
2WCI Q13435
3WCI Q143172
4WCI Q503065
5DISPENSER
7WCI Q63137
8CORD, SERVICE
9WCI Q165346
10SHIELD, LID LOCK
11SCREW (4)
12SPRING CATCH
13WCI Q632867
14WCI Q182992
15WCI Q150473
16WCI Q501082
17WCI Q503241
18WCI Q150481
19WCI Q150472
20WCI Q435055
23WCI Q409309
24WCI Q93739
26HINGE (2 REQ.)
27SCREW (2)
28SPACER
29NUT (2)
30WCI Q501589
