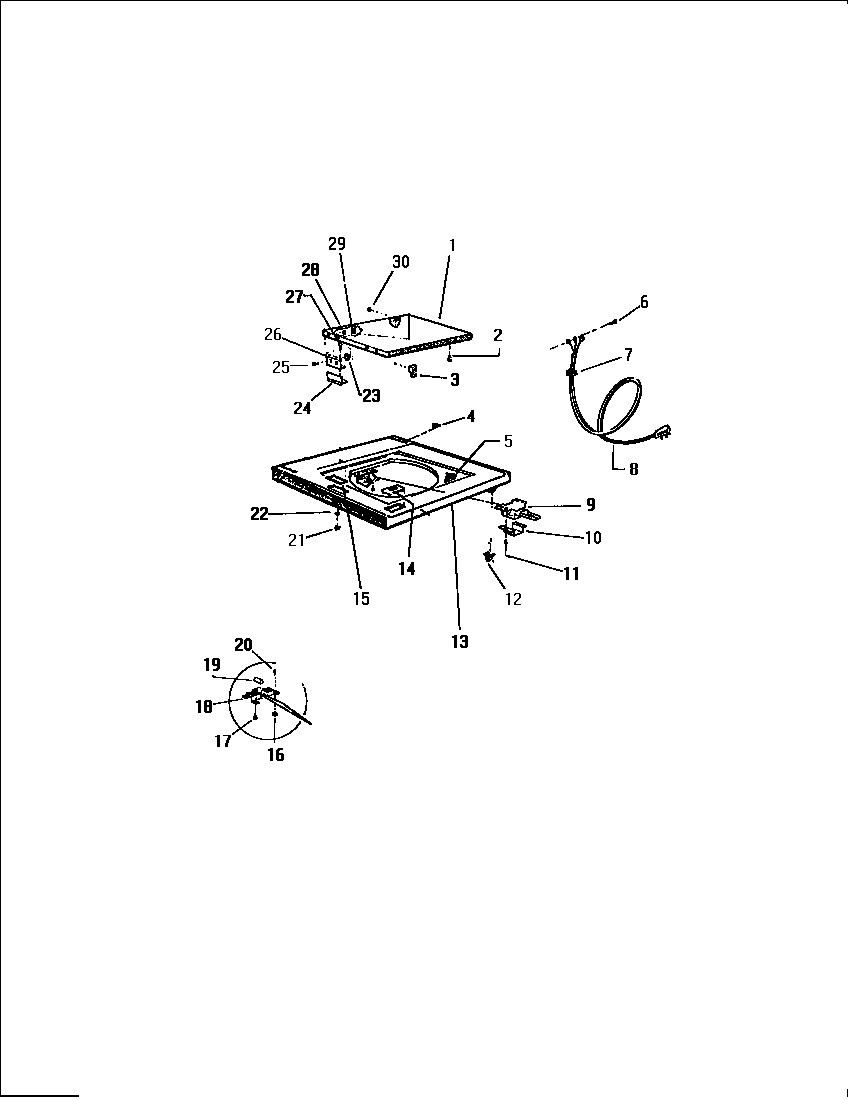

LA625EXV3 03 – TOP PANEL

Products

Position	Product
1	WCI Q632824
2	WCI Q13435
3	WCI Q143172
4	WCI Q503065
5	DISPENSER
7	WCI Q63137
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	WCI Q632869
14	WCI Q182992
15	WCI Q150473
16	WCI Q501082
17	WCI Q503241
18	WCI Q150481
19	WCI Q150472
20	WCI Q435055
23	WCI Q409309
24	WCI Q93739
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
