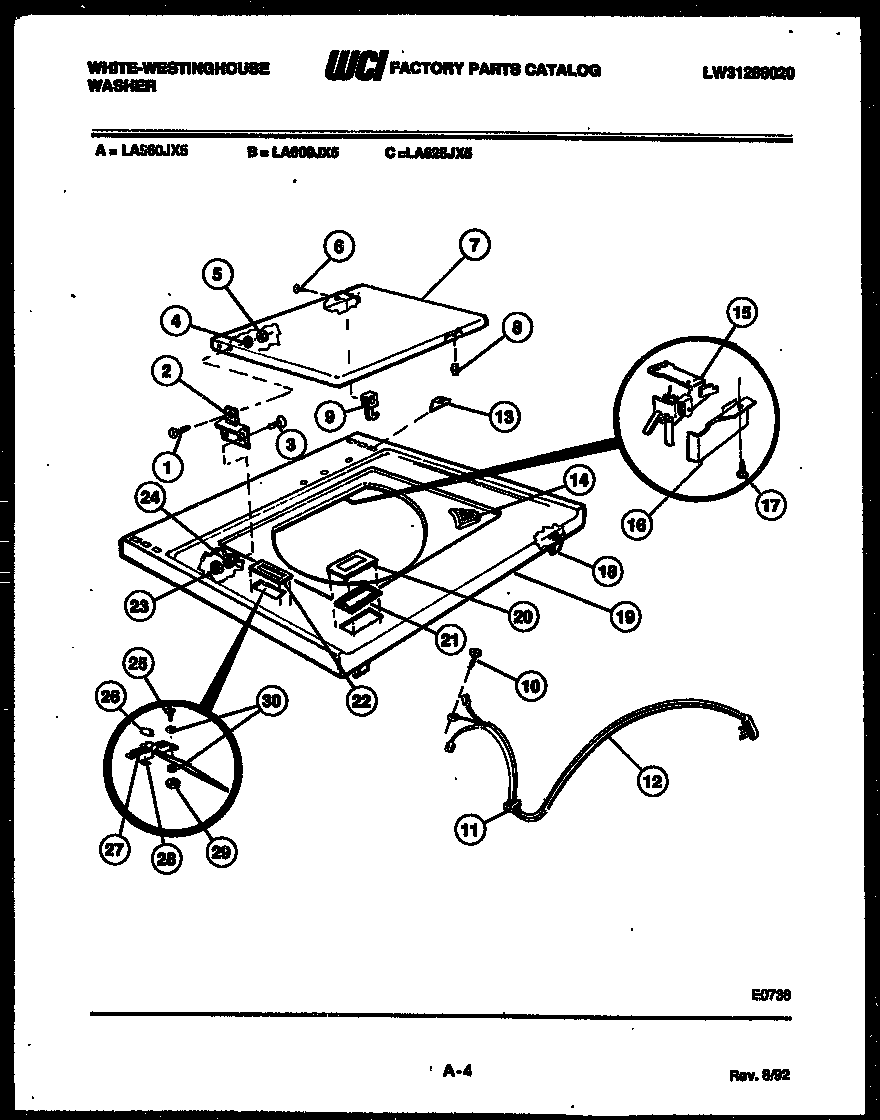

LA625JXD5 03 – TOP PARTS

LA625JXD5 03 – TOP PARTS

Written by

in

LA625JXD5 03 – TOP PARTS

Products

Position	Product
2	WCI Q622182
3	SCREW (2)
6	WCI Q501589
7	WCI Q623036
7	WCI Q623040
8	WCI Q13435
9	WCI Q143172
10	WCI Q501523
11	WCI Q63137
12	CORD, SERVICE
13	WCI Q503065
14	DISPENSER
15	WCI Q165346
16	SHIELD, LID LOCK
17	SCREW (4)
18	SPRING CATCH
19	PANEL-TOP ALMD
20	WCI Q182993
21	WCI Q17972
22	WCI Q150473
23	NUT (2)
24	SPACER
25	WCI Q435055
26	WCI Q150472
27	WCI Q150481
28	WCI Q503241
29	WCI Q501082
30	WCI Q409203
