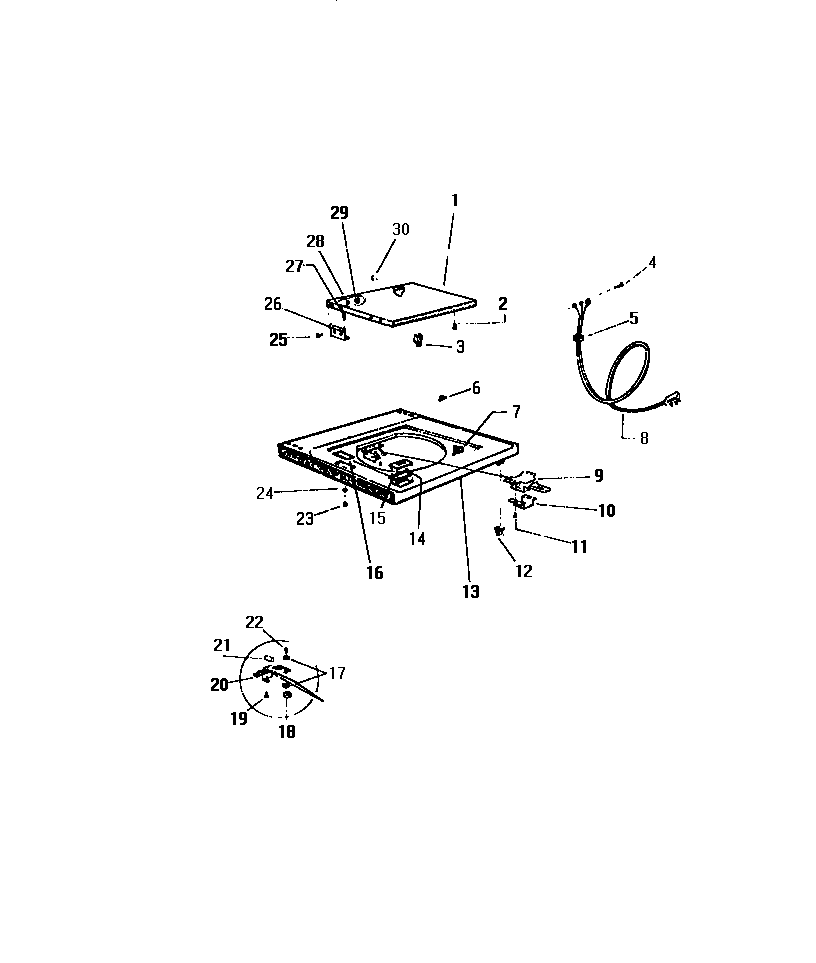

LA625JXF3 03 – TOP PANEL

Products

Position	Product
1	WCI Q623037
2	WCI Q13435
3	WCI Q143172
5	WCI Q63137
6	WCI Q503065
7	DISPENSER
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	WCI Q632916
14	WCI Q182993
15	WCI Q17972
17	WCI Q409203
18	WCI Q501082
19	WCI Q603241
20	WCI Q150481
21A	WCI Q150473
21	WCI Q150472
22	WCI Q435055
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
