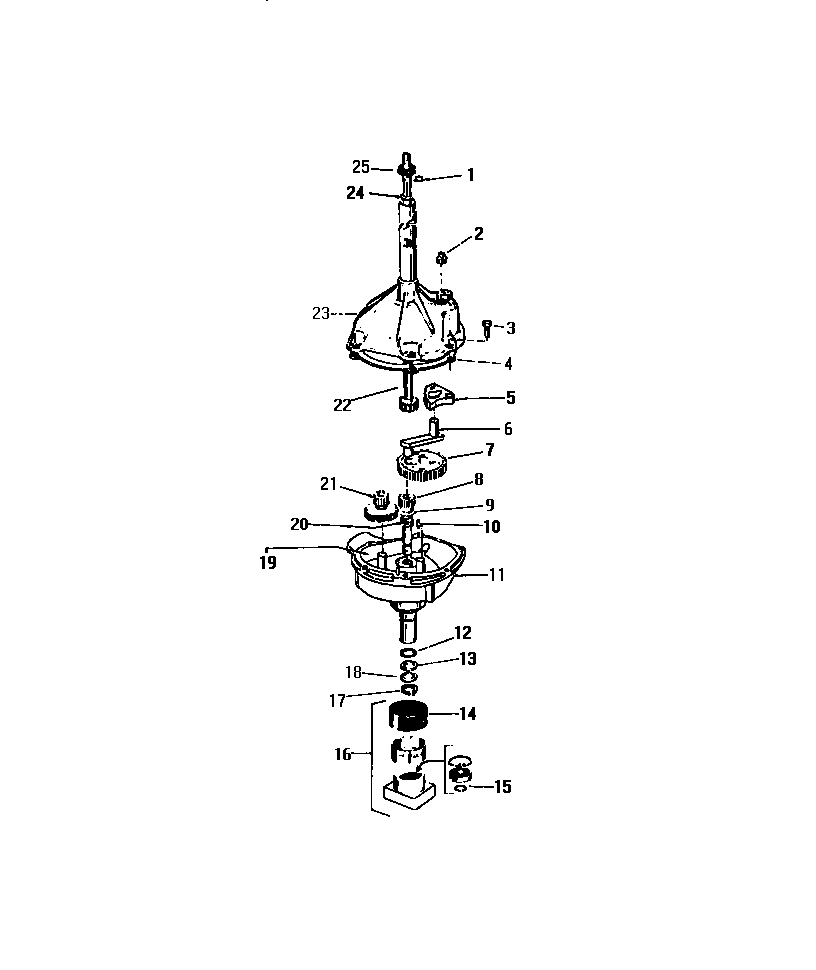

LA625JXF3 07 – TRANSMISSION

Products

Position	Product
*07241	WCI Q631032
2	WCI F077061000
3	WCI F079688000
4	WCI F130895000
5	WCI F130405100
6	WCI F066078100
7	WCI F130404100
8	SHAFT, LOWER
10	WCI F077058000
11	HOUSING, LOWER
12	5303161173 Frigidaire Seal Assembly
13	WASHER, THRUST
14	WCI F130417000
15	WCI F141261000
16	WCI F137014000
17	WCI F068158000
18	WCI F077098000
19	OIL, TRANSMISSION, 1 QUART
20	WCI F077052000
21	WCI F130403100
22	WCI F140482000
23	HOUSING, UPPER
24	WCI F062568000
25	5303161307 Frigidaire Dryer Seal Assembly
