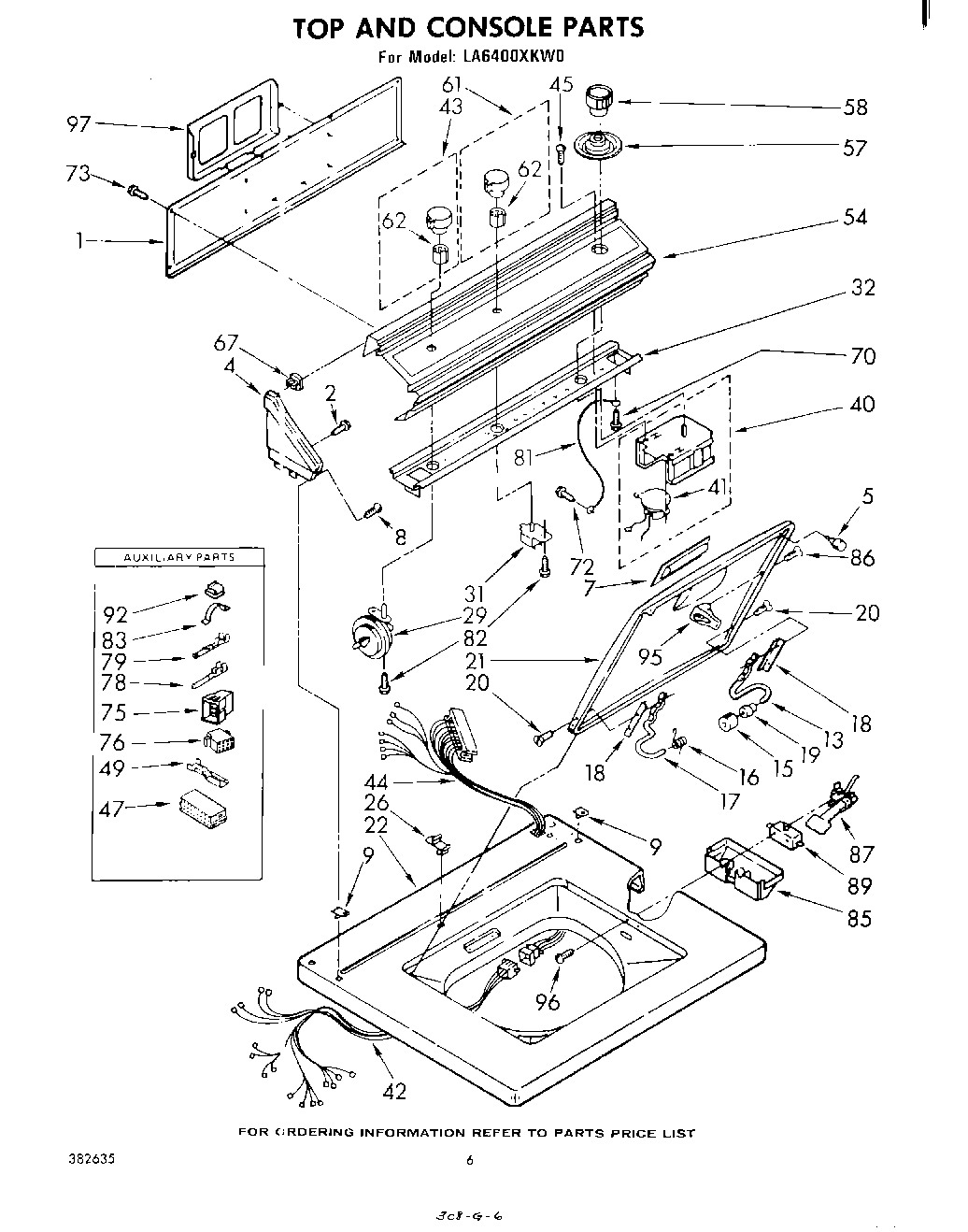

LA6400XKW0 06 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	WPL 355326
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (White)
7	Handle, Lid (Almond)
8	Screw, 8-18 x 1 (2)
9	Nut, Push-In (2)
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
21	Lid (Almond)
22	Top (White)
22	Top (Almond)
26	Stop, Push-In Top
29	Switch, Water Level (Alternate)
29	Switch, Water Level (Alternate)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
32	Bracket, Control
40	Timer, 60 Hz. (C.C.A. (Alternate))
40	Timer, 60 Hz. (Mallory (Alternate))
41	Use W/C.C.A. Timer
41	Motor, Timer 60 Hz.
42	Harness, Base
43	Knob Assembly, Water Level
44	WPL 359327
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
49	Terminal, Female
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
61	Knob, Water Temperature
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	SCREW
73	W11693756 Whirlpool Screw Assembly
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	3184020 Whirlpool Oven Wire
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
87	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
92	WP90016 Whirlpool Clip
95	Strike, Lid Switch
96	Screw & Washer, Lid Switch (2)
97	Rack, Literature
