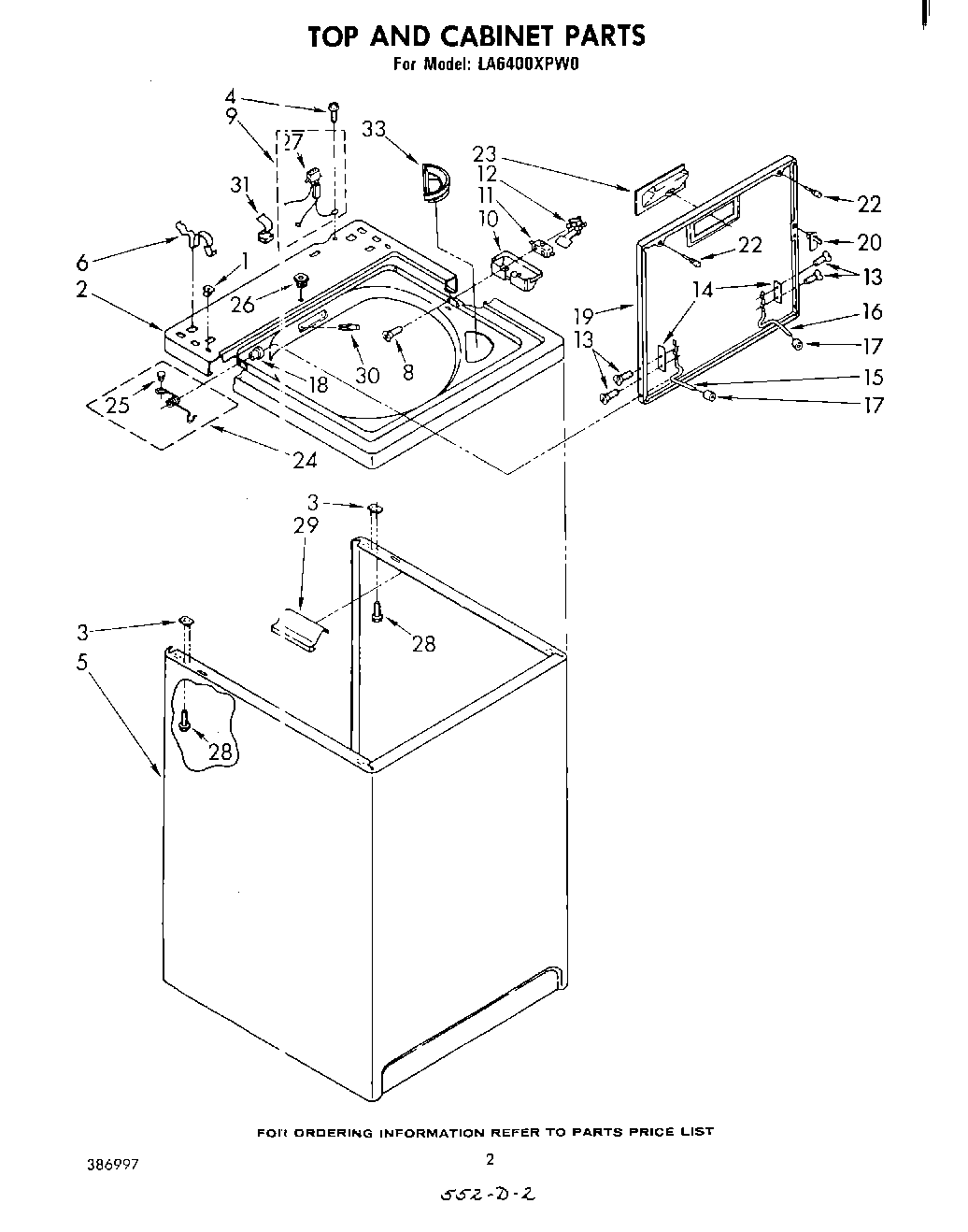

LA6400XPW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

LA6400XPW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Written by

in

LA6400XPW0 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
WPL LIT677967
WPL 72112
WPL 261880
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT386206
WP285195 Whirlpool Sealer Assembly
WPL LIT386903
WPL LIT385238
Golden Harvest (Uncut)
WPL LIT383979
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Dryer
Platinum (Uncut)
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL LIT386997
1Nut, Push-In (2)
2Top (Golden Harvest)
2Top (Platinum)
2Top (Almond)
2Top (Toast)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (White)
5Cabinet (Golden Harvest)
5Cabinet (Toast)
5Cabinet (Platinum)
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Almond)
19Lid (Toast)
19Lid (Platinum)
19Lid (Golden Harvest)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
23Handle, Lid (White)
23Handle, Lid (Platinum)
23Handle, Lid (Almond)
23Handle, Lid (Golden Harvest)
23Handle, Lid (Toast)
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
29Support Protector
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
33WP3362952 Whirlpool Bezel
