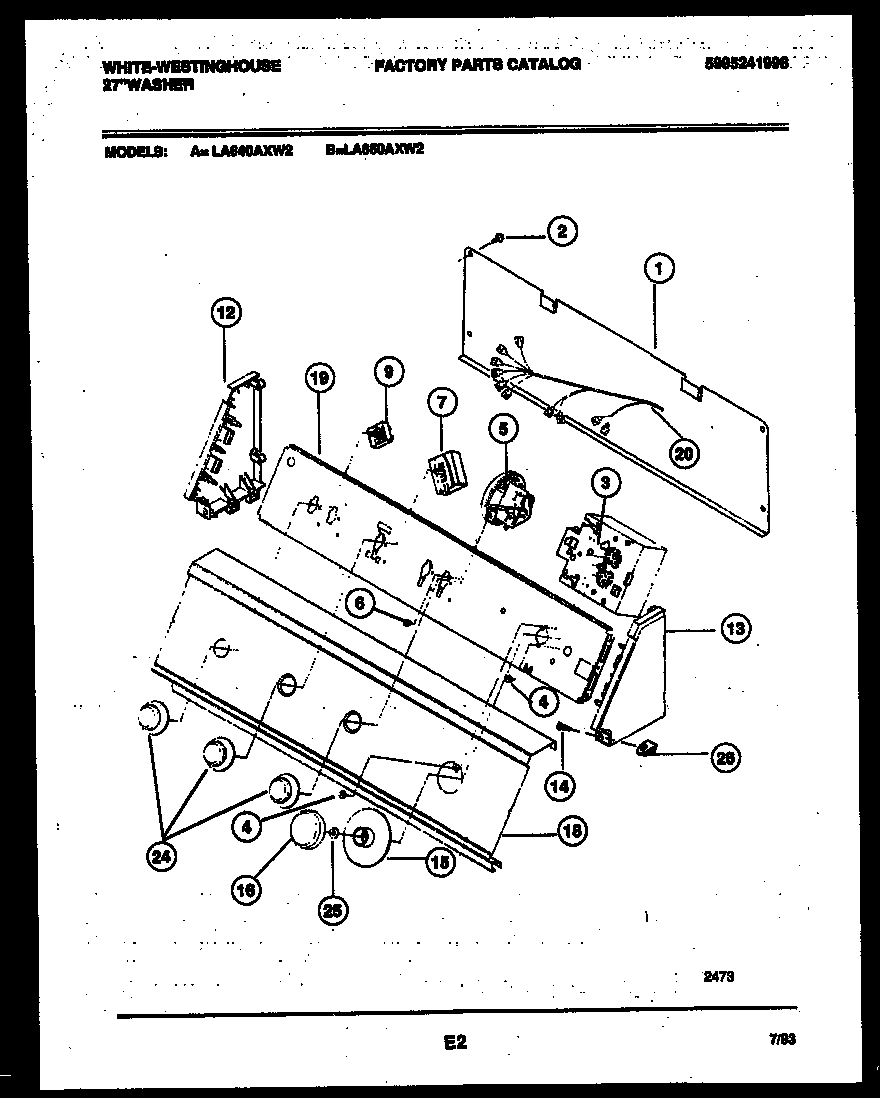

LA640AXD2 05 – CONSOLE AND CONTROL PARTS

LA640AXD2 05 – CONSOLE AND CONTROL PARTS

Written by

in

LA640AXD2 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*79927SCREW
*79927131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 5303271765
4SCREW (2)
5WCI 131047700
6131168200 Frigidaire Dryer Screw
7WCI 131120400
9WCI 131081200
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131118500
16KNOB-TIMER
18WCI 131116400
19BRACKET CONTROLS
20WCI 131166200
24WCI 131118600
25Spacer,washer ,timer shaft
26CLIP
