LA640AXW2 05 – CONSOLE AND CONTROL PARTS – Aparts

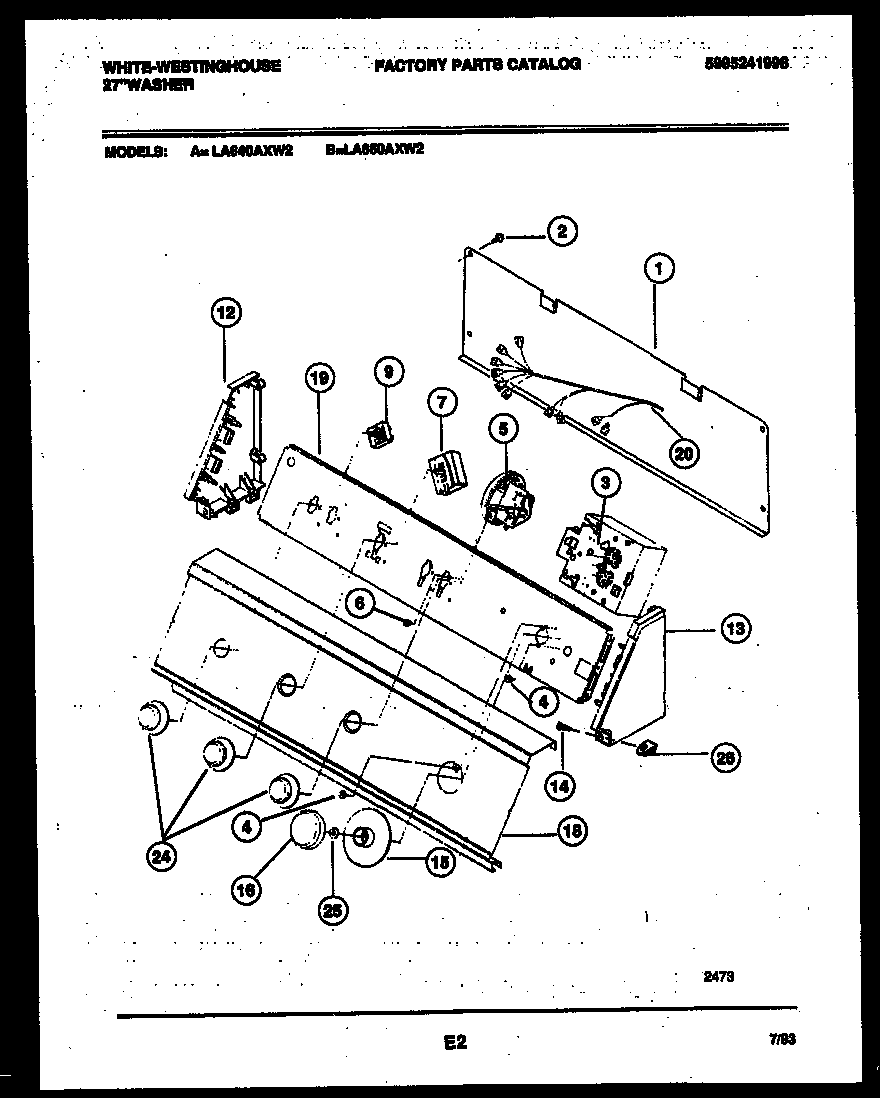

LA640AXW2 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*79927	SCREW
*79927	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271765
4	SCREW (2)
5	WCI 131047700
6	131168200 Frigidaire Dryer Screw
7	WCI 131120400
9	WCI 131081200
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118500
16	KNOB-TIMER
18	WCI 131116400
19	BRACKET CONTROLS
20	WCI 131166200
24	WCI 131118600
25	Spacer,washer ,timer shaft
26	CLIP
