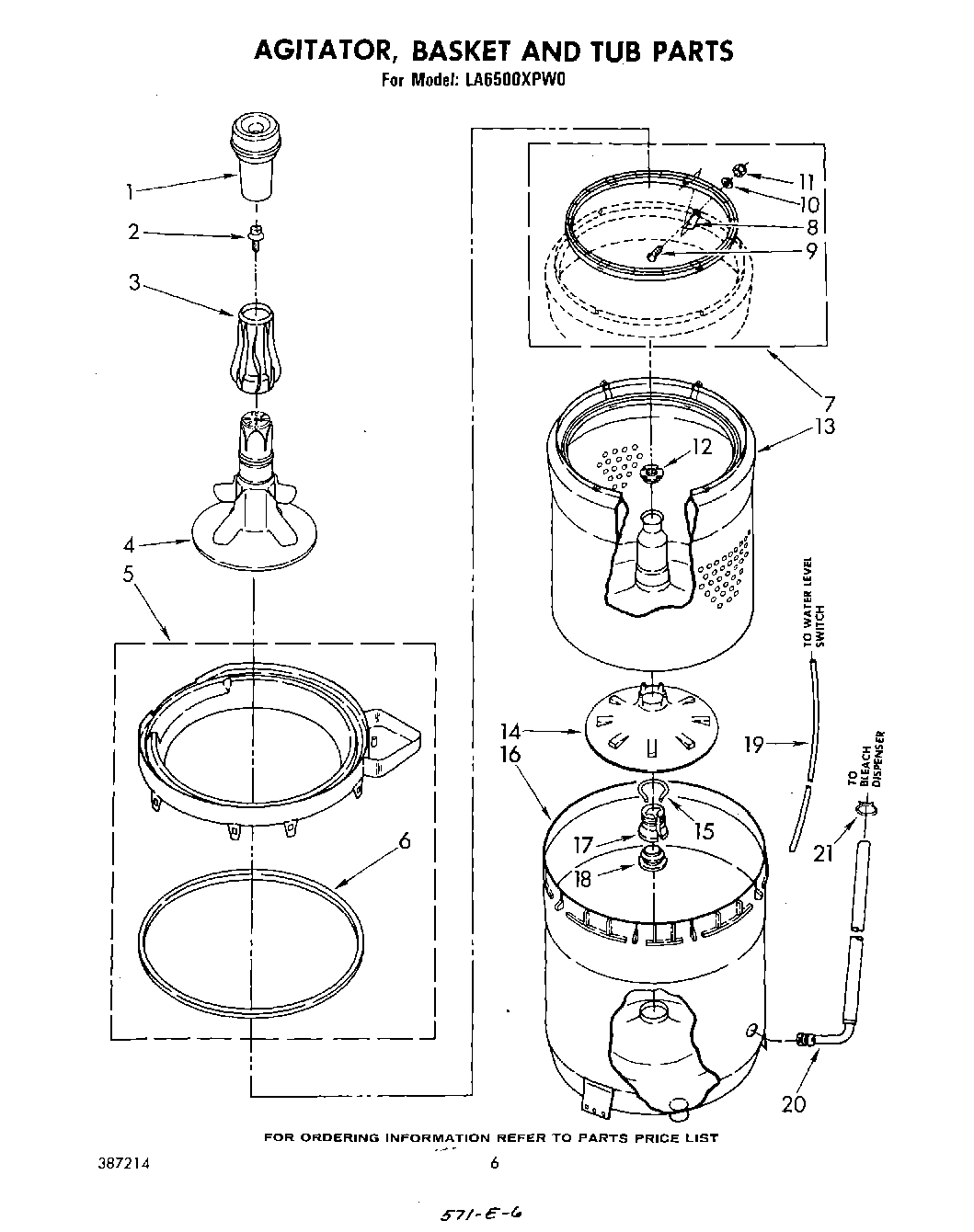

LA6500XPW0 04 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	63580 Whirlpool Washer Fabric Softener Dispenser
2	WP358237 Whirlpool Agitator Bolt
3	WP63753 Whirlpool Filter
4	387838 Whirlpool Washer Agitator with Auger Assembly
5	Tub Ring & Gasket
6	WP3359586 Whirlpool Tub Seal
7	Clothes Guard Repair Kit
8	Clip, Clothes Guard (6)
9	WP486754 Whirlpool Compactor Screw
10	Washer, Nylon (6)
11	Locknut (6)
12	WP21366 Whirlpool Spanner Nut
13	Basket & Clothes Guard (Includes Illus. 7)
14	Plate, Restrictor
15	Lock, Filter
16	Tub
17	WP389140 Whirlpool Drive Block or Bell
18	W10814296 Whirlpool Washer Center Post Seal Gasket
19	WP353244 Whirlpool Hose
20	Hose, Bleach
21	WP596669 Whirlpool Hose Clamp
