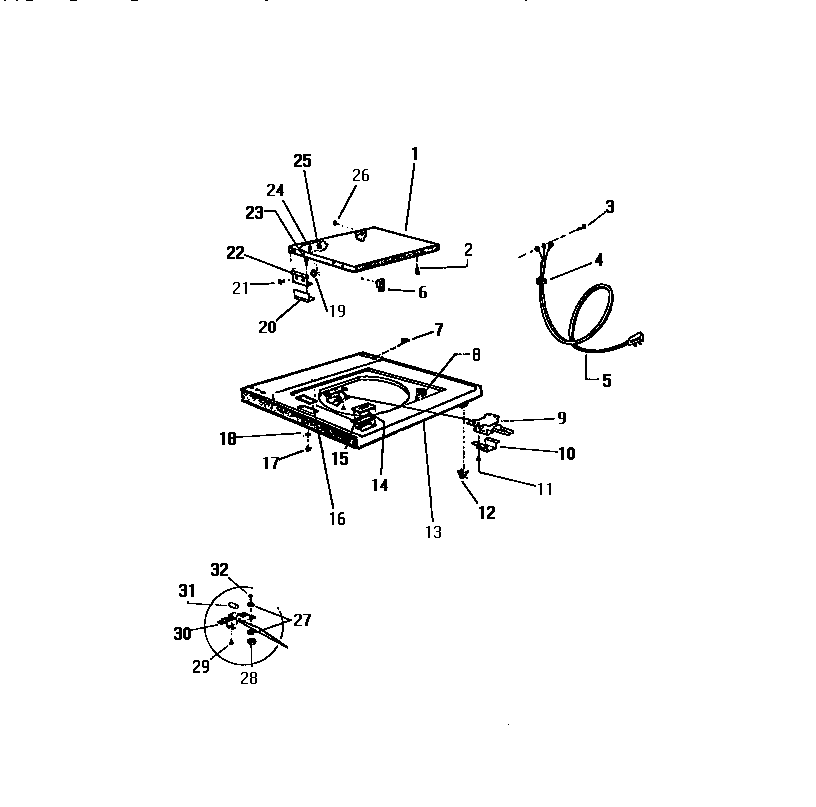

LA650EXV3 04 – TOP PANEL

Products

PositionProduct
1WCI Q632829
2WCI Q13435
4WCI Q63137
5CORD, SERVICE
6WCI Q143172
7WCI Q503065
8DISPENSER
9WCI Q165346
10SHIELD, LID LOCK
11SCREW (4)
12SPRING CATCH
13WCI Q632864
14WCI Q182992
15WCI Q17972
16WCI Q150473
19WCI Q409309
20WCI Q93739
22HINGE (2 REQ.)
23SCREW (2)
24SPACER
25NUT (2)
26WCI Q501589
