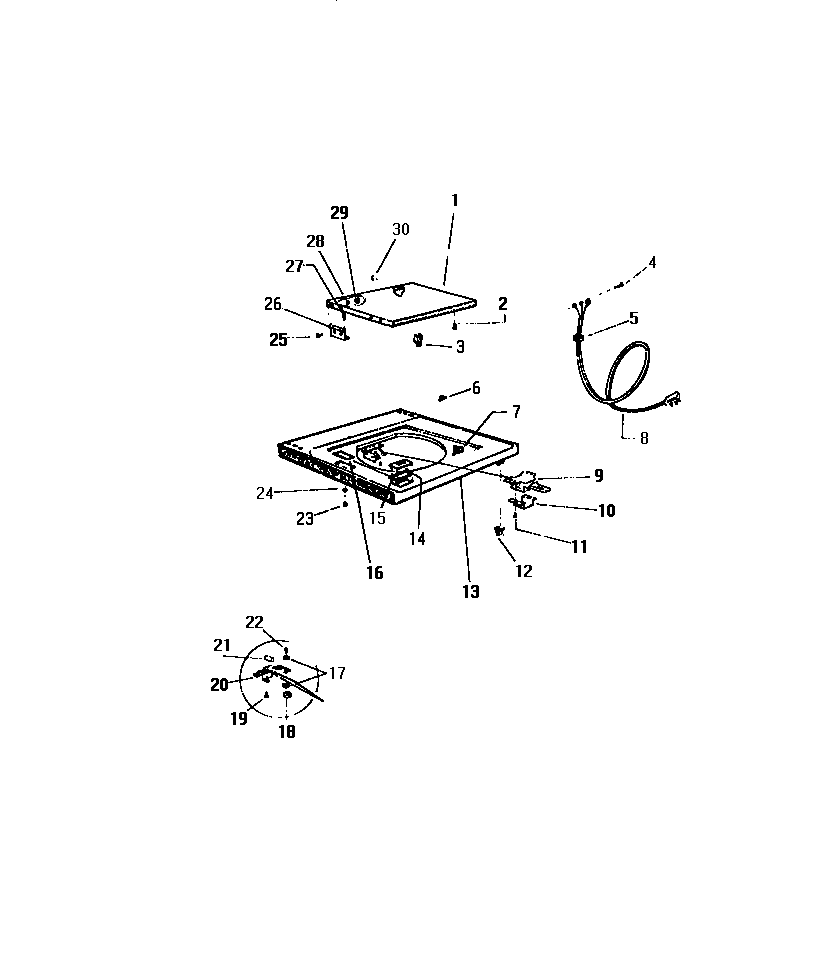

LA650JXV3 03 – TOP PANEL

LA650JXV3 03 – TOP PANEL

Written by

in

LA650JXV3 03 – TOP PANEL

Products

Position	Product
1	WCI Q623034
2	WCI Q13435
3	WCI Q143172
5	WCI Q63137
6	WCI Q503065
7	DISPENSER
8	CORD, SERVICE
9	WCI Q165346
10	SHIELD, LID LOCK
11	SCREW (4)
12	SPRING CATCH
13	WCI Q632931
14	WCI Q182993
15	WCI Q17972
16	WCI Q150472
26	HINGE (2 REQ.)
27	SCREW (2)
28	SPACER
29	NUT (2)
30	WCI Q501589
