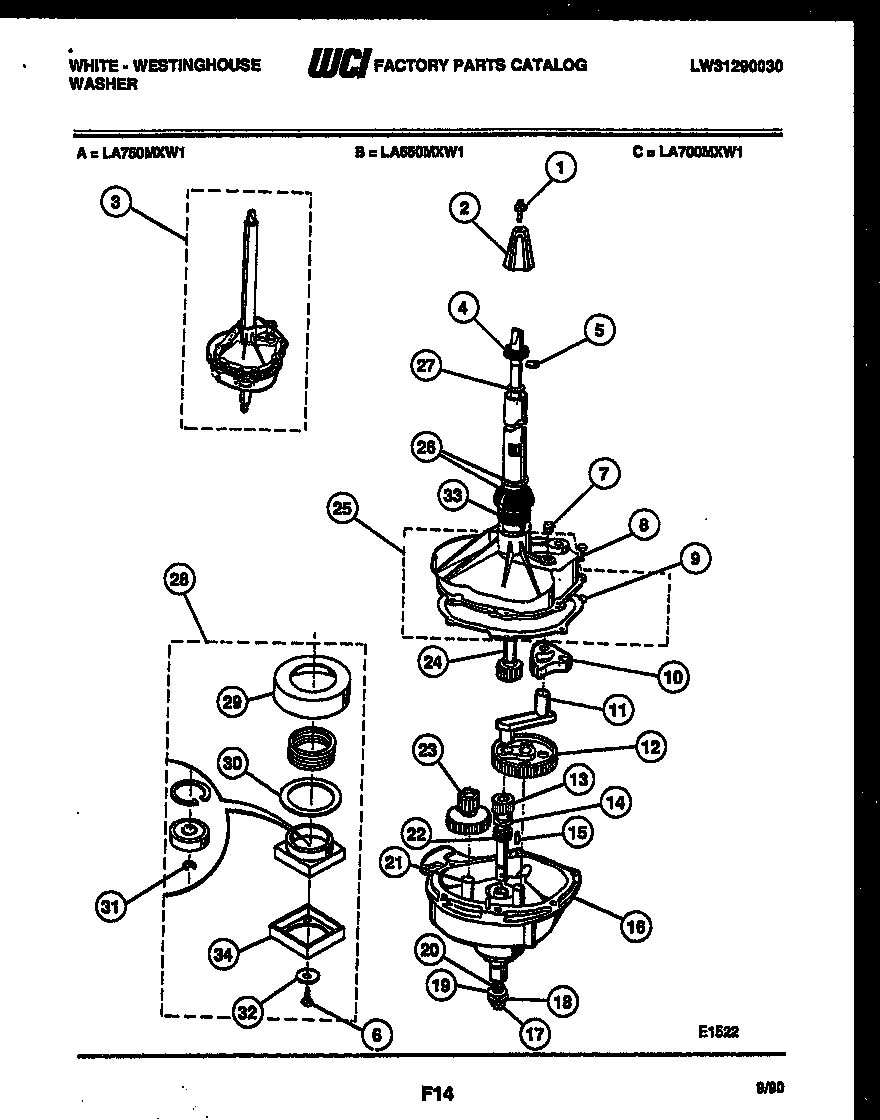

LA650MXD1 04 – TRANSMISSION PARTS

Products

Position	Product
1	WCI 3204461
2	134418700 Frigidaire Agitator Drive Hub
3	134735700 Frigidaire Transmission Assembly
4	5303161307 Frigidaire Dryer Seal Assembly
6	SCREW (2)
7	WCI 5303161224
8	SCREW (6)
9	GASKET
10	WCI 5308011268
11	WCI 5303161169
12	WCI 5308015496
13	WCI 5308014905
15	WCI 5303161227
16	HOUSING-LOWER
17	WCI 5303161223
18	WCI 5308002475
19	WCI 5303161226
20	5303161173 Frigidaire Seal Assembly
21	OIL-TRANSMISSION (1 QT)
22	WCI 5303161174
23	WCI 5303161175
24	WCI 3205151
25	WCI 5303205527
26	TUB SEAL ASSY.
27	THRUST WASHER
28	BEARING HOUSING
29	WCI 5303161182
30	WCI 5308057430
31	WCI 5308015536
32	RUBBER SPACER (2)
33	WCI 5303161231
34	WCI 5377009100
