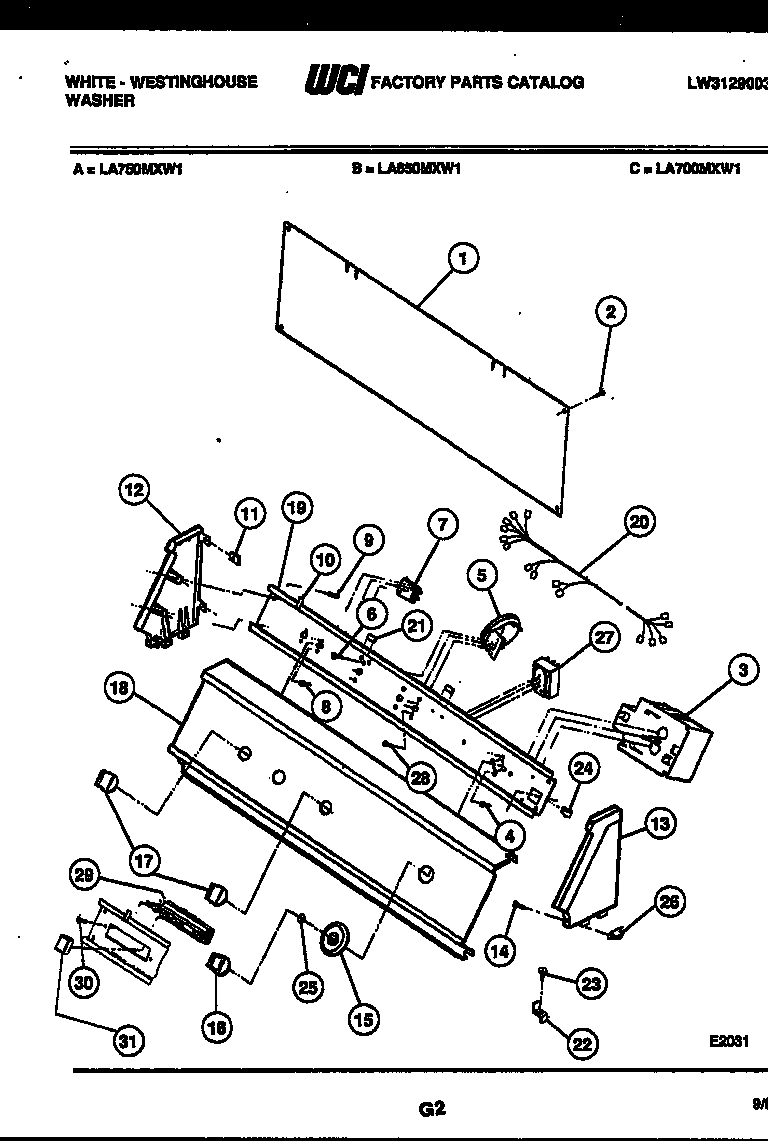

LA650MXW1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	WCI 5303211090
4	SCREW (2)
5	WCI 5303210131
6	131168200 Frigidaire Dryer Screw
7	WCI 5303210132
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	WCI 3205842
13	WCI 3205840
14	SCREW (2)
15	WCI 5303210133
16	WCI 5303210134
17	WCI 5300633722
18	WCI 5303211008
19	WCI 5303210137
20	WCI 5303212623
21	PAD (2)
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI F142313-000
25	Spacer,washer ,timer shaft
26	CLIP
27	WCI 5303211019
28	WCI 3161259
