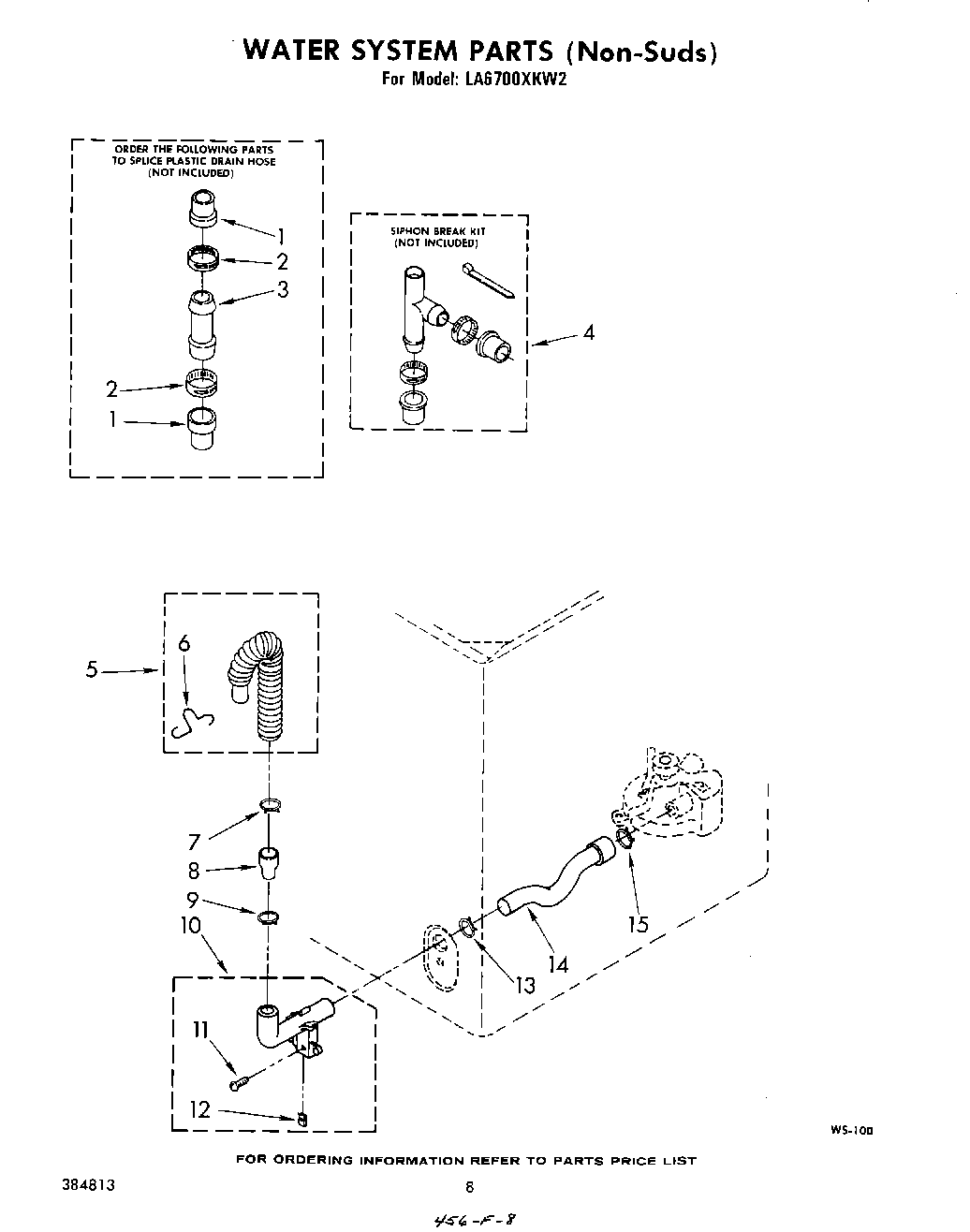

LA6700XKW2 07 – WATER SYSTEM

Products

Position	Product
1	285321 Whirlpool Sleeve
3	WP16272 Whirlpool Hose Coupling
4	285320 Whirlpool Washer Siphon Break Kit
5	285664 Whirlpool Drain Hose
5	285666 Whirlpool Drain Hose 10'
6	WPL 357247
7	WP616099 Whirlpool Clamp
8	WP384496 Whirlpool Hose Coupling
10	Connector, 90 o
11	Screw, Connector Mounting (10 x 3/4)
12	Clip
13	WP356138 Whirlpool Hose Clamp
14	Hose, Pump Discharge
15	WP285655 Whirlpool Hose Clamp
