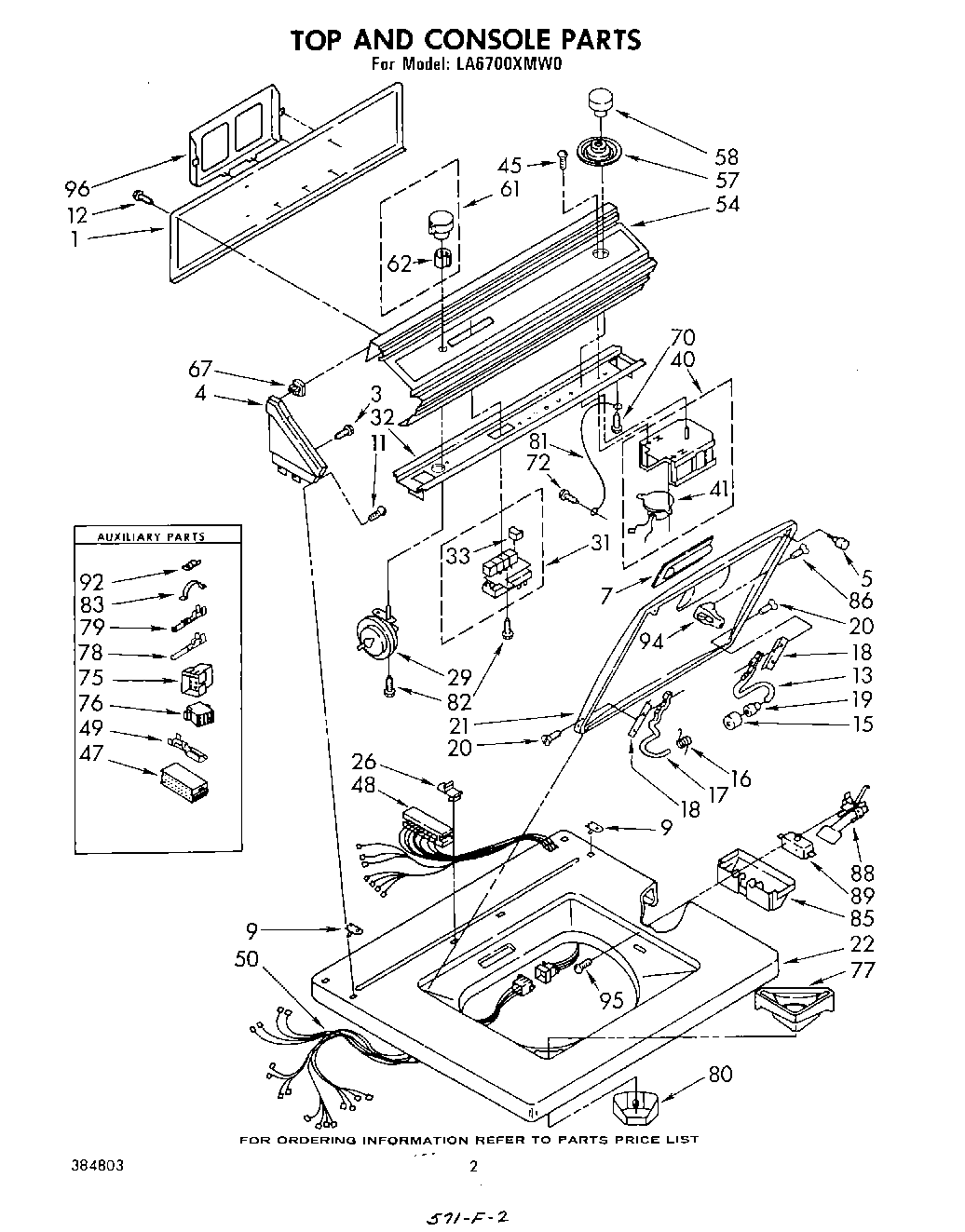

LA6700XMW0 02 – TOP AND CONSOLE

LA6700XMW0 02 – TOP AND CONSOLE

Written by

in

LA6700XMW0 02 – TOP AND CONSOLE

Products

Position	Product
	Wire, 25` Roll (Red 12 Ga.)
1	Panel, Rear Console
3	WPL 355326
4	Cap, End (L.H.)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (White)
7	Handle, Lid (Almond)
9	Nut, Push-In (2)
11	Screw, 8-18 x 1 (2)
12	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
21	Lid (Golden Harvest)
21	Lid (Almond)
22	Top (White)
22	Top (Golden Harvest)
22	Top (Almond)
26	Stop, Push-In Top
29	Switch, Water Level
31	Switch, Water Temperature
32	Bracket, Control
33	WPL 301008
40	WPL 385348
40	Timer, 60 Hz. (Alt.) (Non-Suds) (C.C.A.)
40	Motor, Timer 60 Hz.
40	WPL 660973
41	Use W/C.C.A. Timer
45	WP356418 Whirlpool Screw
47	Timer, Block Disconnect (White)
47	W10876590 Whirlpool Connector
48	WPL 359325
49	Terminal, Female
50	Harness, Base
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
61	WPL 690296
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	SCREW
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
77	WPL 352821
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	WPL 352827
81	3184020 Whirlpool Oven Wire
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
92	WP90016 Whirlpool Clip
94	Strike, Lid Switch
95	Screw & Washer, Lid Switch (2)
96	Rack, Literature
