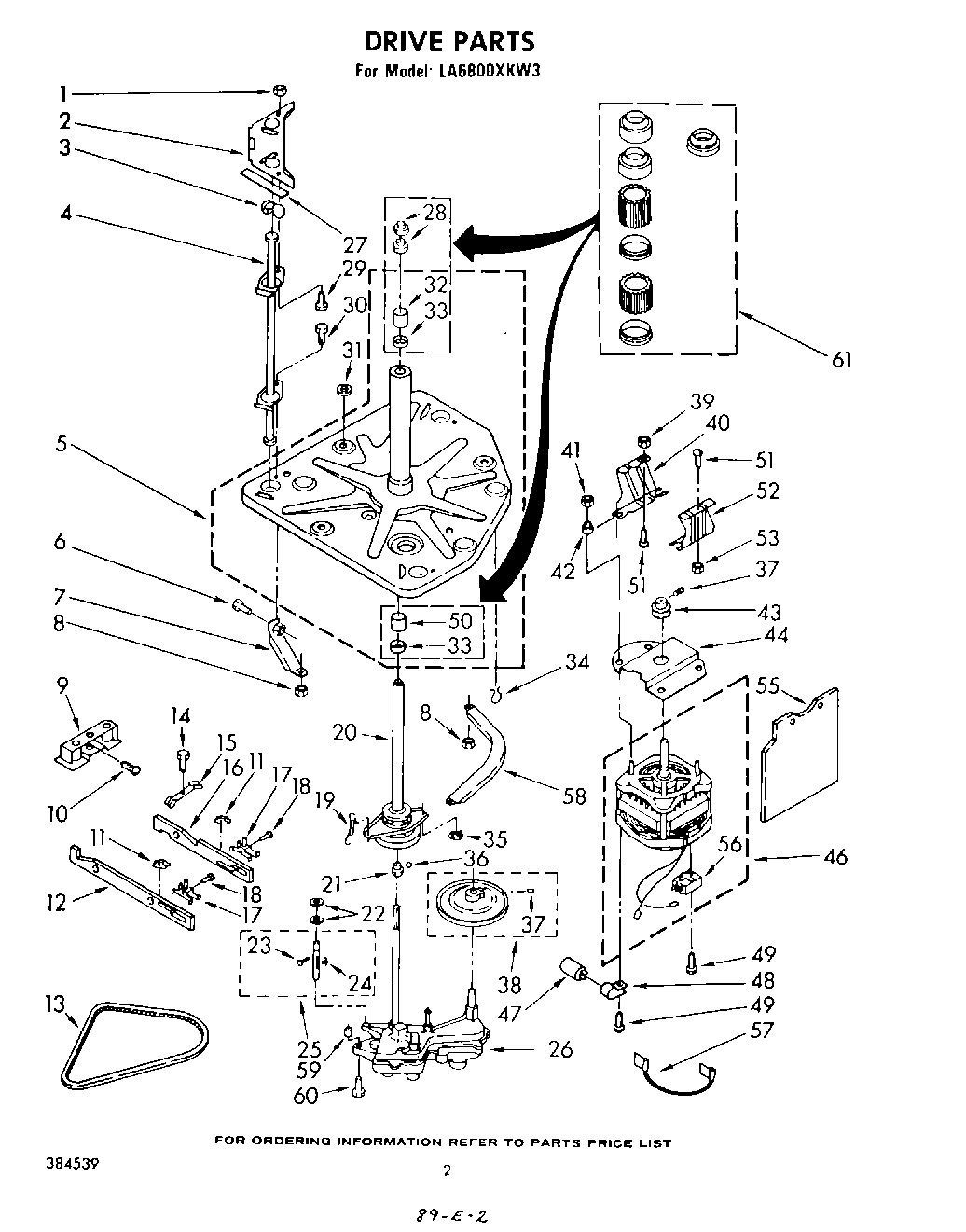

LA6800XKW3 02 – DRIVE

Products

Position	Product
1	Pump Assembly
1	90984 Whirlpool Nut
2	WP273556 Whirlpool Screw
2	Cover, Gusset (L.R.)
2	Cover, Gusset (L.F.)
3	Ball, Suspension (6)
3	Sleeve
4	Spring, Toggle
4	Rod, Suspension (3)
5	Baseplate & Centerpost
5	Pulley
6	Lever, Valve
6	WP3400516 Whirlpool Screw
7	Rod, Connecting
7	Brace, Baseplate
8	Bearing Block Assembly
8	Nut, 5/16-24
9	Magnet
9	Wick, Oil
10	386011 Whirlpool Screw
10	Screw, Taper End
11	Guide, Cam Bar
11	Screw, Pump To Gearcase
12	Cam, Bar Spin
13	WP95405 Whirlpool Belt
14	Screw, 1/4-28 x 1/2
15	Spring, Brake
16	Cam, Agitator & Pump
17	Plunger
18	Rivet
19	Spring, Brake Yoke
20	Basket Drive & Brake (For Further Breakdown Refer To Page 11)
21	Support, Spin Tube
22	WP120393 Whirlpool Washer Assembly
23	Pin, Gear Fork Shaft
24	Roller, Gear Fork Shaft
25	Shaft, Basket Clutch
26	Gearcase (Complete)
27	Pad, Gusset Cover (4)
28	WP8577376 Whirlpool Seal
29	Bolt, 5/16 x 5/8 (2)
29	Bolt, 5/16 x 1 (3)
29	Bolt, Snubber (1)
30	Bolt, 5/16-24
31	Gasket, Tub (7)
32	WP8546455 Whirlpool Bearing
33	W11095997 Whirlpool Seal
34	16515 Whirlpool Clip
35	Retainer, Brake Yoke
36	Ball
37	Setscrew, 5/16-18 x 1/2
38	Pulley, Main Drive
39	WP358160 Whirlpool Nut
40	Bracket, Motor Mounting
41	Nut (4)
42	Grommet, Motor Bracket (4)
43	Pulley, Motor
44	Shield, Motor (Upper)
46	Motor (Emerson) 60 Hz.
46	Motor, 60 Hz. (Alt.) (G
47	CAPACITOR
48	357030 Whirlpool Clamp
49	WP3390631 Whirlpool Screw
50	WPL 354195
51	WPL 98537
52	WPL 93549
53	WPL 95721
55	WPL 359719
56	WPL 359642
56	WPL 362738
57	WPL 370950
58	WPL 351500
58	WPL 351499
59	WPL 16062
60	WPL 90877
61	WPL 285134
