LA6800XKW3 08 – MISCELLANEOUS , LITERATURE AND OPTIONAL

Products

PositionProduct

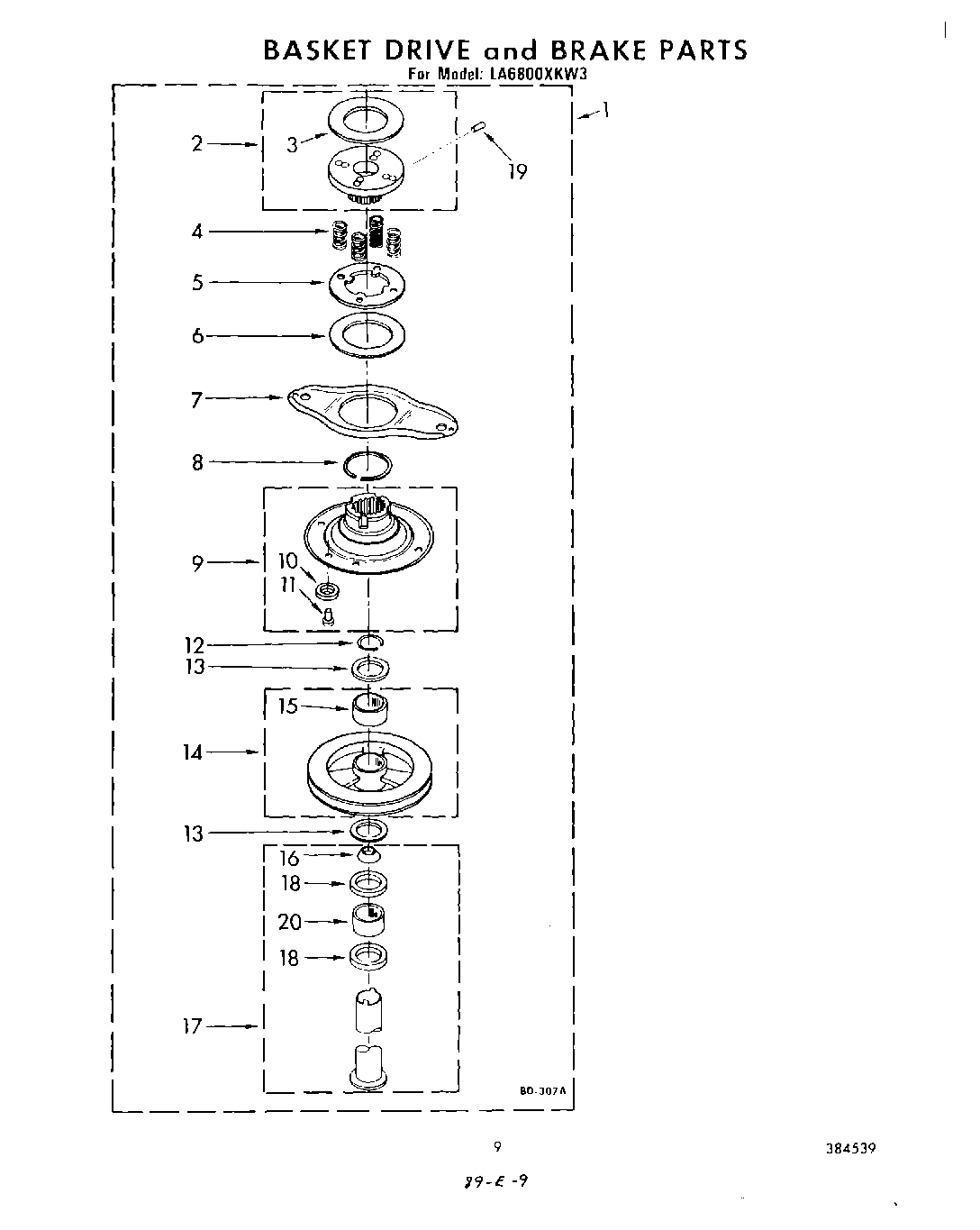

1Basket Drive & Brake (For Further Breakdown Refer To Page 11)
2Drum, Brake (Upper)
3Lining, Basket Brake (Upper)
4Spring, Basket Drive (Green) (4)
5Drum, Brake (Lower)
6Lining, Basket Brake (Lower)
7Yoke, Brake
8Ring, Snap
9Plate & Lining, Basket Drive
10Lining, Basket Drive (Set of 3)
11Eyelet (3)
12WPW10083200 Whirlpool Wire Ring
13Washer, Thrust (2)
14Pulley, Basket Drive
15Bearing, Drive Pulley
16WP91939 Whirlpool Shaft Seal
17Drive Tube & Bearing, Basket
18WP356427 Whirlpool Shaft Seal
19Set Screw, 5/16-18X 13/16
20Spacer, Drive Tube
