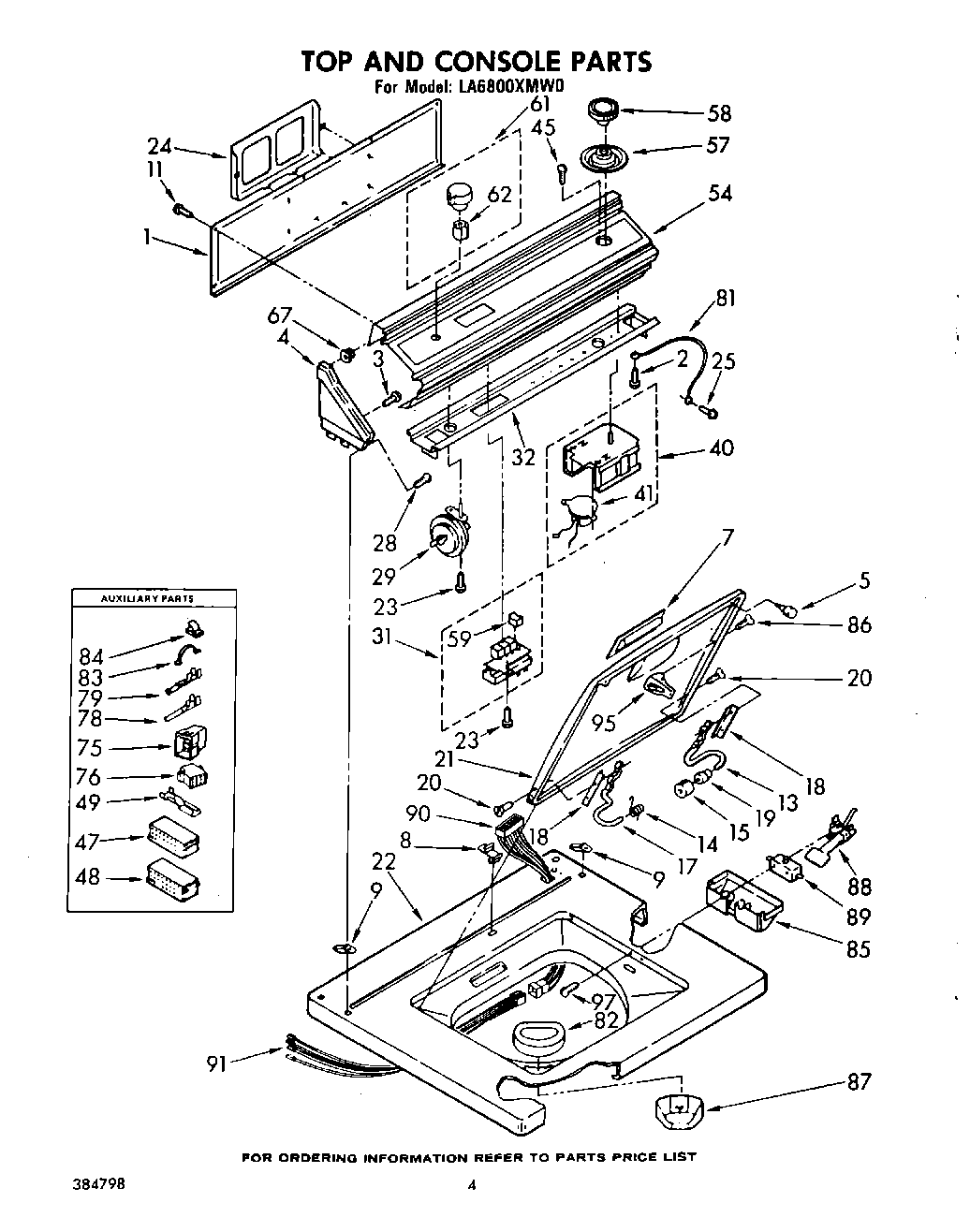

LA6800XMW0 04 – TOP AND CONSOLE

LA6800XMW0 04 – TOP AND CONSOLE

Written by

in

LA6800XMW0 04 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End L.H. (Toast)
4Cap, End L.H. (Platinum)
4Cap, End (L.H.) (Almond)
5WP9724509 Whirlpool Bumper
7Handle, Lid (White)
7Handle, Lid (Almond)
7Handle, Lid (Toast)
7Handle, Lid (Golden Harvest)
7Handle, Lid (Platinum)
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (Almond)
21Lid (White)
21Lid (Golden Harvest)
21Lid (Toast)
21Lid (Platinum)
22Top (Platinum)
22Top (White)
22Top (Almond)
22Top (Golden Harvest)
22Top (Toast)
23WP90767 Whirlpool Screw
24Rack, Literature
25WP3351614 Whirlpool Screw
28Screw, 8-18 x 1 (2)
29Switch, Water Level
31Switch, Water Temperature
32Bracket, Control
40WPL 385341
41Use W/C.C.A. Timer
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
48Timer, Block Disconnect (White)
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
59WPL 301008
61WPL 690301
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
813184020 Whirlpool Oven Wire
82WPL 352821
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
87WPL 352827
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
90WPL 359325
91Harness, Cabinet
95Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
