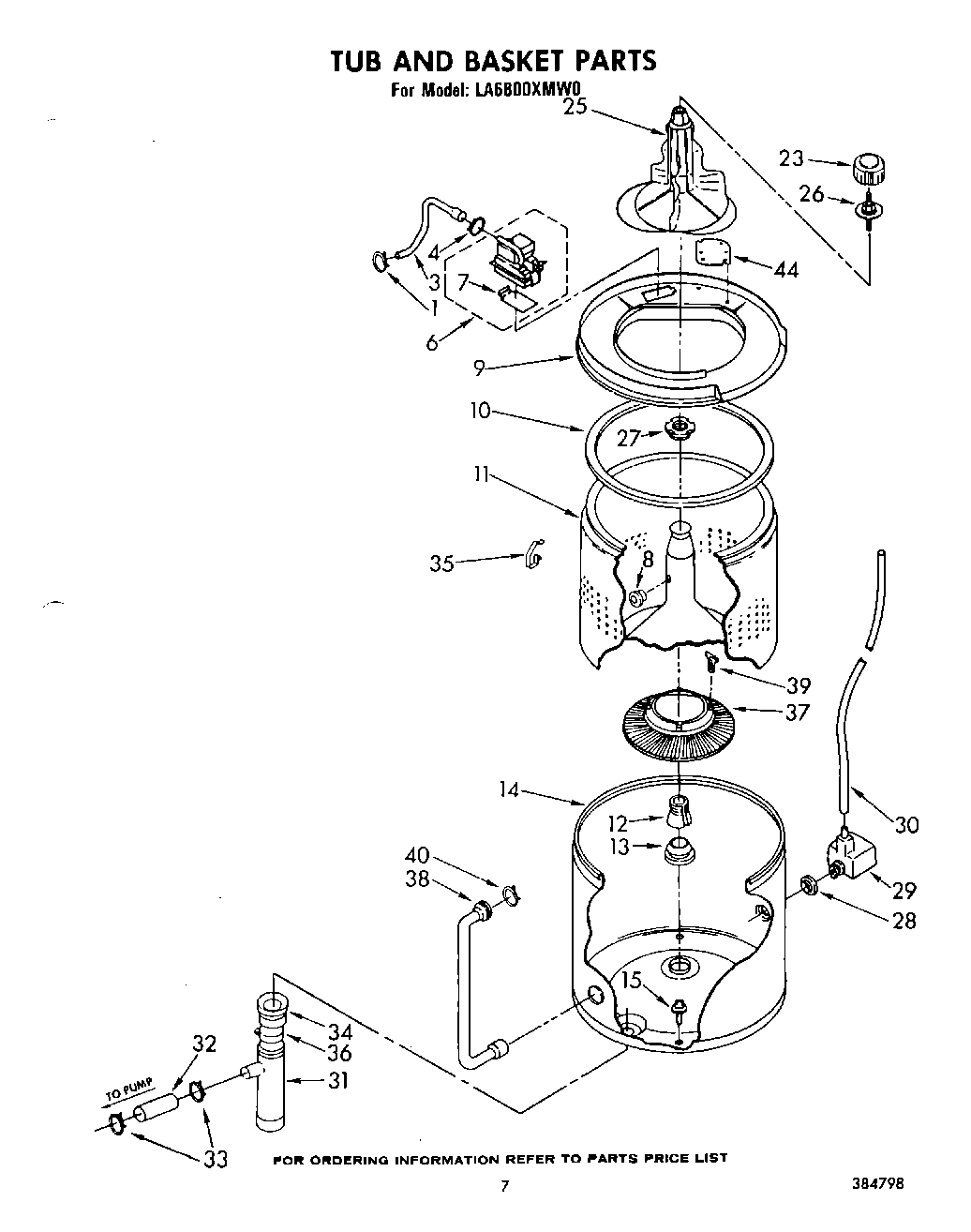

LA6800XMW0 06 – TUB AND BASKETadmin2025-04-26T12:40:21+00:00LA6800XMW0 06 – TUB AND BASKET
Products
| Position | Product |
|---|
| 1 | WP596669 Whirlpool Hose Clamp |
| 3 | Hose, Water Inlet |
| 6 | Inlet, Water |
| 7 | Flapper |
| 8 | Stopper (2) |
| 9 | Ring & Filter, Tub (Includes Illus. 22) |
| 10 | Seal, Tub Ring |
| 11 | Basket |
| 12 | WP389140 Whirlpool Drive Block or Bell |
| 13 | W10814296 Whirlpool Washer Center Post Seal Gasket |
| 14 | Tub |
| 15 | Screw & Washer, Tub (4) |
| 23 | Cap, Agitator |
| 25 | Agitator |
| 26 | Stud, Agitator Shaft |
| 27 | WP21366 Whirlpool Spanner Nut |
| 28 | Seal |
| 29 | Air Dome Assembly |
| 30 | WP353244 Whirlpool Hose |
| 31 | Manifold |
| 32 | Hose |
| 33 | WP285655 Whirlpool Hose Clamp |
| 34 | Hose, Tub Outlet |
| 35 | Clip, Tub Ring (4) |
| 36 | Clip, Hose |
| 37 | Filter, Element (Includes Illus. 39) |
| 38 | Hose, Bleach Dispenser |
| 39 | Clip, Filter (3) |
| 44 | Plate, Snubber |
