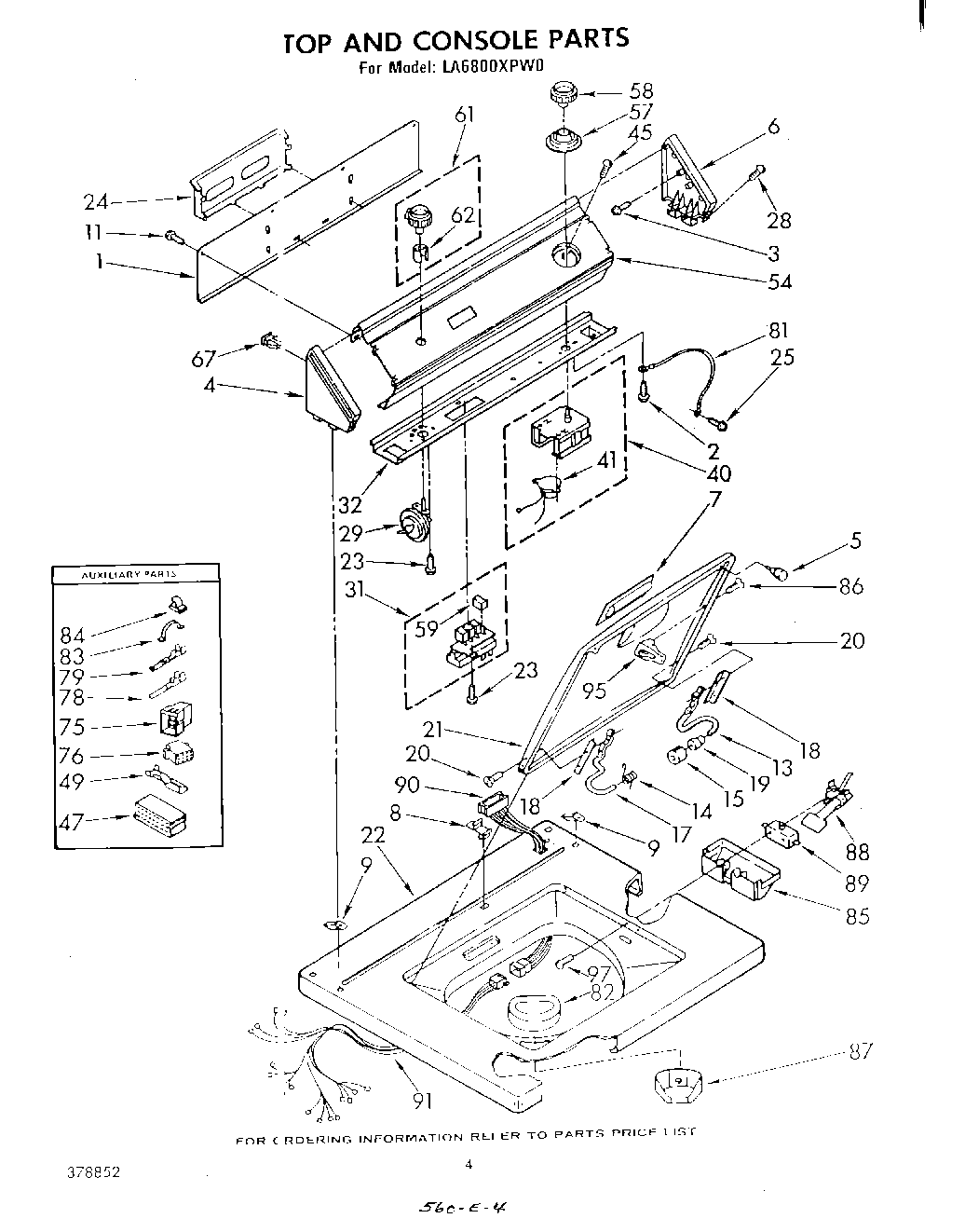

LA6800XPW0 04 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	WP9724509 Whirlpool Bumper
6	WPL 63795
7	Handle, Lid (Platinum)
7	Handle, Lid (White)
7	Handle, Lid (Almond)
7	Handle, Lid (Golden Harvest)
7	Handle, Lid (Toast)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Platinum)
21	Lid (Golden Harvest)
21	Lid (Almond)
21	Lid (White)
21	Lid (Toast)
22	Top (Platinum)
22	Top (Almond)
22	Top (Golden Harvest)
22	Top (White)
22	Top (Toast)
23	WP90767 Whirlpool Screw
24	Rack, Literature
25	WP3351614 Whirlpool Screw
28	WPL 64211
29	Switch, Water Level
31	Switch, Water Temperature
32	Bracket, Control
40	Timer, 60 Hz.
41	Motor, Timer
41	Motor, Timer
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
49	Terminal, Female
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
59	WPL 301008
61	Lid (Golden Harvest)
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	3184020 Whirlpool Oven Wire
82	WPL 352821
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
87	WPL 352827
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
90	Harness, Console
91	Harness, Cabinet
95	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
