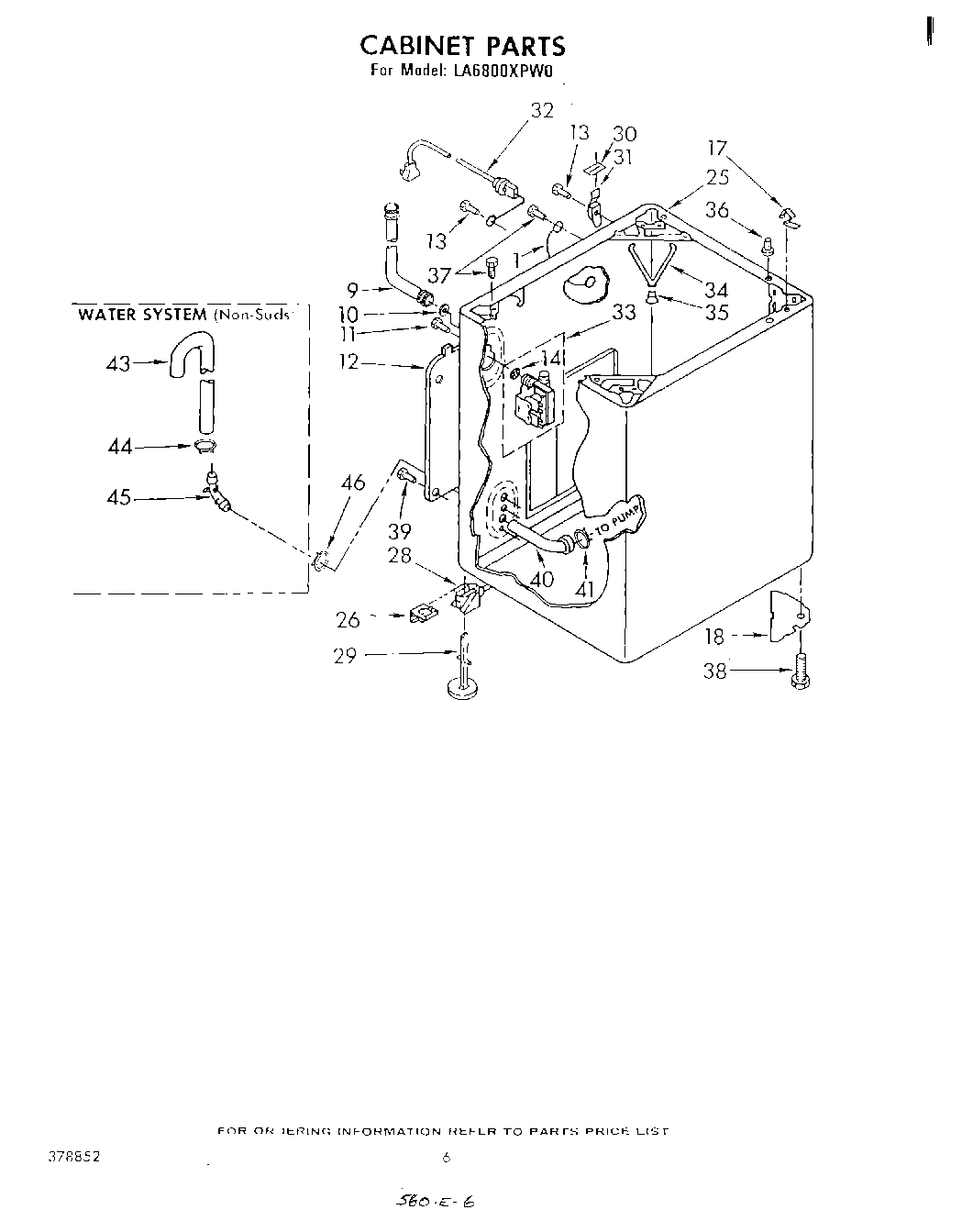

LA6800XPW0 05 – CABINET

LA6800XPW0 05 – CABINET

Written by

in

LA6800XPW0 05 – CABINET

Products

PositionProduct
1WPL 364089
9WP89503 Whirlpool Washer Fill Hose
10WP16123 Whirlpool Washer
11WP3351614 Whirlpool Screw
12Panel, Rear
13SCREW
14WP96160 Whirlpool Washer Inlet Valve Screen
17WP18776 Whirlpool Lock
18Plate, Gusset
25Cabinet (Toast)
25Cabinet (Almond)
25Cabinet
25Cabinet (Golden Harvest)
25Cabinet (Platinum)
26WP359364 Whirlpool Clip
28Link, Leveling
29WP358594 Whirlpool Leveling Feet
3018849 Whirlpool Pad
31Hinge, R.H.
31Hinge, L.H.
32Cord, Power (60 Hz.)
33Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
33Valve, Mixing (Alt.)
33Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
34Spring, Snubber
35Pad, Snubber
36Locator, Top
38WP367594 Whirlpool Leveling Feet
40Hose, Pump Discharge
41WP285655 Whirlpool Hose Clamp
43WP96743 Whirlpool Hose
44WP356138 Whirlpool Hose Clamp
45Connector, Hose
