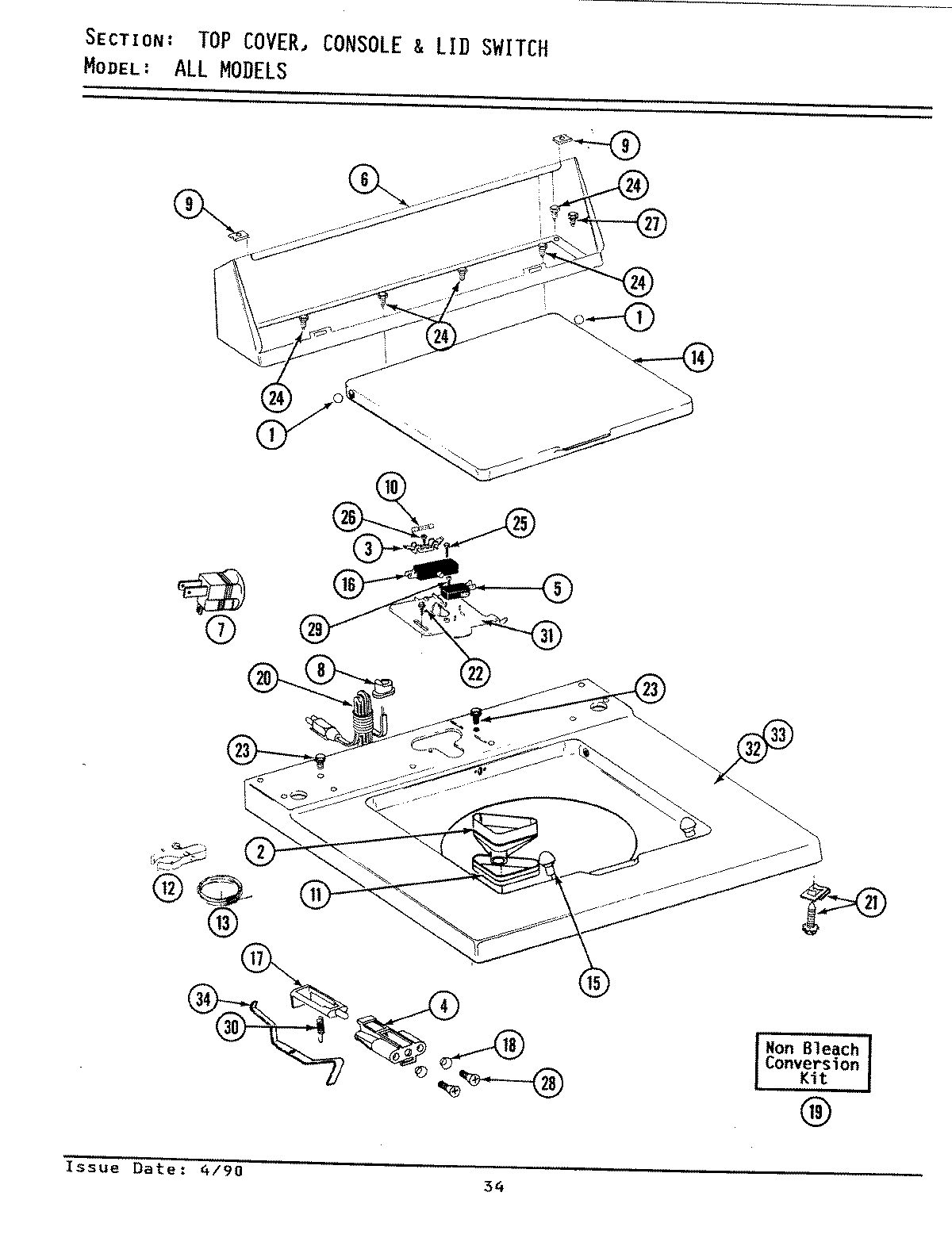

LA6910 07 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	WP211726 Whirlpool Ball Assembly
2	MAY 215578
3	MAY 207167
4	MAY 216256
4	MAY 214279
5	WP207166 Whirlpool CH Switch
6	MAY 205635L
7	MAY Y201808
8	GROMMET
9	MAY 215075
10	MAY 207168
11	MAY 214436
12	MAY 301548
13	WP311155 Whirlpool Wire Assembly
14	MAY 212073L
15	WP212716 Whirlpool Lid Bumper
16	W10820036 Whirlpool Door Switch Kit
17	MAY 208591
17	MAY 215700
18	MAY 211500
19	MAY 205997
20	MAY 204590
21	MAY 204445
22	SCREW
23	MAY 210186
24	WP90767 Whirlpool Screw
25	MAY 213501
26	MAY 215705
27	MAY Y313559
28	MAY 910182
29	MAY 912012
30	WP213720 Whirlpool Spring Assembly
31	MAY Y215699
32	MAY 207170L
33	MAY 207172L
33	MAY 207172
34	MAY 215704
